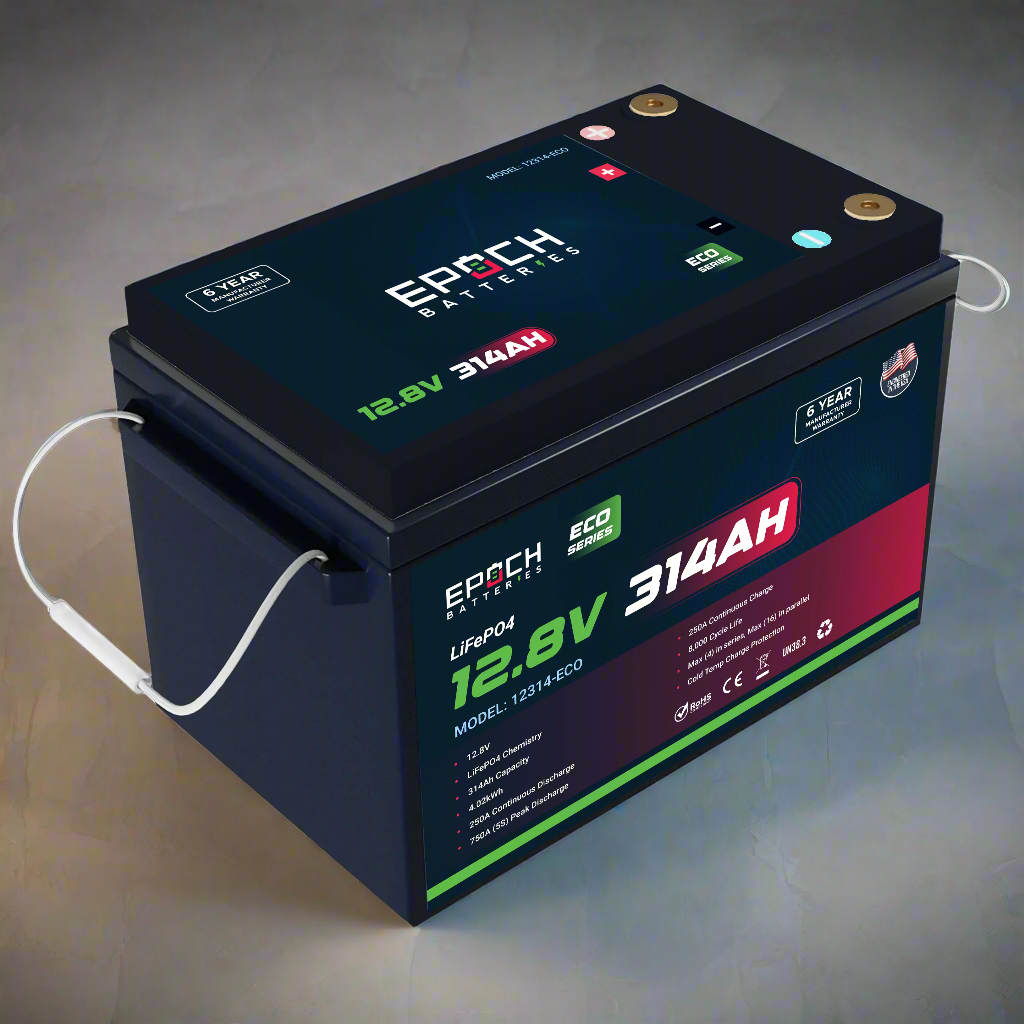

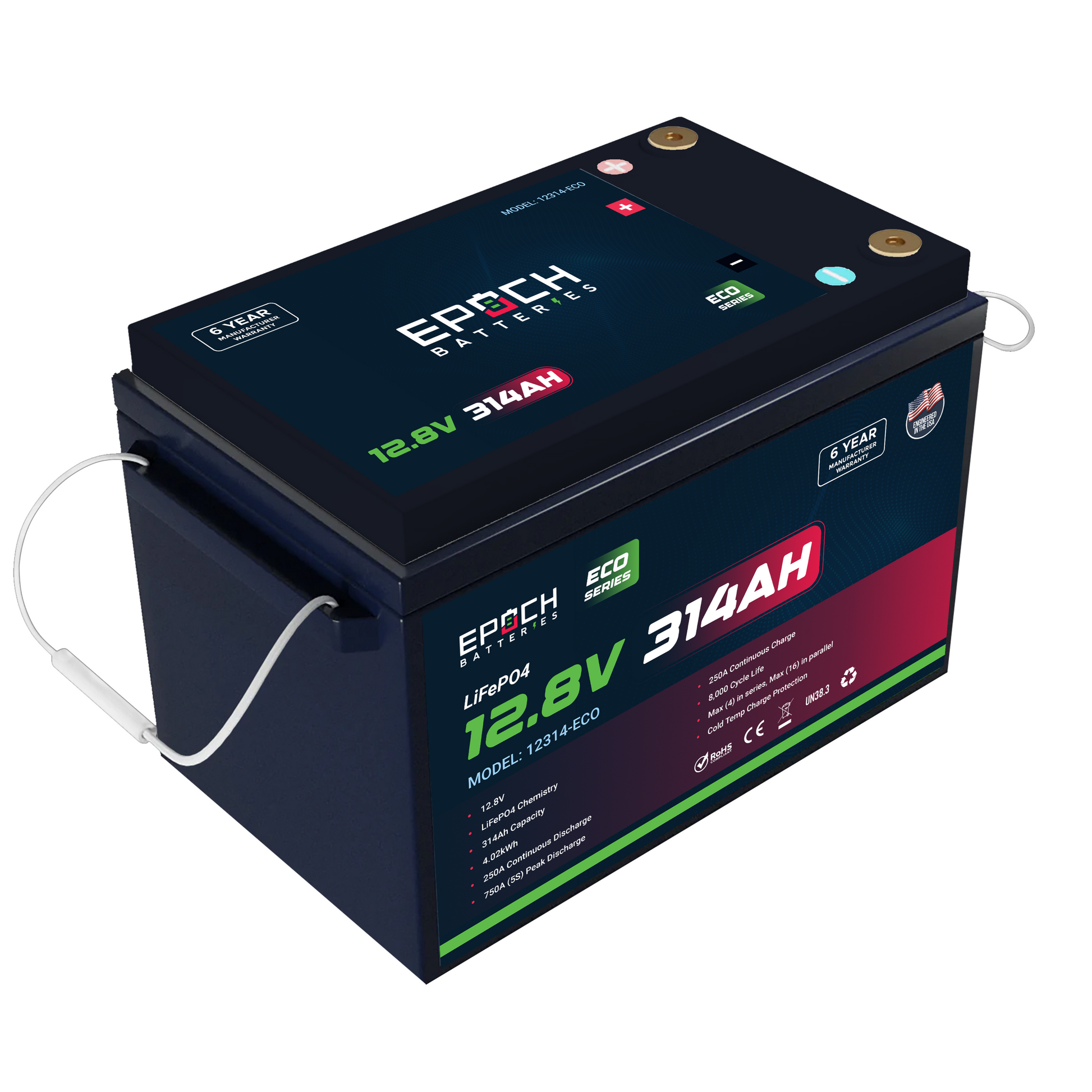

12V 314Ah Eco Series LiFePO4 Battery by Epoch Batteries

12V 314Ah Eco Series LiFePO4 Battery by Epoch Batteries

$699.00
$699.00
Sale Sold out

Enjoy a light weight design, advanced BMS, and a maintenance free experience at a price you'll love. If the expense is the only thing holding you back from a Lithium based van electrical system, look no further than Epoch's Eco Series batteries. Although you sacrifice the bells and whistles that come with smart batteries, you are left with a basic battery that offers reliable power at a wallet friendly price!

Details:

  • LiFePO4 Chemistry - Deep Cycle Battery
  • L15.5" x W7.63" x H10.5"
  • Low-Temperature cut-off (Charge Protection)
  • Built-in Smart Battery Management System (BMS)
  • Advanced BMS system with 20+ safety features built in
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (16) in Parallel up to 64.3 kWh
  • 8,000+ Cycle life & Maintenance-free
  • 6 Year Manufacturer Warranty

Specifications:

Configuration:

  • Cell Configuration: 4S1P
  • Chemistry: LiFePO4

Current:

  • Ah Capacity: 314Ah
  • Max Configuration Discharge Amps: 250A
  • Max Charge Current Amps: 250A
  • Max Discharge Peak Current Amps: 750A (5s)
  • Series | Parallel: Max (4) in Series, Max (16) in Parallel

Voltage:

  • Voltage 12.8V
  • Max Charge Voltage 14.6V
  • Operating Voltage Range: 10.0-14.6V

Temperature:

  • Charge Temp Range:  0°C (32°F) / 55°C (131°F)
  • Discharge Temp Range: - 20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F)

Recommended Charge Settings:

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.



Data Sheet
