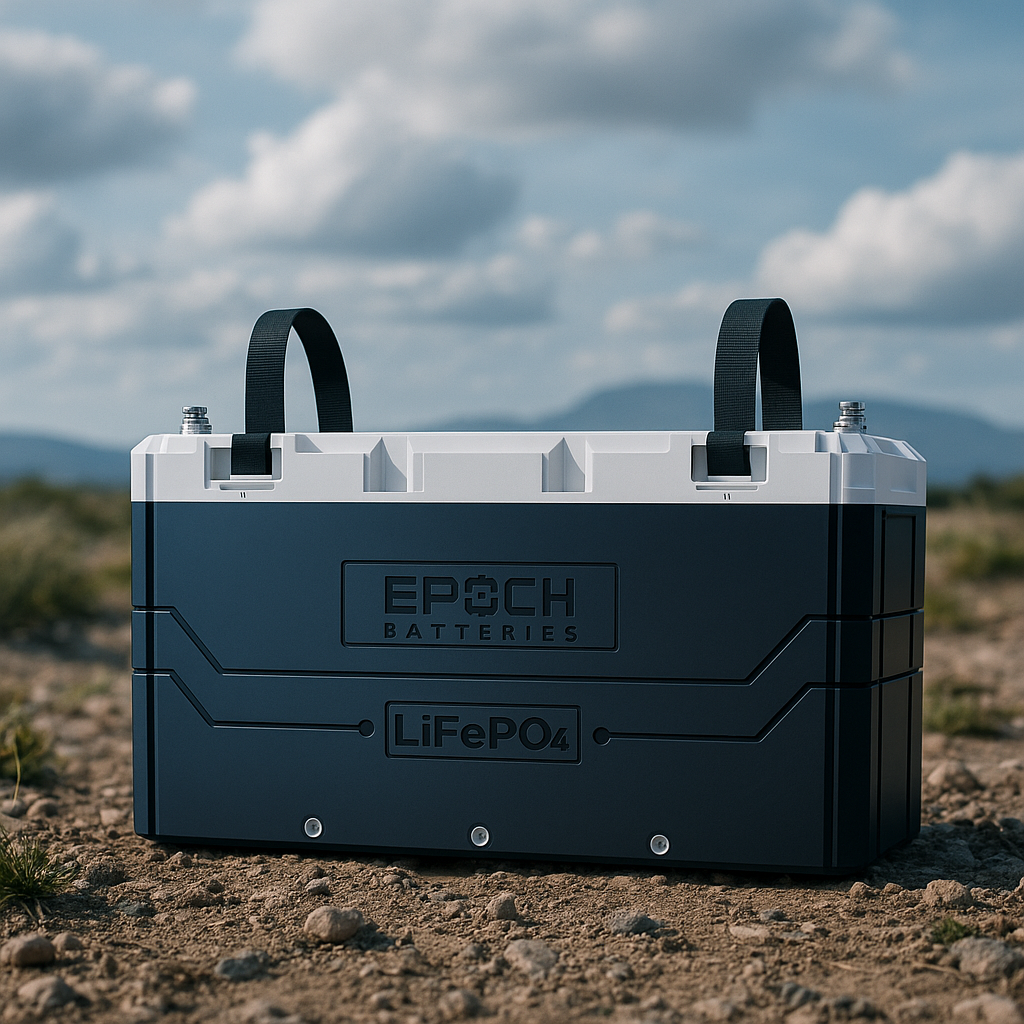

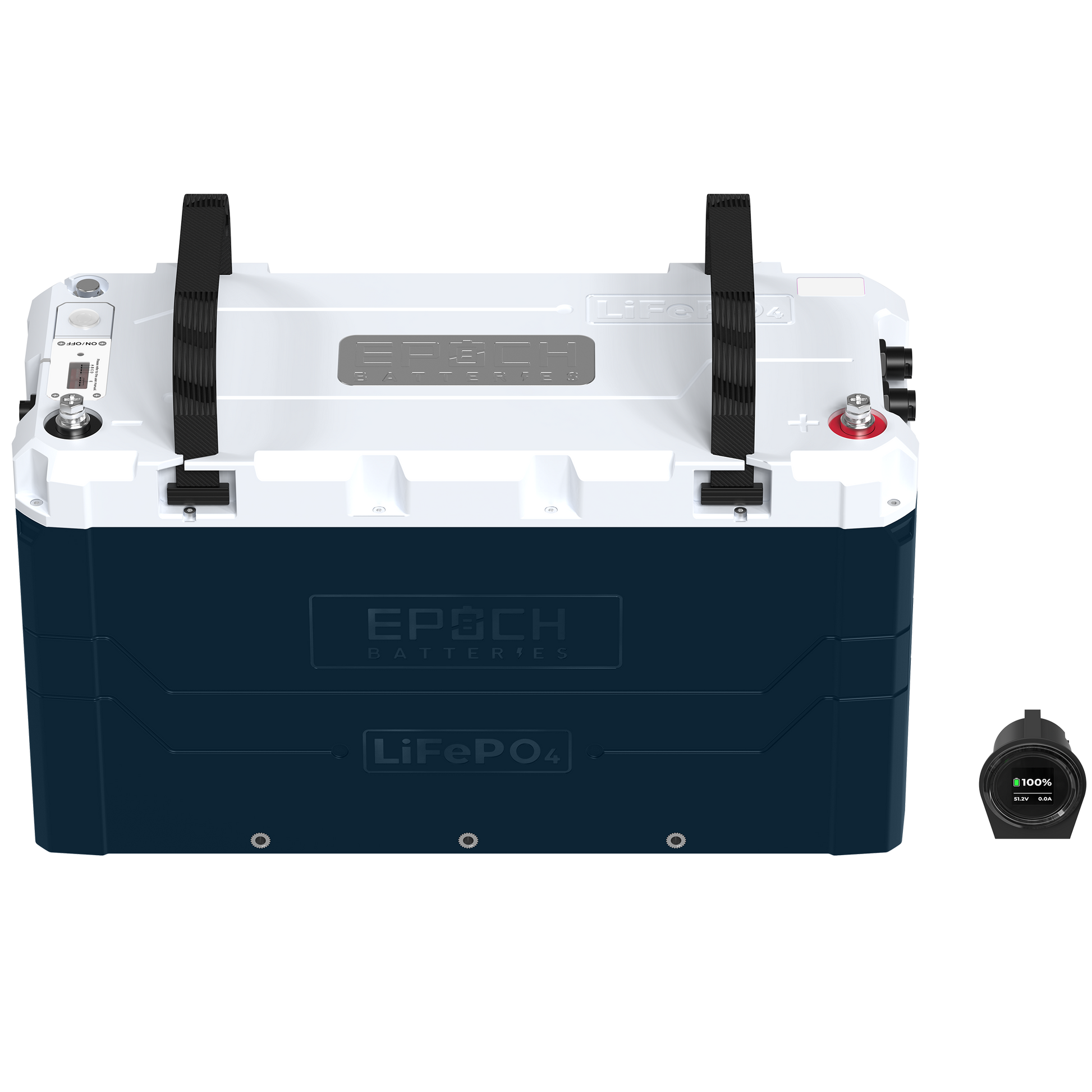

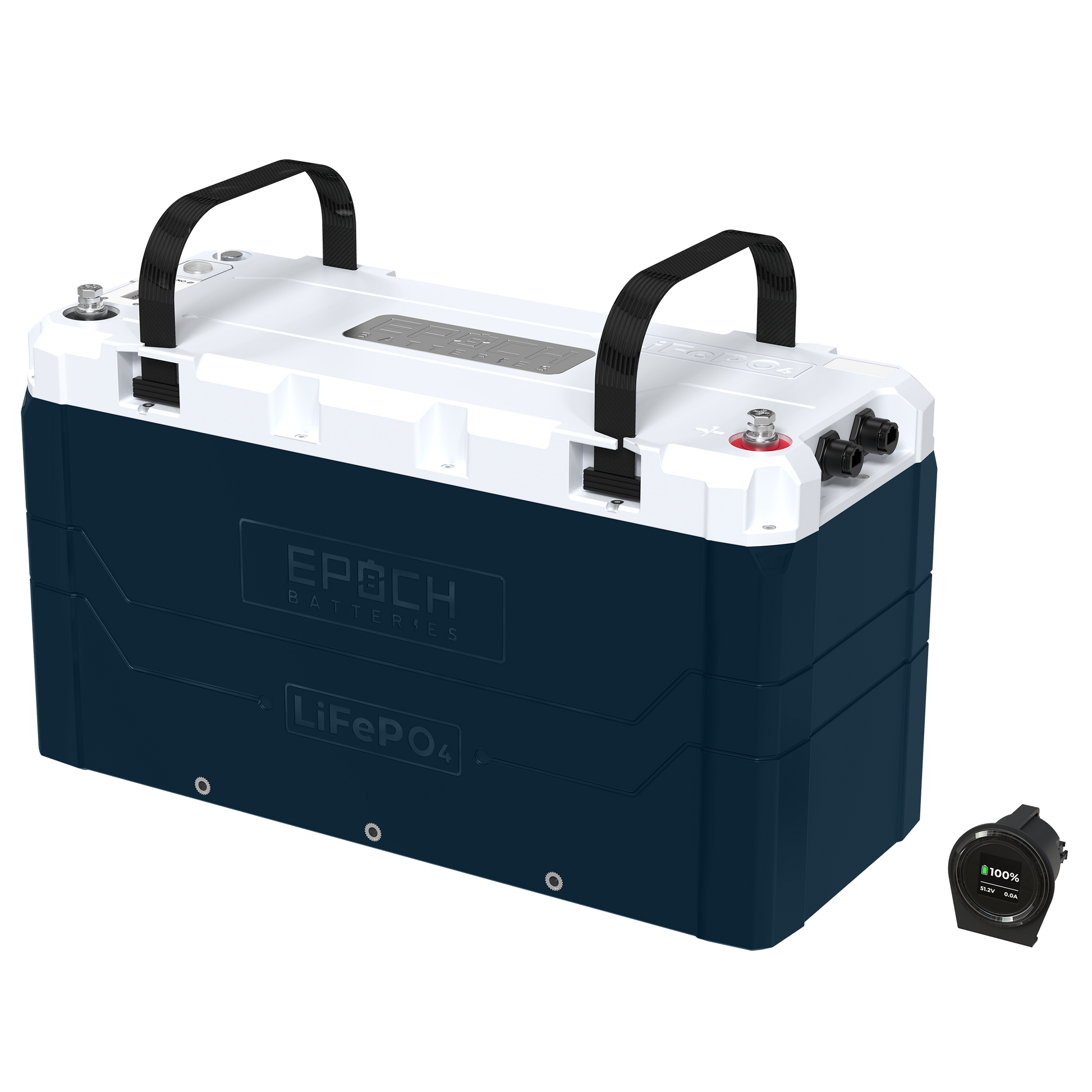

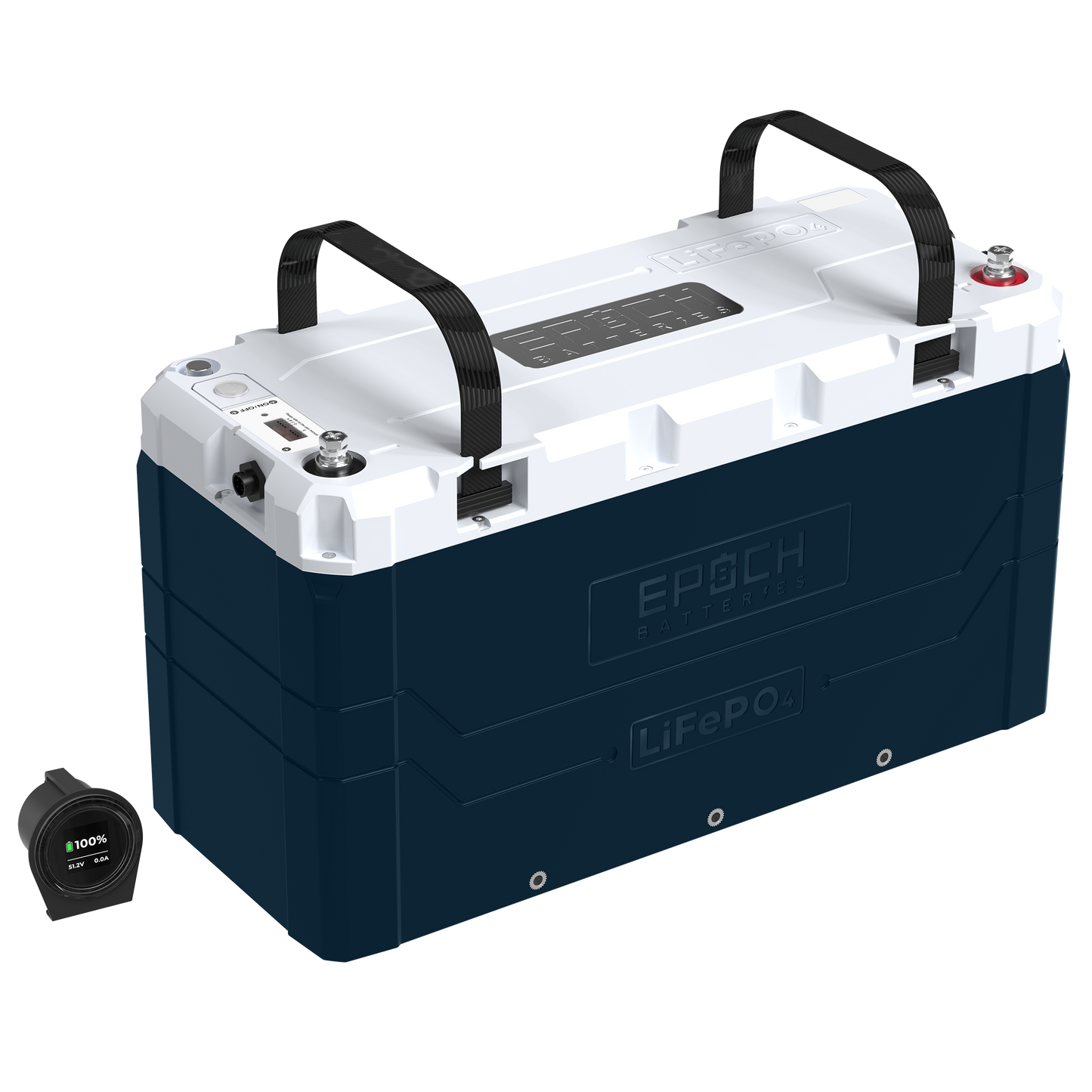

12V 460Ah V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery

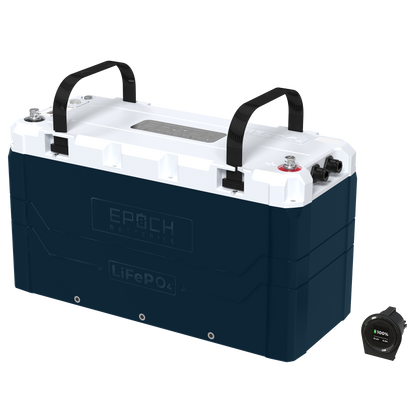

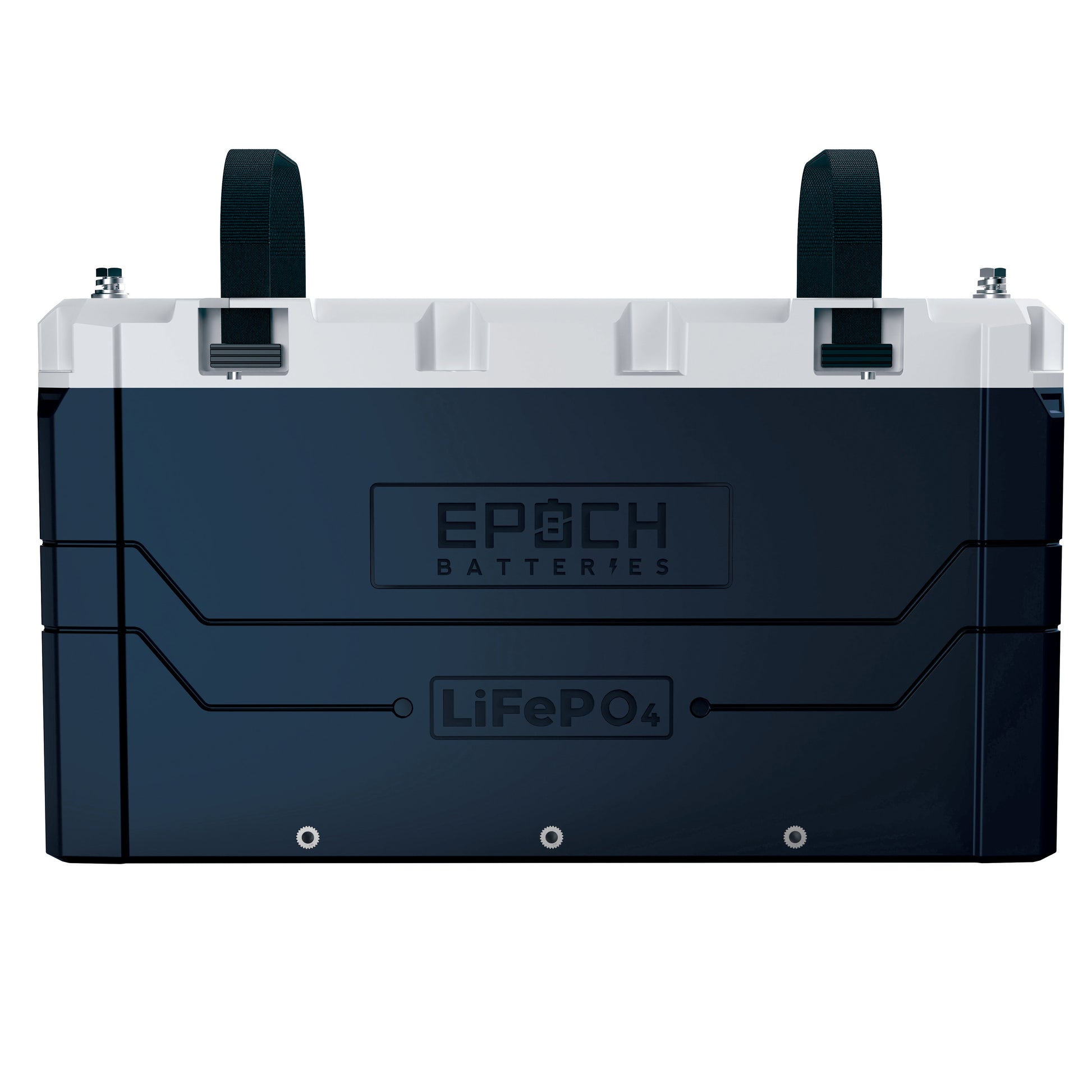

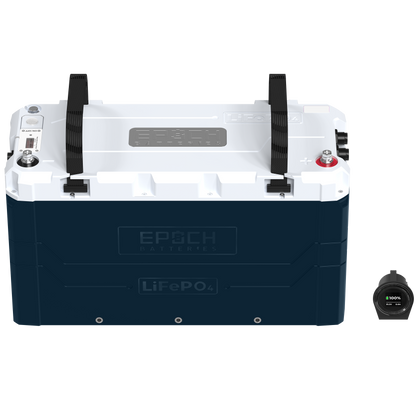

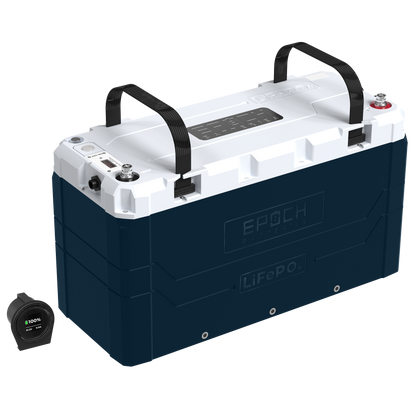

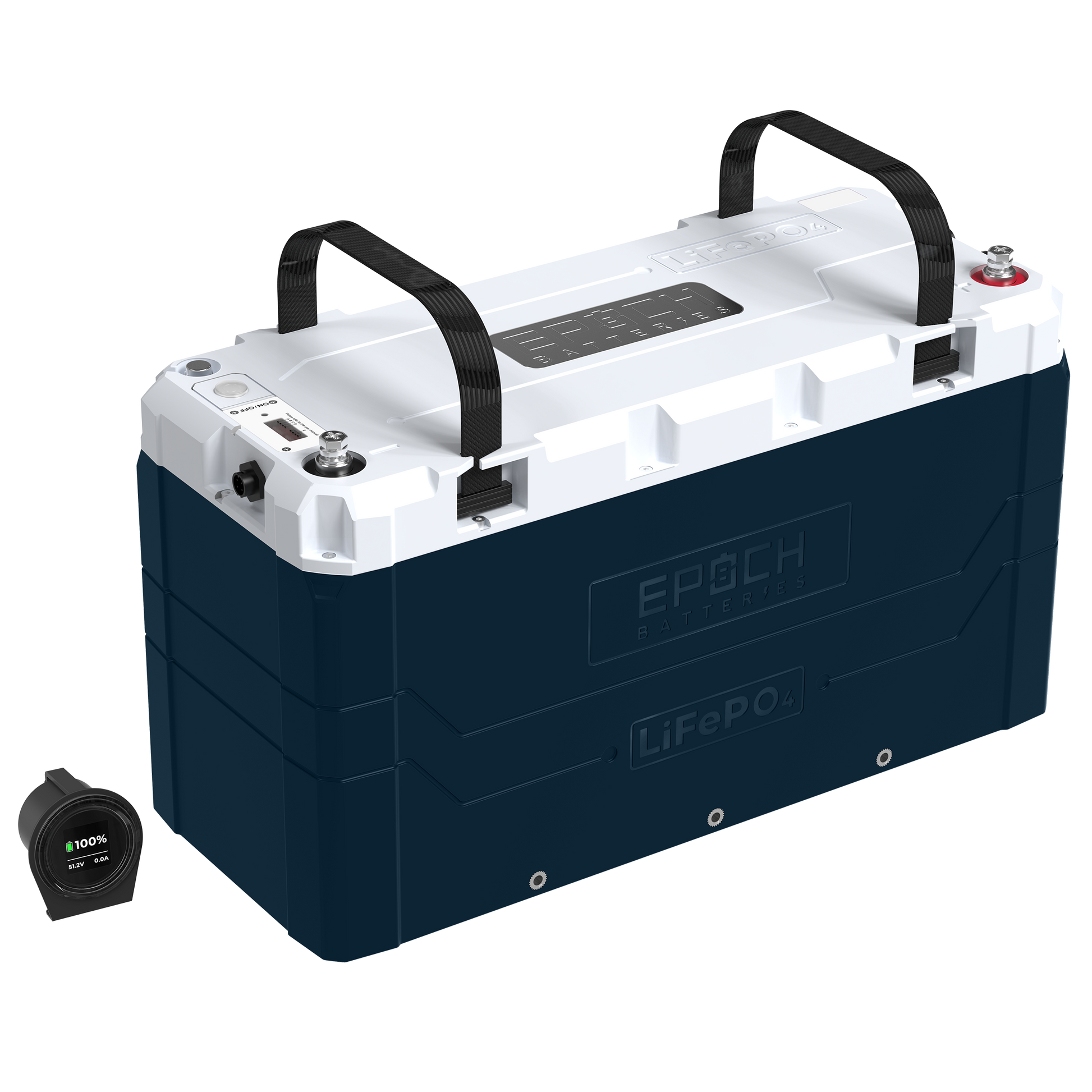

12V 460Ah V2 Elite Series LiFePO₄ Battery

Heated • Bluetooth • Victron Communications

The V2 Elite Series 12V 460Ah LiFePO₄ Battery is engineered for serious off-grid power systems that demand reliability, scalability, and seamless Victron integration. Built with upgraded internal components, advanced BMS intelligence, and refined Victron communications, the V2 Elite is designed to support everything from high-end overland builds to large-scale energy storage systems.

With parallel capability up to 16 batteries, internal heating for cold-weather charging, and Bluetooth monitoring with over-the-air firmware updates, this battery delivers enterprise-level performance in a rugged, waterproof package.

---

What’s New in V2 Elite

• Improved Victron Communications: Refined high-voltage alarm handling for accurate reporting and smoother system control with Victron GX devices.
• Expanded Scalability: Supports up to 16 batteries in parallel (previously 4) for larger energy storage systems.
• Upgraded Internal Components: UL60691 certified internal fuse and cells meeting UL1642, UL1973, U9540A, IEC 62619:2022, and RoHS standards.
• Enhanced Bluetooth App Experience: Monitor all batteries from a single dashboard with detailed SOC, voltage, current, and alarm data.
• BMS Over-the-Air Firmware Updates: Remote firmware updates to keep your system running the latest software.

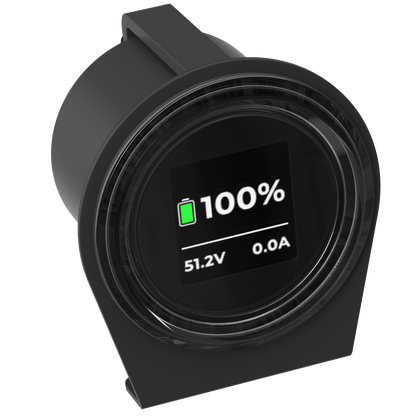

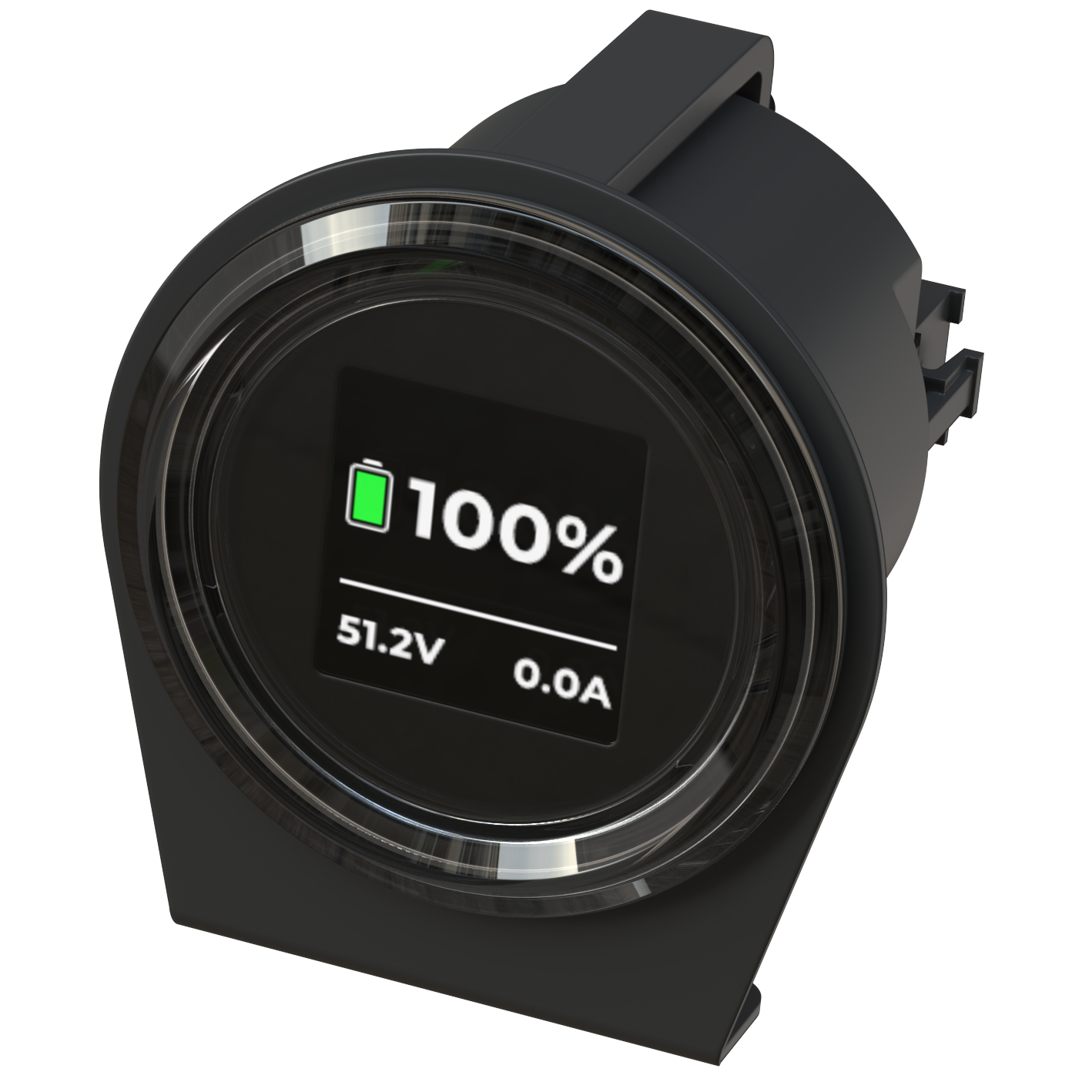

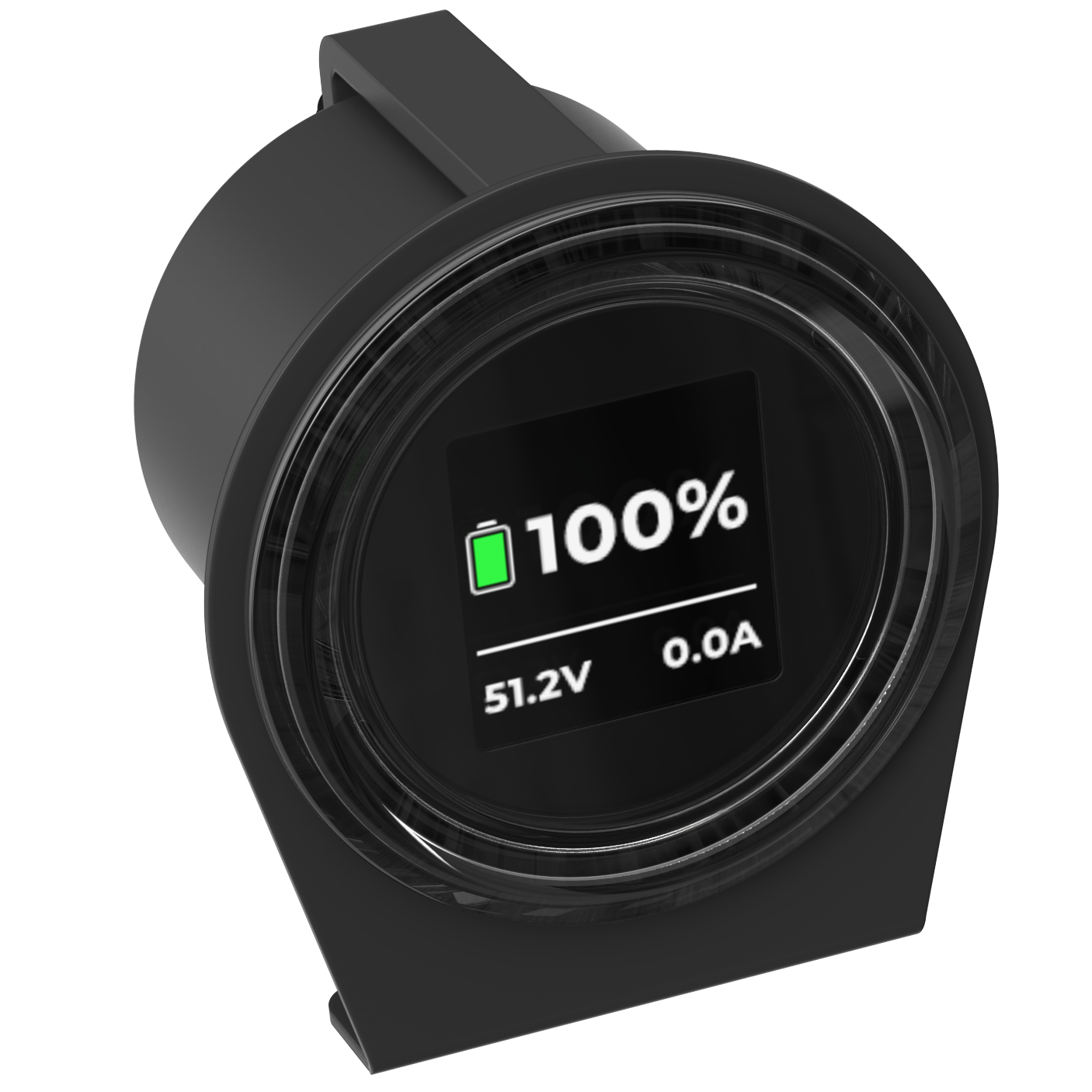

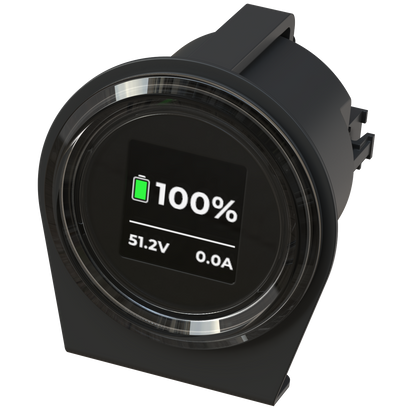

• Upgraded Battery Gauge: Real-time SOC, voltage, current flow, and alarm alerts (major upgrade over older 10-segment gauge).

Key Features

• LiFePO₄ Chemistry – safe, stable, and long-lasting
• 460Ah Capacity in Group 8D size
• Heated – internal heating for below 0°C charging
• Bluetooth – iOS & Android apps
• Victron Communications – parallel up to 16 on one system
• IP67 Rated – dustproof & waterproof
• Built-in Smart BMS with full protection suite
• Maintenance-Free design
• 3500+ Cycle Life
• 11-Year Manufacturer Warranty

---

Specifications

Capacity & Current

• Capacity: 460Ah
• Max Continuous Discharge: 230A
• Max Continuous Charge: 230A
• Peak Discharge: 500A (30 seconds), 1300A (1 second)

Voltage

• Nominal Voltage: 12.8V
• Max Charge Voltage: 14.6V
• Operating Voltage Range: 10.0V – 14.6V

Configuration

• Cell Configuration: 4S2P
• Series / Parallel: Max (4) in Series OR Max (16) in Parallel (4S1P or 1S16P)

Temperature Ratings

• Charge Temp Range: -30°C (-22°F) to 55°C (131°F) (with self-heating)
• Discharge Temp Range: -20°C (-4°F) to 55°C (131°F)
• Storage Temp: 0°C (32°F) to 35°C (95°F)

Physical

• Group Size: 8D
• Dimensions (L × W × H): 20.75" × 8.5" × 12"
• Weight: 97 lbs
• Rating: IP67 (Dust & Waterproof)

Safety & Certifications

• Internal Fuse: UL60691 Certified
• Cells: UL1642, U9540A, IEC 62619:2022 Certified
• Pack: UL1973 Certified
• UL Listing: In process

---

Victron System Integration (Recommended Setup)

The V2 Elite is designed to work seamlessly with Victron GX systems.

Battery Comm Harness & Gauge Setup

1. Plug the waterproof bung into the master blue port.
2. Run an RJ45 cable from the master black port to the slave1 blue port.
3. Continue daisy chaining: slave1 black port to slave blue port, and so on (up to 16 batteries in parallel).
4. Set dip switches as per the manual.
5. Plug the grey RJ45 into the Cerbo / Ekrano GX BMS CAN port. If using Cerbo Mk2, plug into VE-CAN1 or VE-CAN2 and set port speed to 500 KBPS LV.

Confirm Proper Reporting on GX

1. On the GX/touchscreen, confirm the Epoch battery appears in the device list.
2. Open the battery line and go to Details.
3. Verify modules online equals the number of installed batteries.
4. Verify total Ah equals installed Ah capacity.

GX Settings

• Turn on DVCC
• Set Controlling BMS: Epoch
• Set Battery Monitor: Epoch
• System should show External Control on the GX inverter tile while charging (not while inverting).

The system will automatically cycle to 14.2V absorption (minimum ~15 minutes per battery), followed by 13.5V float.

Recommendation: Manually program your MultiPlus, Quattro, and other charge sources to these same parameters as a fallback in case of CAN communication loss.

---

Non-Victron System Charging Settings

• Absorption Voltage: 14.2V
• Absorption Time: 15 minutes per battery
• Float Voltage: 13.5V
• Equalization: Off
• Temperature Compensation: Disabled (No temp compensation)

---

Ideal Applications

• Overland & expedition vehicles
• Camper vans & RVs
• Marine systems
• Off-grid cabins
• High-capacity solar storage
• Victron-based power systems
