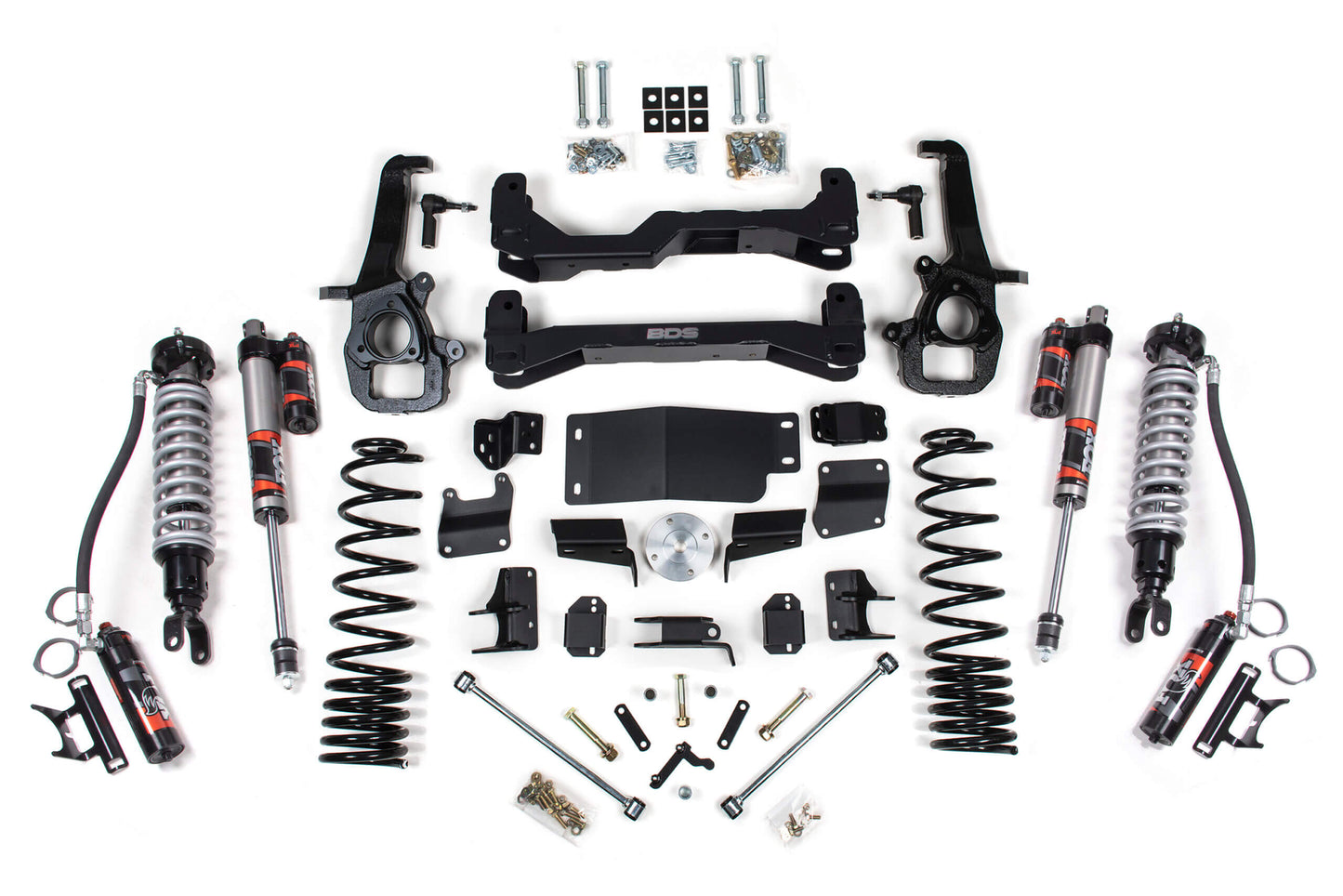

BDS 3 Inch Lift Kit w/ FOX 2.5 Performance Elite Coil-Over Ram 1500 Rebel 4WD (2019–2024)

Upgrade the performance, stance, and off-road capability of your 2019–2024 Ram 1500 Rebel 4WD with the BDS 3 Inch Lift Kit featuring FOX 2.5 Performance Elite coil-over shocks. Engineered specifically for Rebel models, this premium suspension system delivers increased ground clearance, improved suspension travel, and clearance for up to 35-inch tires while maintaining excellent on-road comfort.

At the front, the system utilizes FOX 2.5 Performance Elite remote reservoir coil-over shocks designed to provide superior damping performance in demanding terrain. These high-performance shocks feature a large 2.5-inch aluminum body and remote reservoir to increase oil capacity and cooling efficiency, helping maintain consistent performance during aggressive off-road use.

The coil-overs are equipped with FOX’s DSC (Dual Speed Compression) adjusters, allowing drivers to fine-tune suspension performance with separate high-speed and low-speed compression settings. This provides exceptional versatility so you can quickly adjust the ride for changing terrain, vehicle loads, and driving conditions.

BDS incorporates heavy-duty high-clearance crossmembers constructed from 1/4-inch laser-cut steel to maximize ground clearance and improve overall strength. These crossmembers work with a reinforced skid plate system to create a rigid subframe while adding critical protection for off-road driving.

To maintain proper steering and suspension geometry at the lifted ride height, the system includes CNC-machined ductile iron steering knuckles along with differential relocation brackets that improve CV axle angles and ensure compatibility with the factory electronic stability control system. Additional components including sway bar relocation brackets, bump stop extensions, stainless steel braided brake lines, CV spacers, and heavy-duty hardware complete the front suspension system.

In the rear, the kit utilizes progressive rate Pro-Ride coil springs engineered to deliver a balanced lift and smooth ride quality while supporting increased load capacity. Rear upper control arm relocation brackets correct pinion angle, while the included track bar relocation bracket properly centers the rear axle under the vehicle.

Rear damping is handled by FOX 2.0 Performance Series IFP gas shocks, delivering improved ride control and consistent performance both on and off the trail.

This complete 100% bolt-on suspension system enhances both capability and appearance, giving your Ram 1500 Rebel a more aggressive stance while maintaining the refined ride quality expected from a premium BDS suspension system.
