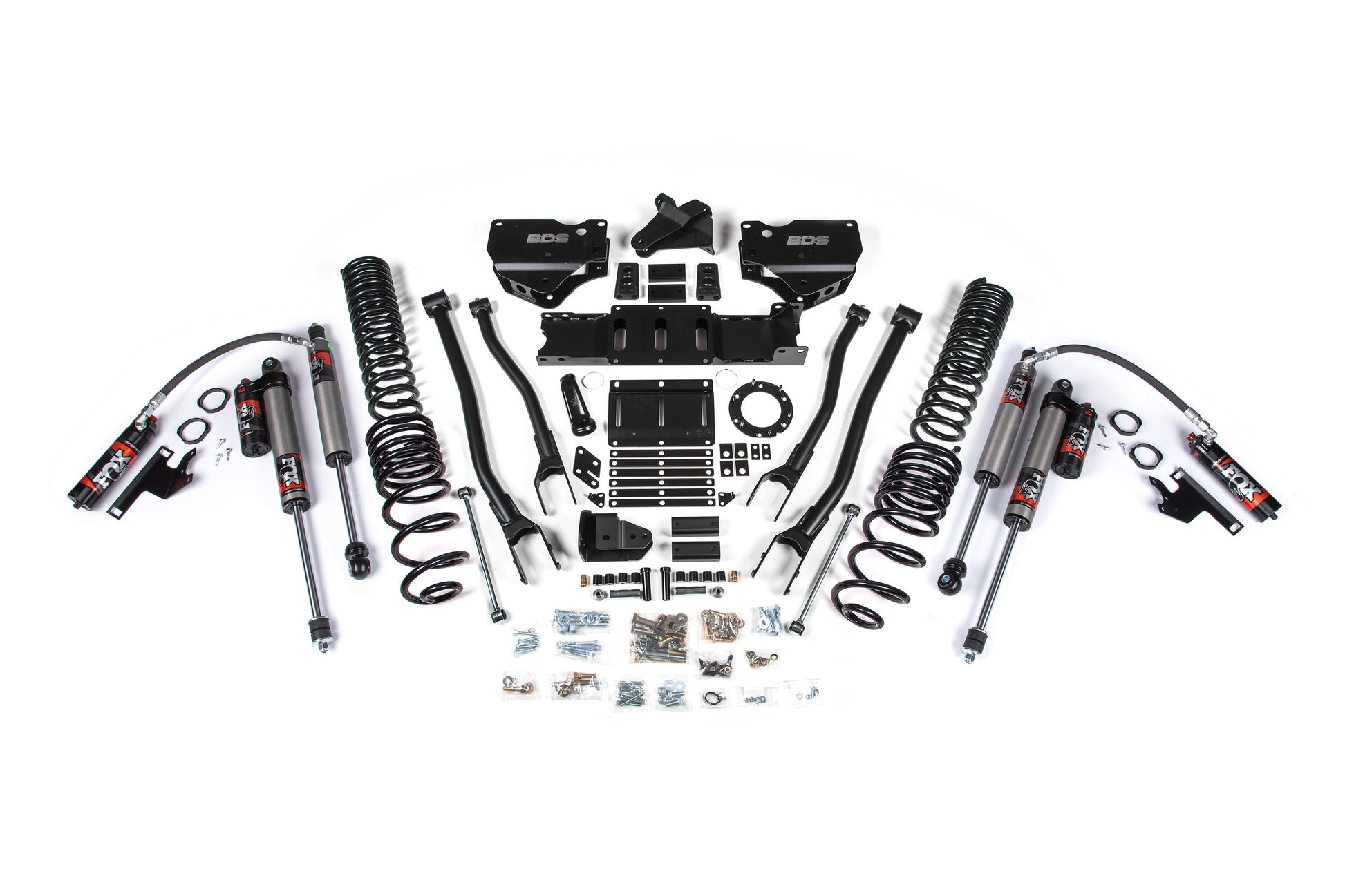

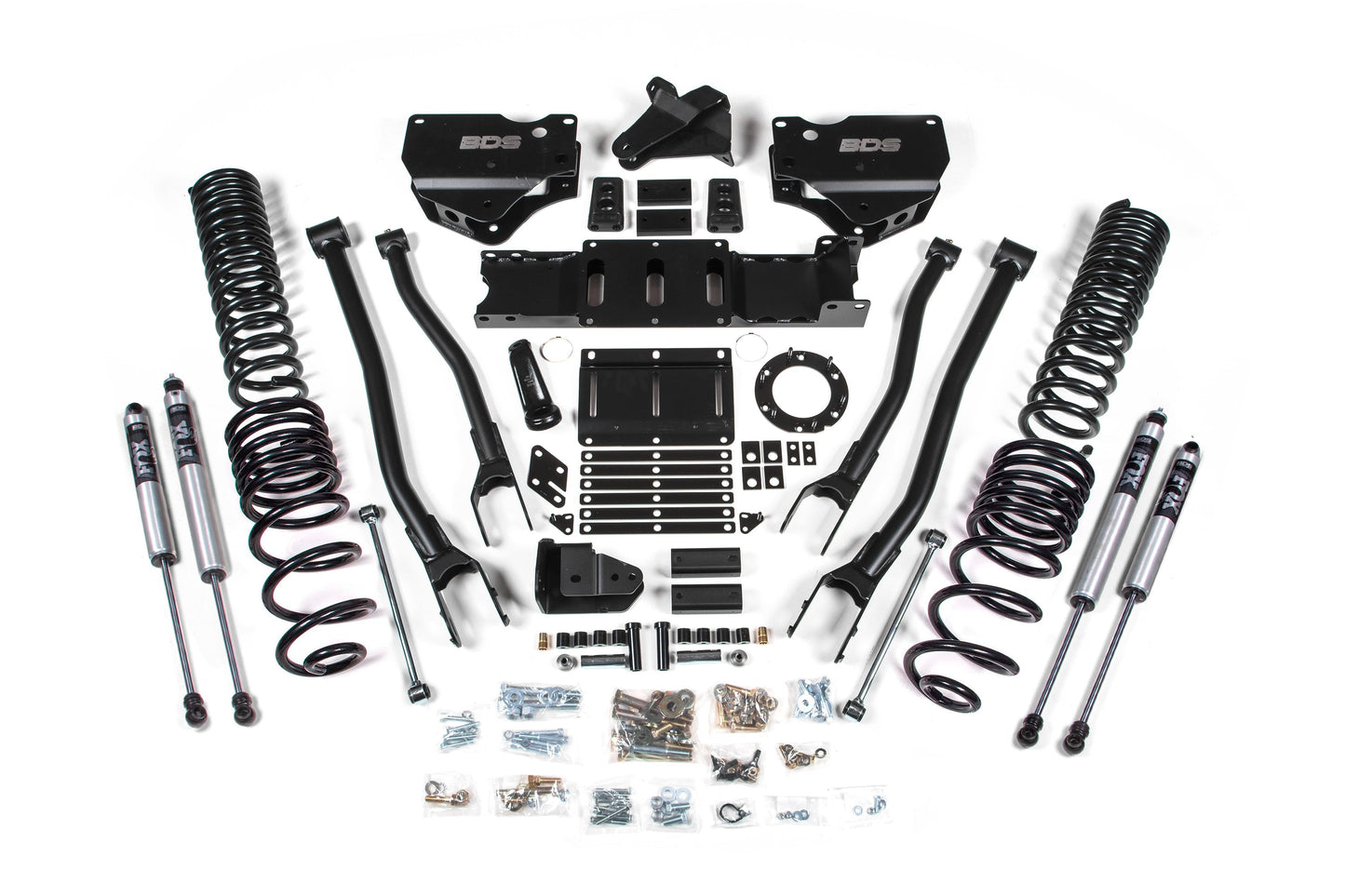

BDS 4 Inch 4-Link Suspension Lift Kit w/ FOX 2.5 Performance Elite Shocks Ram 2500 4WD Diesel (2019–2024)

Upgrade the stance, capability, and off-road performance of your 2019–2024 Ram 2500 diesel with the BDS 4 Inch 4-Link Suspension Lift Kit featuring FOX 2.5 Performance Elite shocks. Designed for serious performance and durability, this system improves suspension geometry while allowing clearance for up to 37-inch tires.

The front suspension is completely upgraded with diesel-specific Pro-Ride progressive rate coil springs and a heavy-duty 4-link conversion system. This replaces the factory radius arm setup with stronger upper and lower control arms that improve handling, axle positioning, and suspension articulation. Steering geometry is corrected using a forged drop pitman arm and track bar relocation bracket, ensuring proper steering angles and confident handling at the lifted ride height.

To maintain proper driveline alignment, BDS includes a transfer case indexing ring and heavy-duty transmission crossmember, allowing continued use of the factory front driveshaft. Additional components such as bump stops, brake line brackets, and sway bar corrections ensure a complete bolt-on suspension upgrade.

In the rear, the kit utilizes Pro-Ride coil springs, track bar relocation brackets, bump stop extensions, and sway bar links to properly center the axle and maintain ride quality. The system is paired with FOX 2.5 Performance Elite remote reservoir shocks, delivering exceptional damping performance, heat dissipation, and adjustable compression tuning for both on-road comfort and aggressive off-road driving.

Built with the strength and reliability BDS Suspension is known for, this lift kit provides improved ground clearance, superior suspension geometry, and outstanding performance for lifted Ram trucks.
