BDS 4 Inch Lift Kit 4-Link Ram 3500 Rear Air Ride Diesel 4WD (2019–2024)

Upgrade the stance and capability of your heavy-duty truck with the BDS 4 Inch Lift Kit with 4-Link Conversion for the 2019–2024 Ram 3500 diesel 4WD equipped with factory rear air ride suspension. Engineered for durability, ride quality, and improved suspension geometry, this premium suspension system delivers the performance needed for both daily driving and demanding off-road conditions.

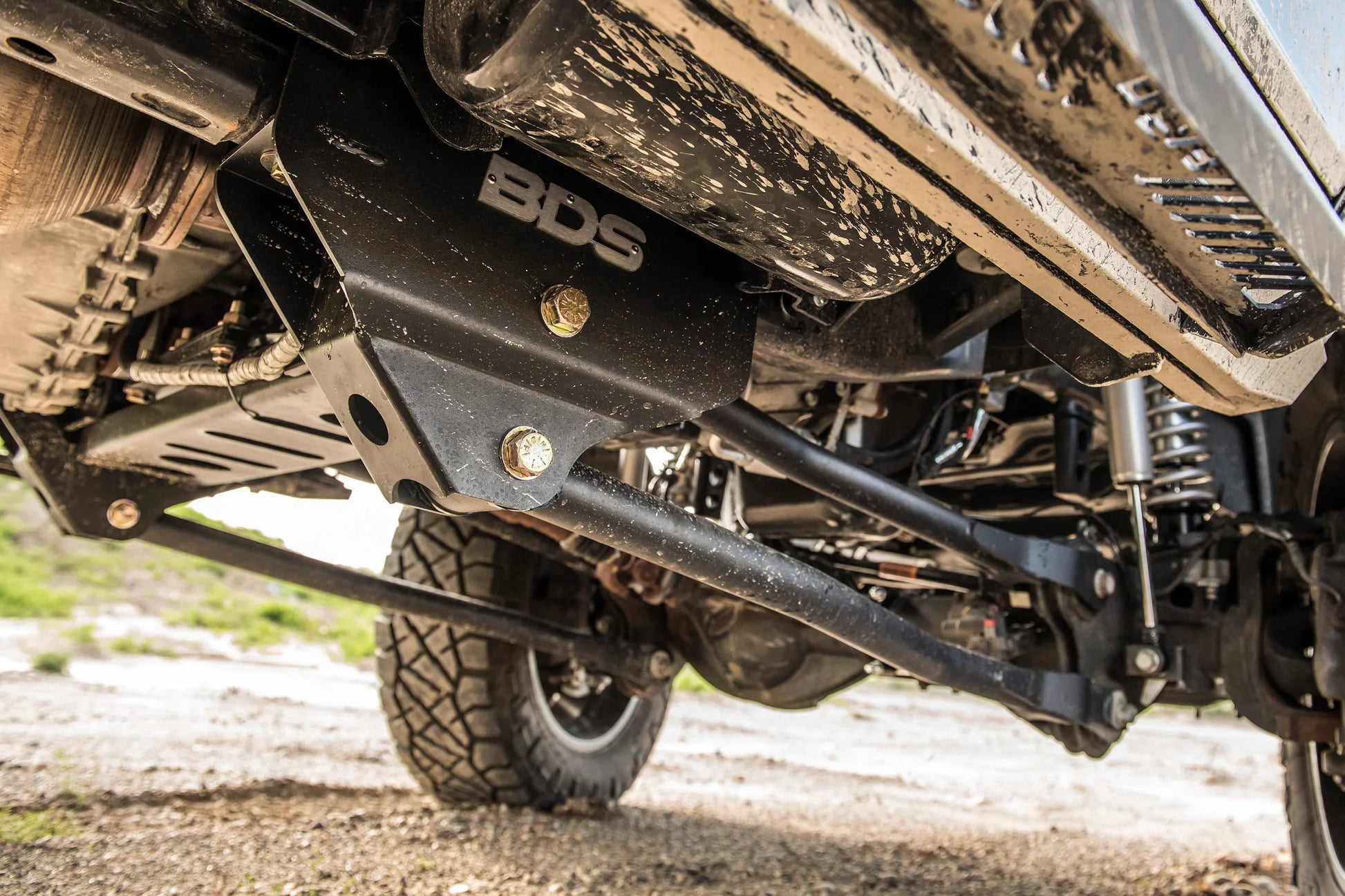

The system replaces the factory radius arm configuration with a heavy-duty 4-link suspension conversion, improving axle positioning, suspension articulation, and caster control throughout wheel travel. This upgrade enhances stability, steering response, and overall handling when compared to the factory setup.

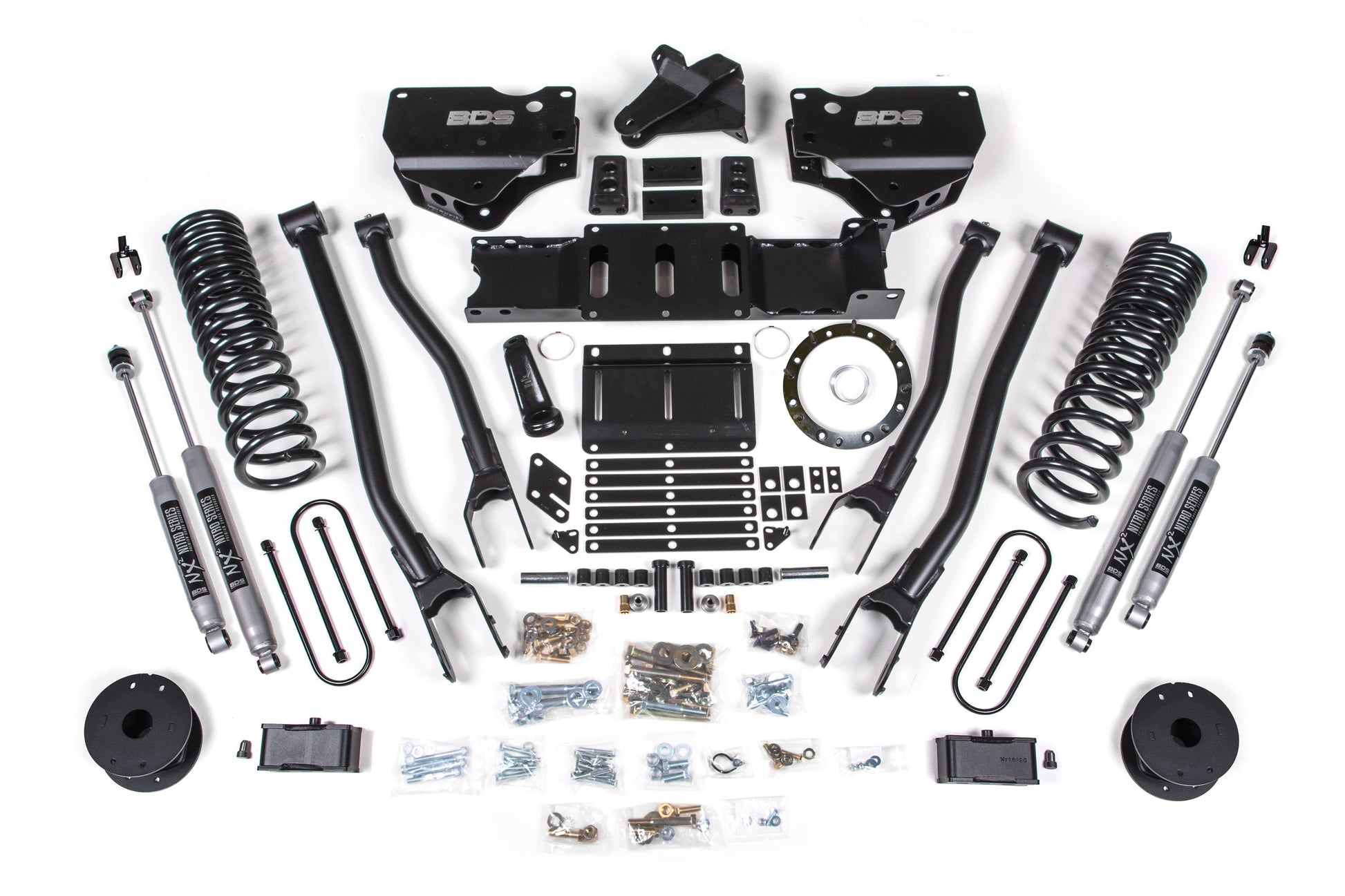

Up front, the lift kit features diesel-specific progressive rate Pro-Ride coil springs, designed to deliver the correct lift height while maintaining a smooth and predictable ride on and off the road. Steering geometry is corrected with a forged drop pitman arm and heavy-duty track bar relocation bracket, ensuring proper steering alignment and confident handling after lifting the truck.

To maintain proper driveline operation, BDS includes a transfer case indexing ring and high-strength transmission crossmember, allowing the factory driveshaft to function properly at the increased ride height. In the rear, the system works with the factory auto-level rear air suspension, utilizing heavy-duty air bag spacers, lift blocks, and longer U-bolts to maintain proper suspension operation.

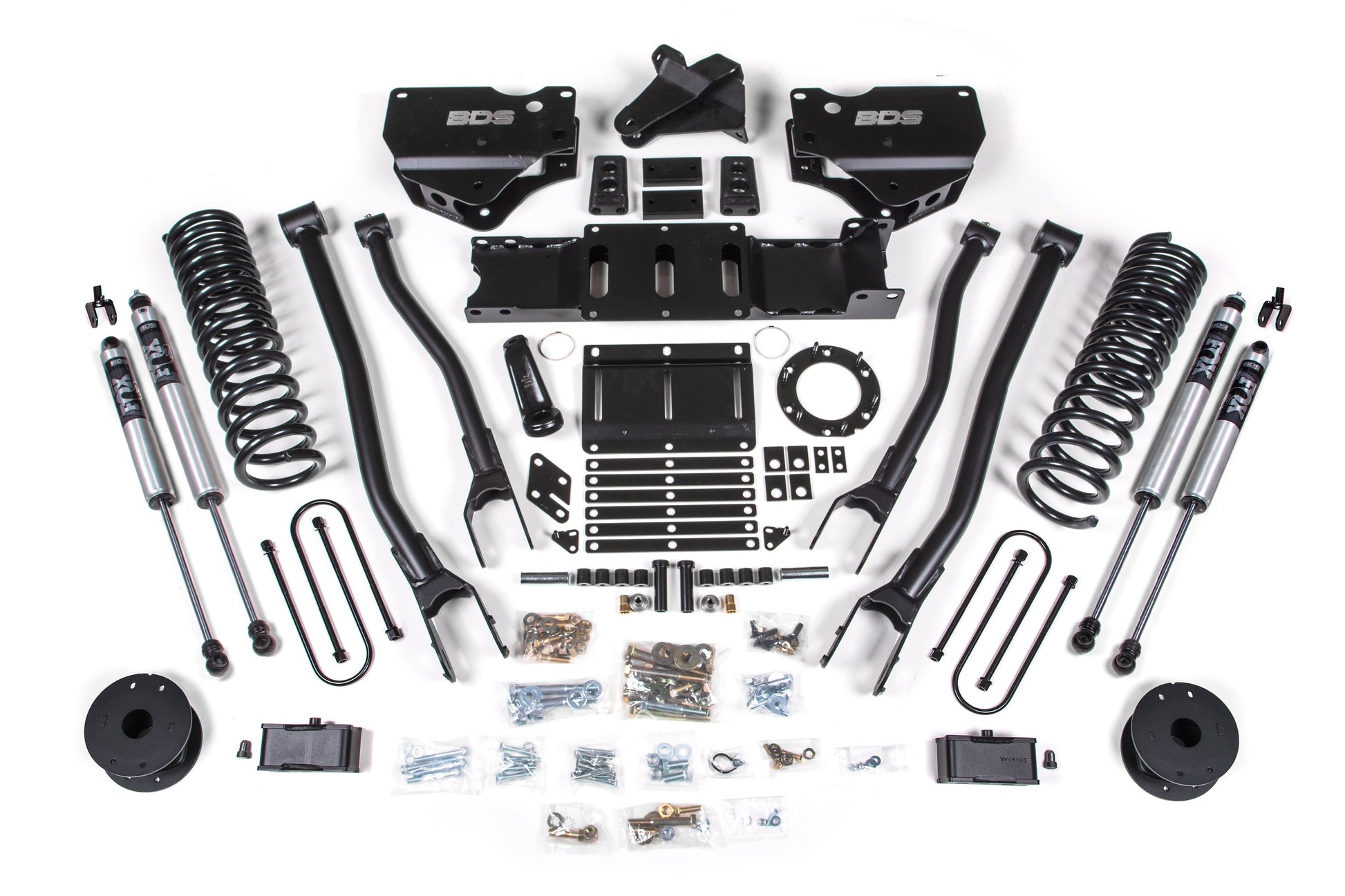

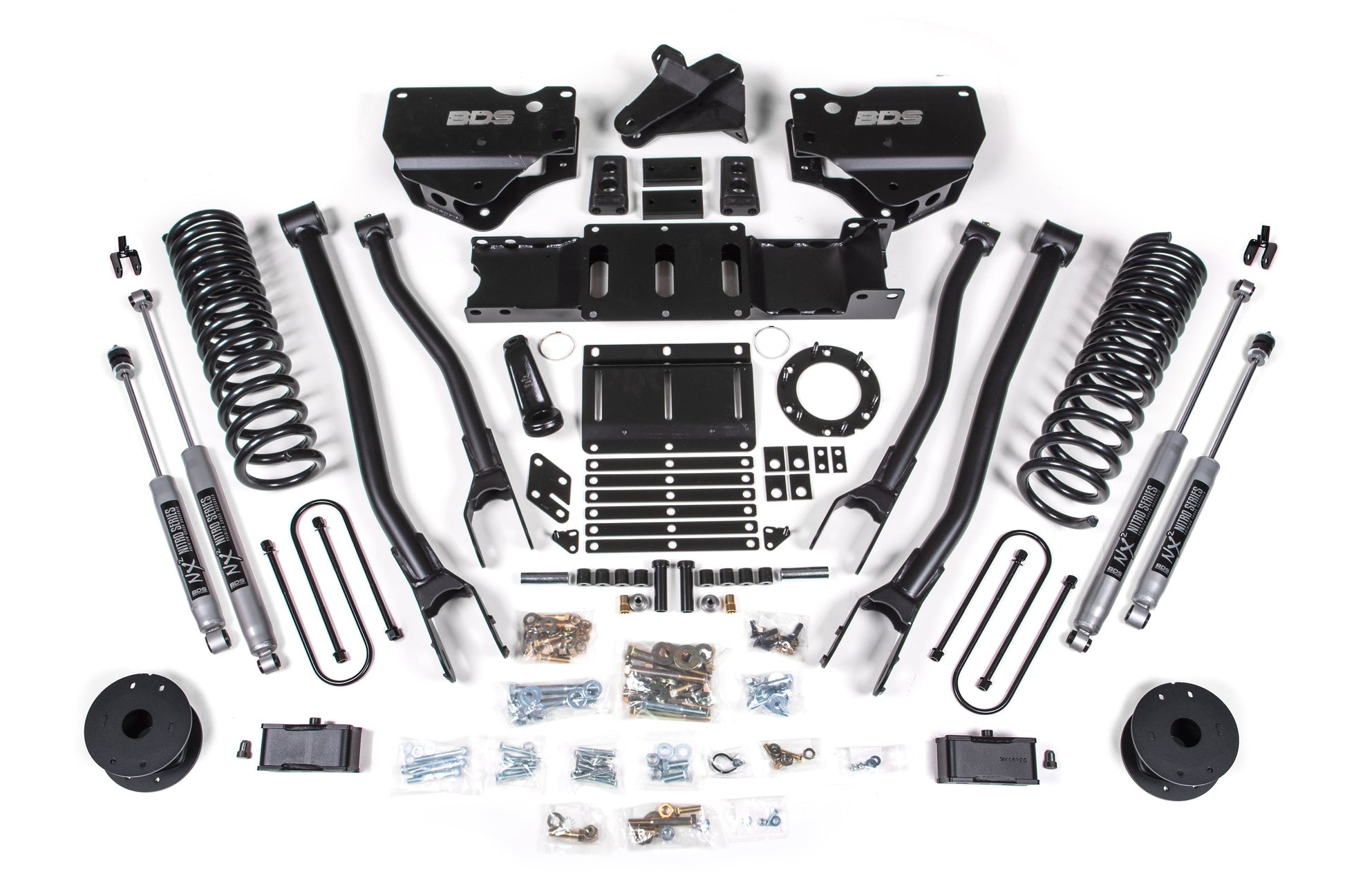

The kit is paired with NX2 Nitro Series shocks or optional FOX Performance Series shocks, providing improved damping performance and ride control across various terrain types.

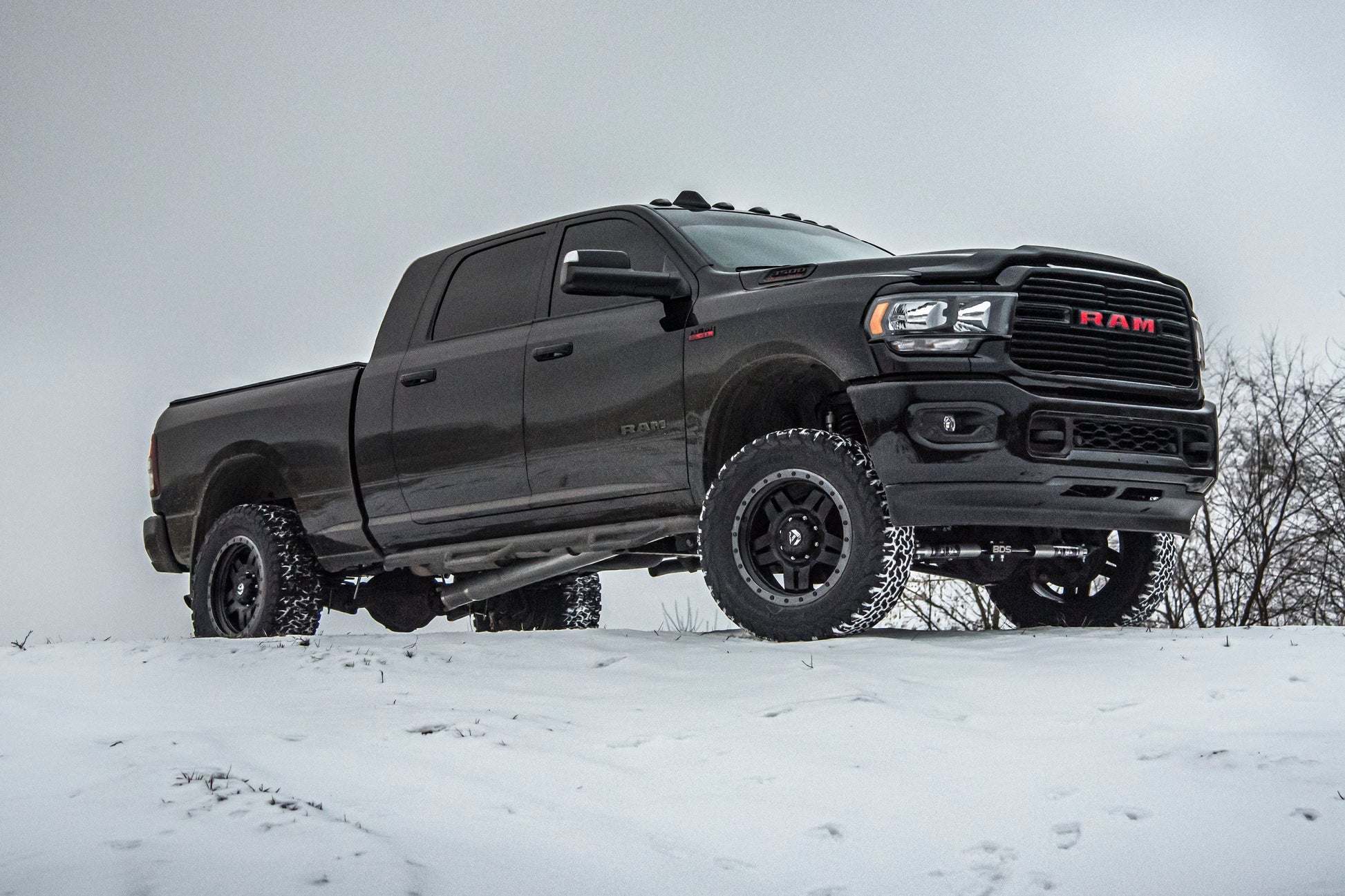

With clearance for up to 35-inch tires, the BDS 4 Inch 4-Link Lift Kit is designed to deliver improved capability, aggressive stance, and the durability expected from a premium suspension upgrade for the Ram
