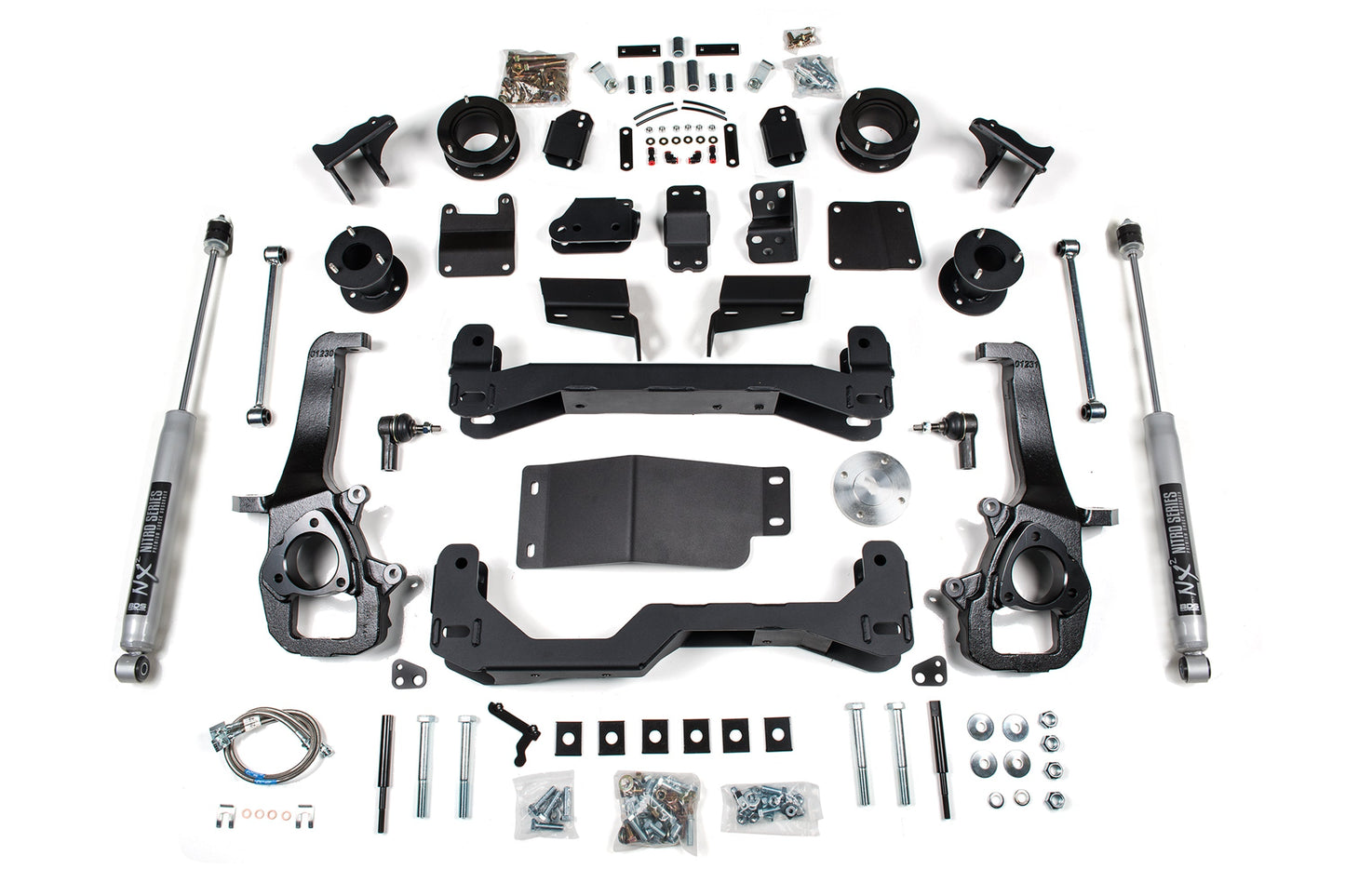

BDS 4 Inch Lift Kit Ram 1500 Air Ride 4WD (2019–2024)

Upgrade the capability, ground clearance, and stance of your 2019–2024 Ram 1500 4WD equipped with factory air ride suspension with the BDS 4 Inch Lift Kit. Designed specifically for Ram 1500 trucks with the factory air suspension system, this kit increases ride height while maintaining proper suspension geometry and factory air ride functionality.

The front suspension system utilizes top-mounted strut spacers, heavy-duty high-clearance crossmembers, differential relocation brackets, and skid plates engineered to improve strength and protect critical drivetrain components during demanding off-road use. Steering geometry is corrected using CNC-machined ductile iron steering knuckles and replacement tie rod ends, maintaining proper steering angles and compatibility with the factory electronic stability control system.

Heavy-duty ¼-inch laser-cut crossmembers maximize ground clearance while forming a rigid subframe when combined with the integrated skid plate system. This design improves off-road durability while protecting key suspension components.

In the rear, the system is specifically engineered to retain factory air ride suspension functionality. The kit includes top-mounted air bag spacers, rear upper control arm relocation brackets, track bar relocation brackets, bump stop extensions, sway bar links, new air lines, and ride height sensor brackets to ensure proper air suspension operation at the lifted height.

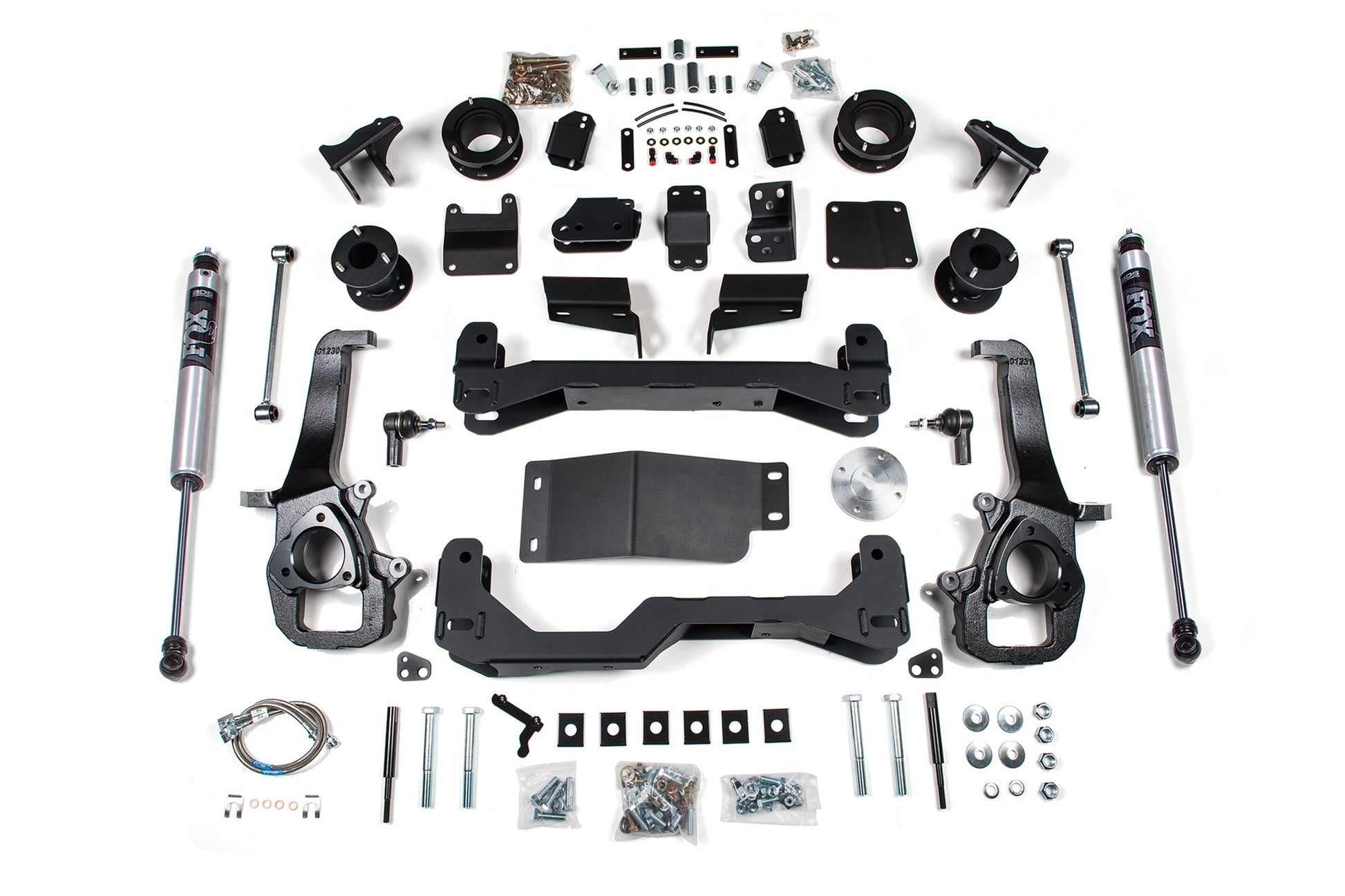

The system is paired with NX2 Nitro Series shocks or optional FOX 2.0 Performance Series shocks, delivering improved damping performance, ride control, and durability.

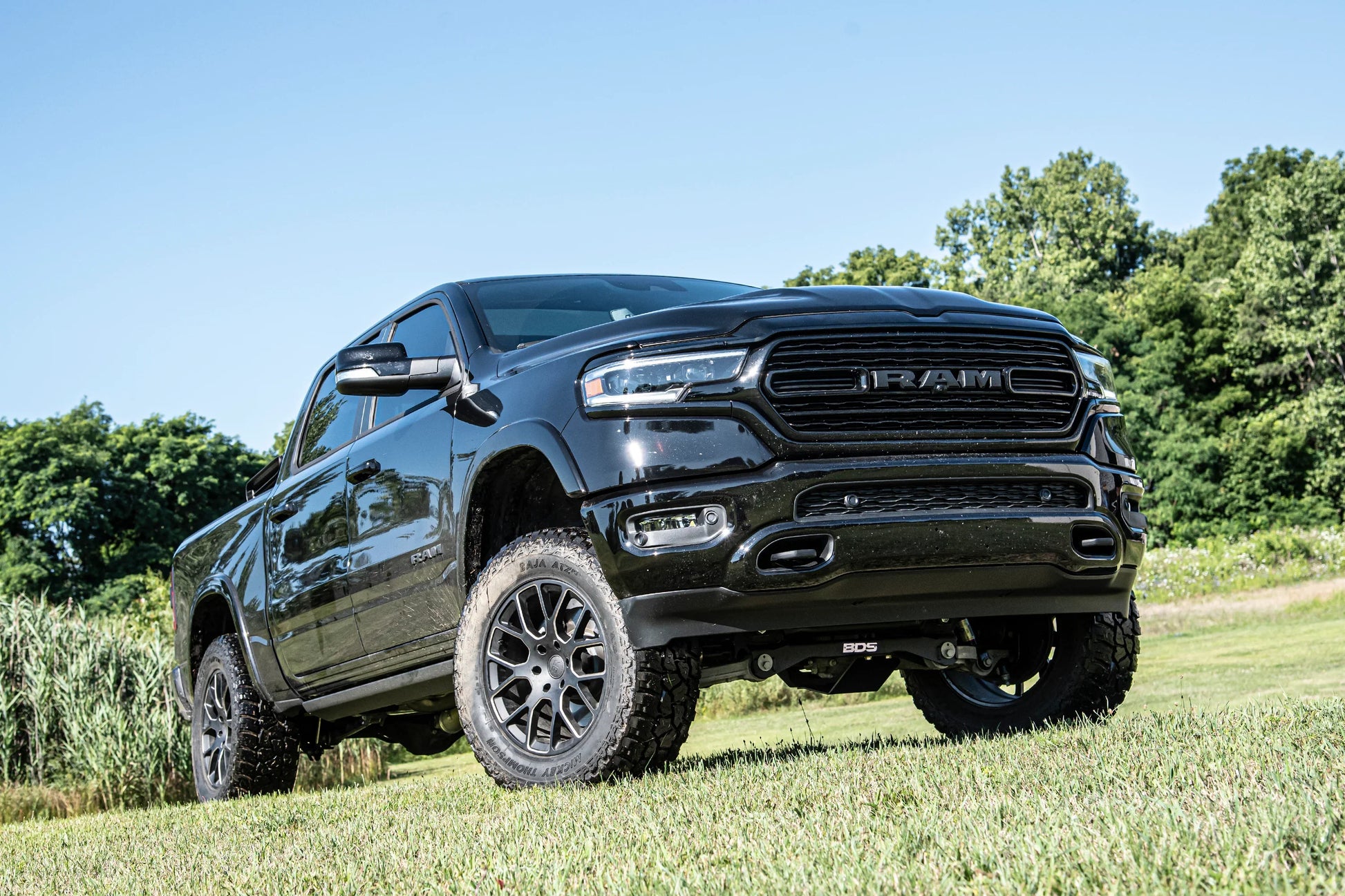

Designed as a complete bolt-on suspension system, this BDS lift kit improves off-road capability and provides clearance for up to 35-inch tires, giving your Ram 1500 a more aggressive stance while maintaining factory ride comfort.
