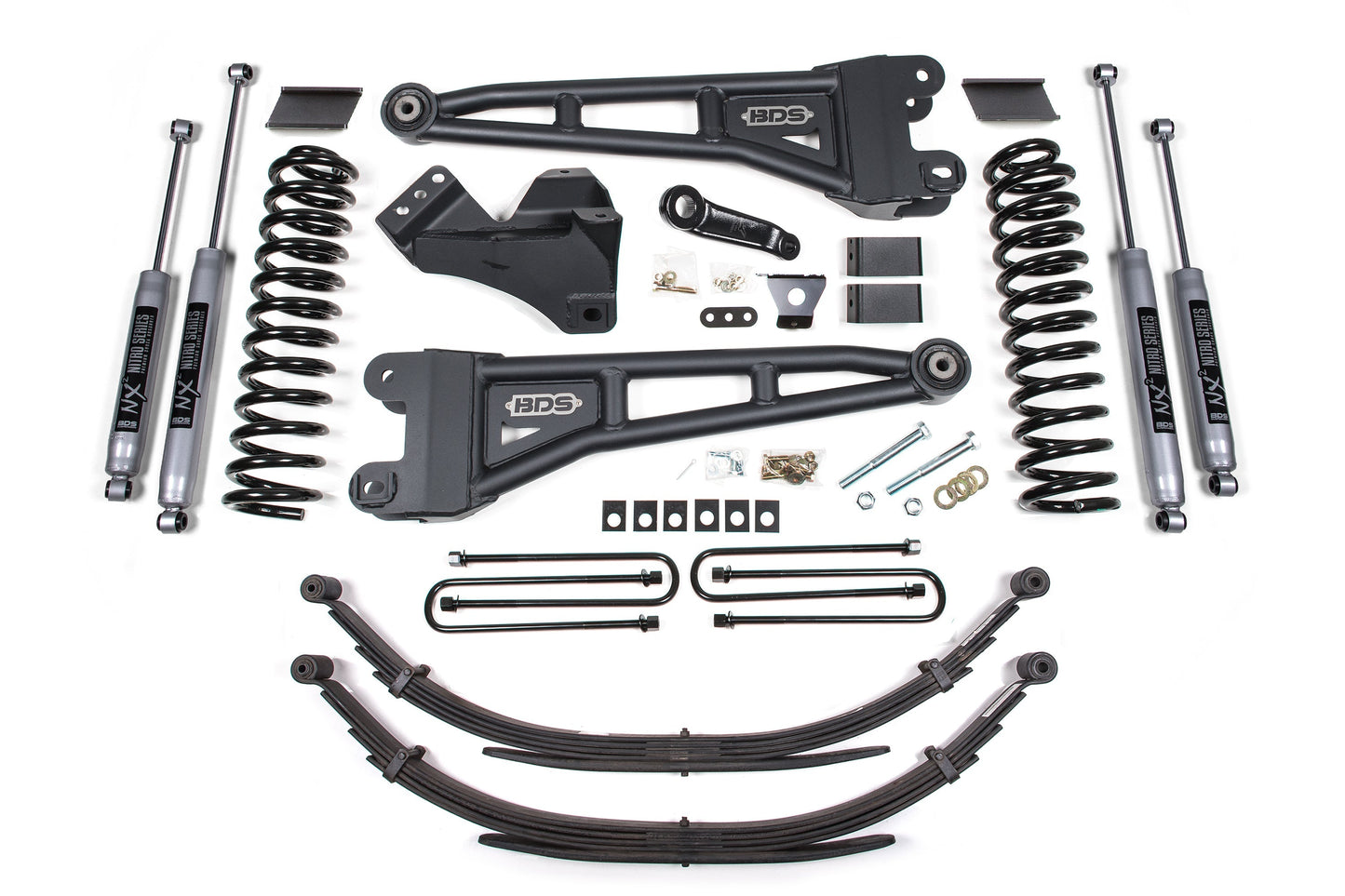

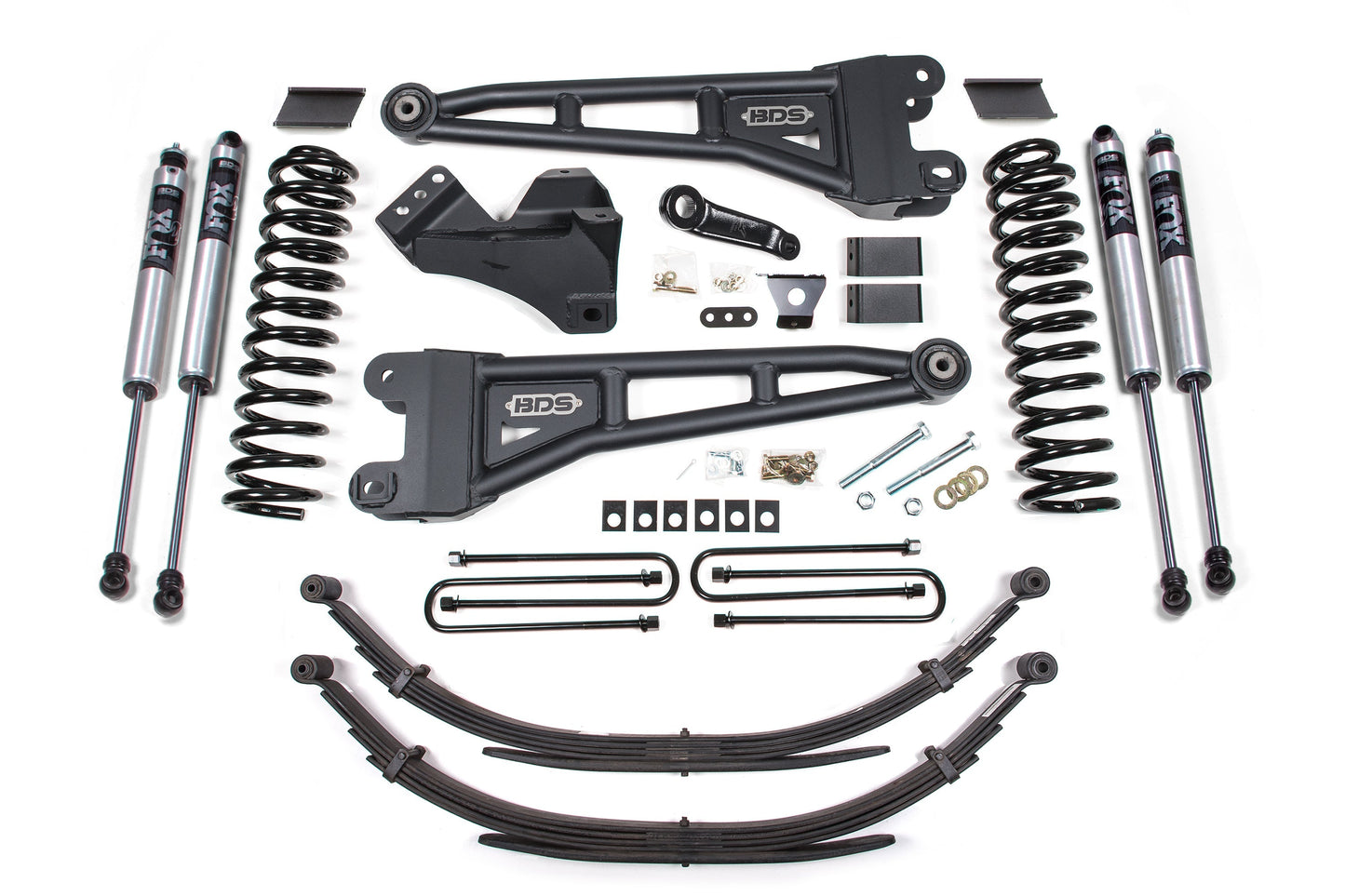

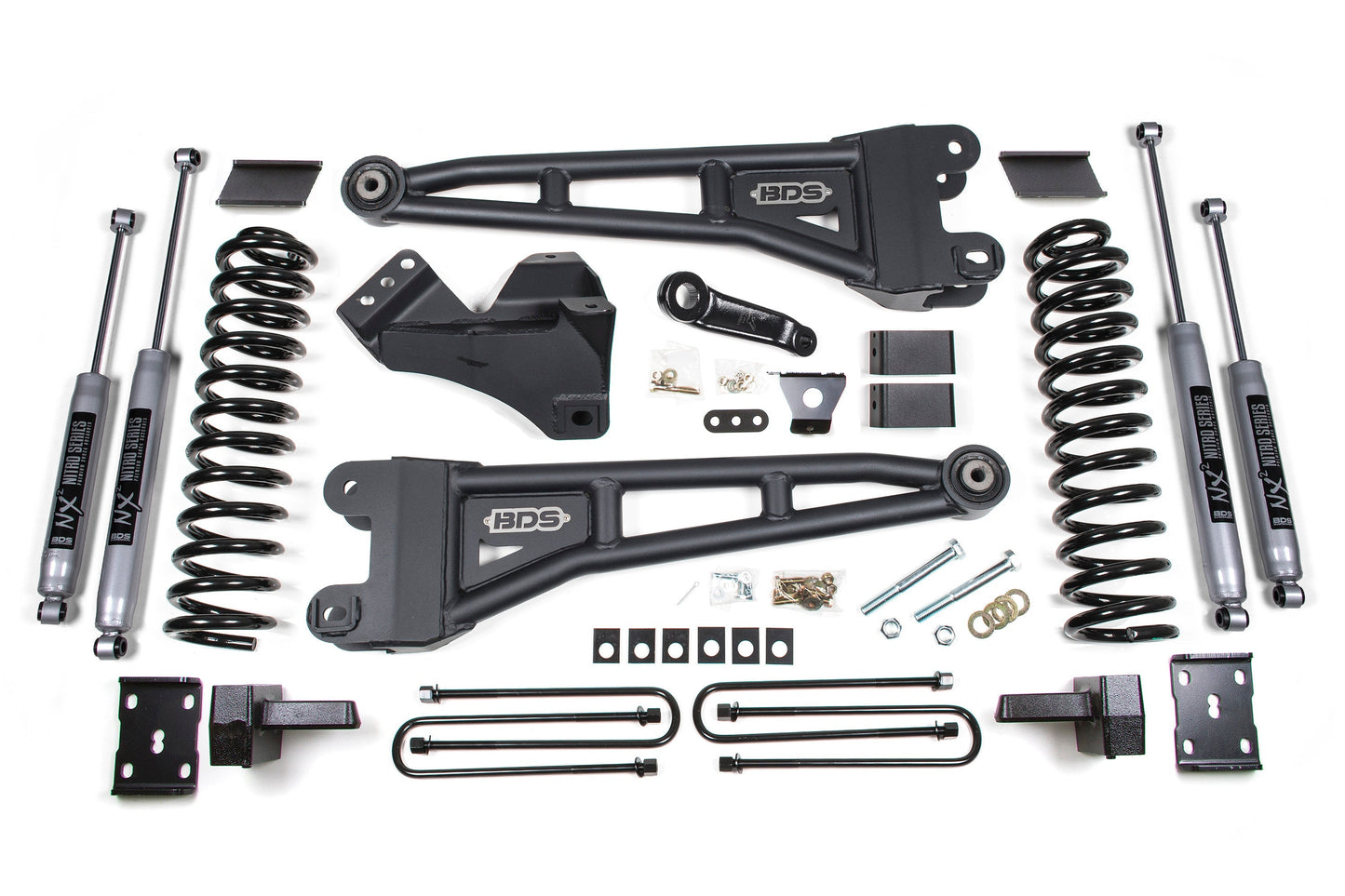

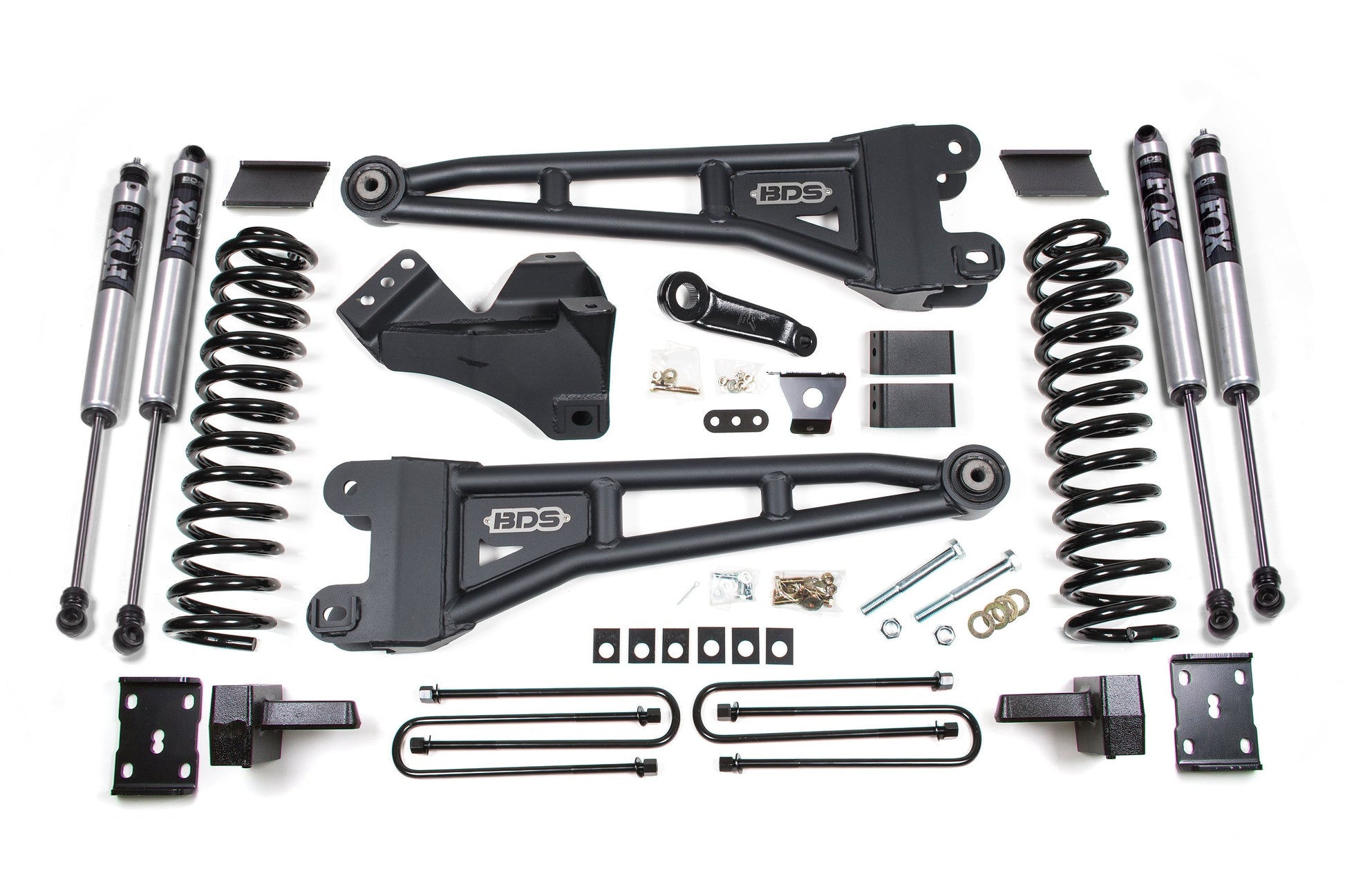

BDS 4 Inch Radius Arm Lift Kit Ford F250/F350 Super Duty Gas 4WD (2011–2016)

Upgrade the stance, suspension performance, and off-road capability of your 2011–2016 Ford F-250 and F-350 Super Duty 4WD gas truck with the BDS 4 Inch Radius Arm Lift Kit. Designed to improve ground clearance while maintaining proper suspension geometry, this system provides the strength, ride quality, and reliability expected from BDS Suspension.

The front suspension system features gas-specific Pro-Ride dual-rate coil springs engineered to provide the correct lift height while delivering a smooth, controlled ride across a wide range of terrain. These springs are paired with heavy-duty tubular radius arms, replacing the factory stamped steel arms to increase suspension strength while correcting caster and improving overall handling.

To maintain proper steering geometry at the lifted ride height, the kit includes a forged drop pitman arm and heavy-duty track bar relocation bracket, helping keep the steering system properly aligned and the front axle centered throughout suspension travel.

Additional front components include sway bar relocation brackets and brake line brackets, ensuring proper operation of factory components after lifting the vehicle.

In the rear, the system raises the truck using high-strength fabricated lift blocks or optional replacement leaf springs, along with extended U-bolts and matching shocks to maintain proper axle positioning and ride stability.

The system is paired with NX2 Nitro Series gas shocks or optional FOX Performance Series shocks, providing improved damping performance, better control, and enhanced ride comfort both on and off road.

Designed as a complete bolt-on suspension system, this BDS lift kit delivers improved durability, increased capability, and clearance for up to 35-inch tires, giving your Super Duty the aggressive stance and performance needed for demanding use.
