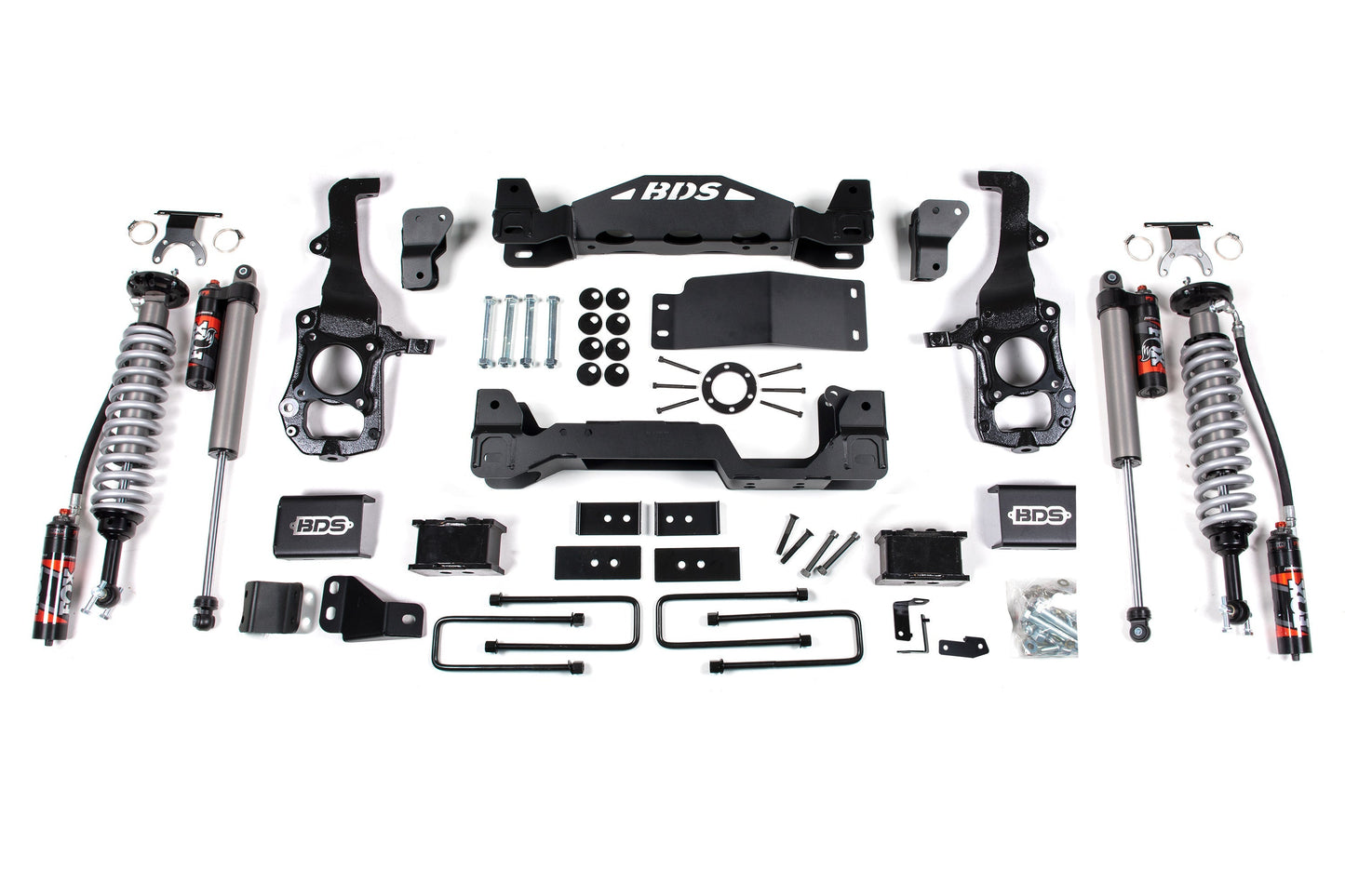

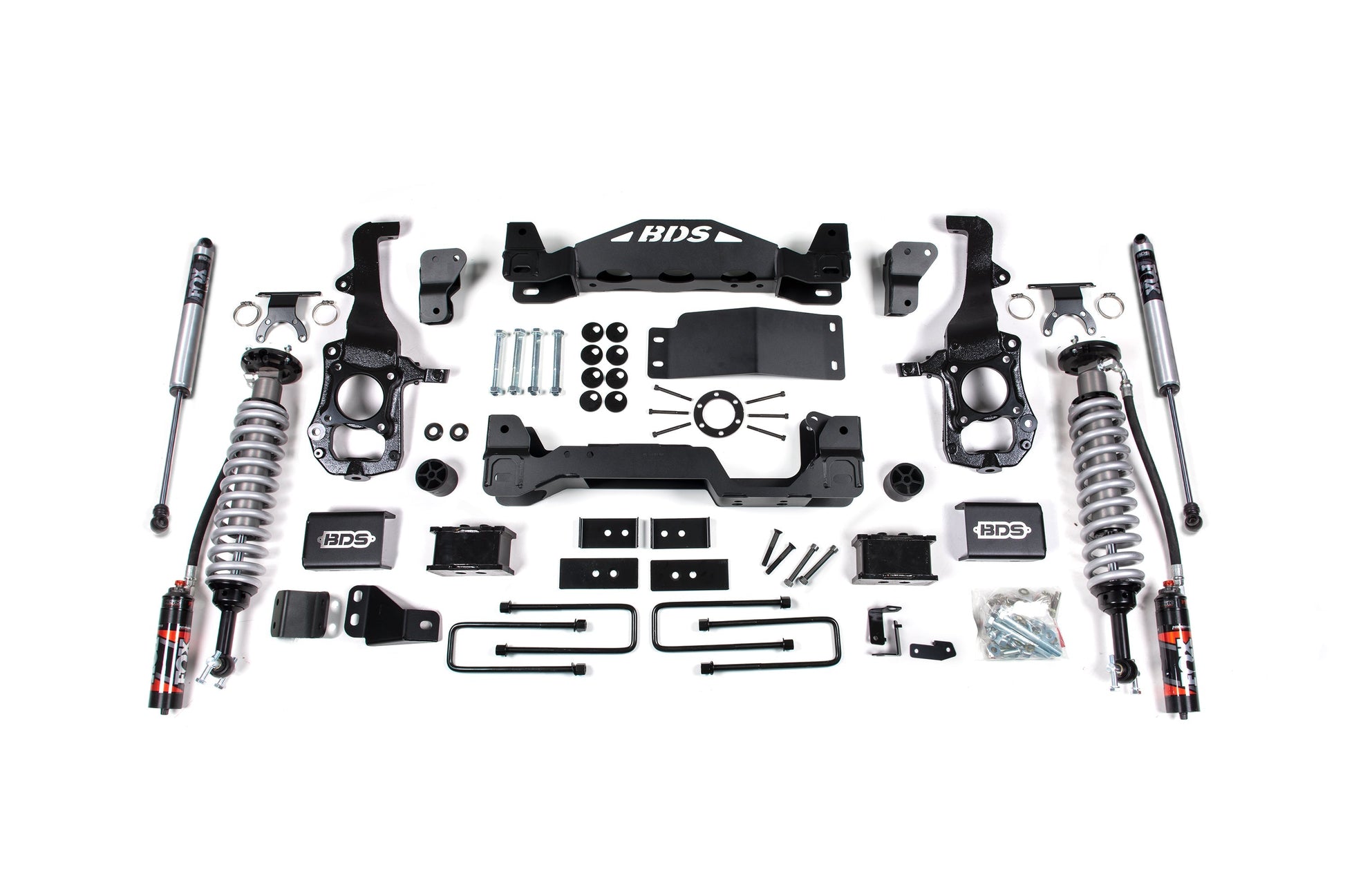

BDS 4 Inch Suspension Lift Kit w/ FOX 2.5 Performance Elite Coil-Overs Ford F-150 4WD (2021–2026)

Upgrade the stance, capability, and off-road performance of your 2021–2026 Ford F-150 4WD with the BDS 4 Inch Lift Kit featuring FOX 2.5 Performance Elite coil-over shocks. Engineered for serious performance and everyday drivability, this premium suspension system increases ground clearance, improves suspension travel, and allows clearance for up to 35-inch tires while maintaining excellent on-road comfort.

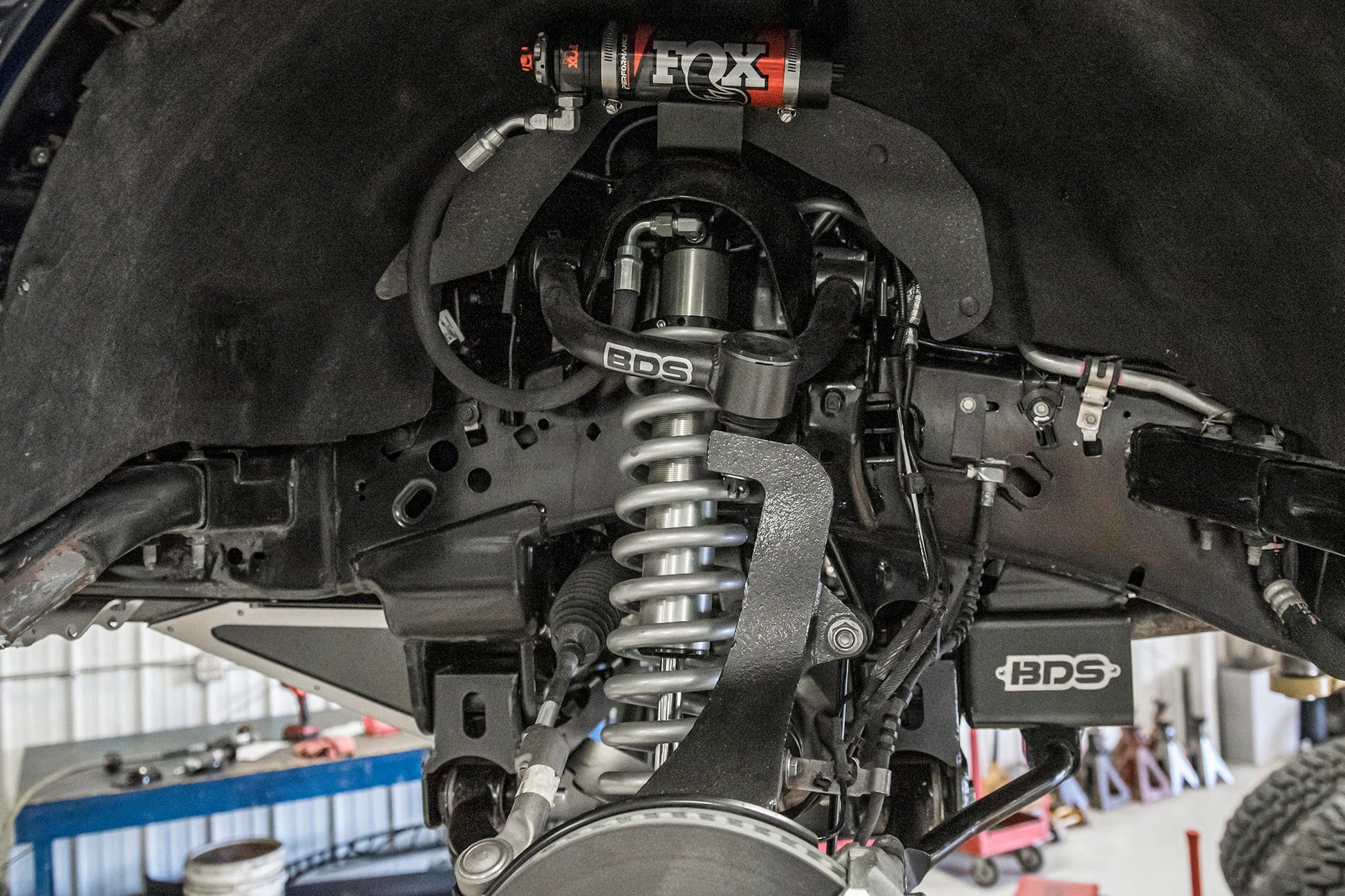

At the front, the kit utilizes FOX 2.5 Performance Elite remote reservoir coil-over shocks designed to deliver exceptional damping performance and durability. These race-inspired shocks feature a large aluminum body and external reservoir that increases oil capacity and cooling efficiency, helping maintain consistent performance during aggressive off-road driving.

For maximum tuning capability, the coil-overs are equipped with FOX’s DSC (Dual Speed Compression) adjusters, allowing independent high-speed and low-speed compression adjustments. This provides the flexibility to dial in suspension performance for varying terrain conditions, vehicle loads, and driving styles.

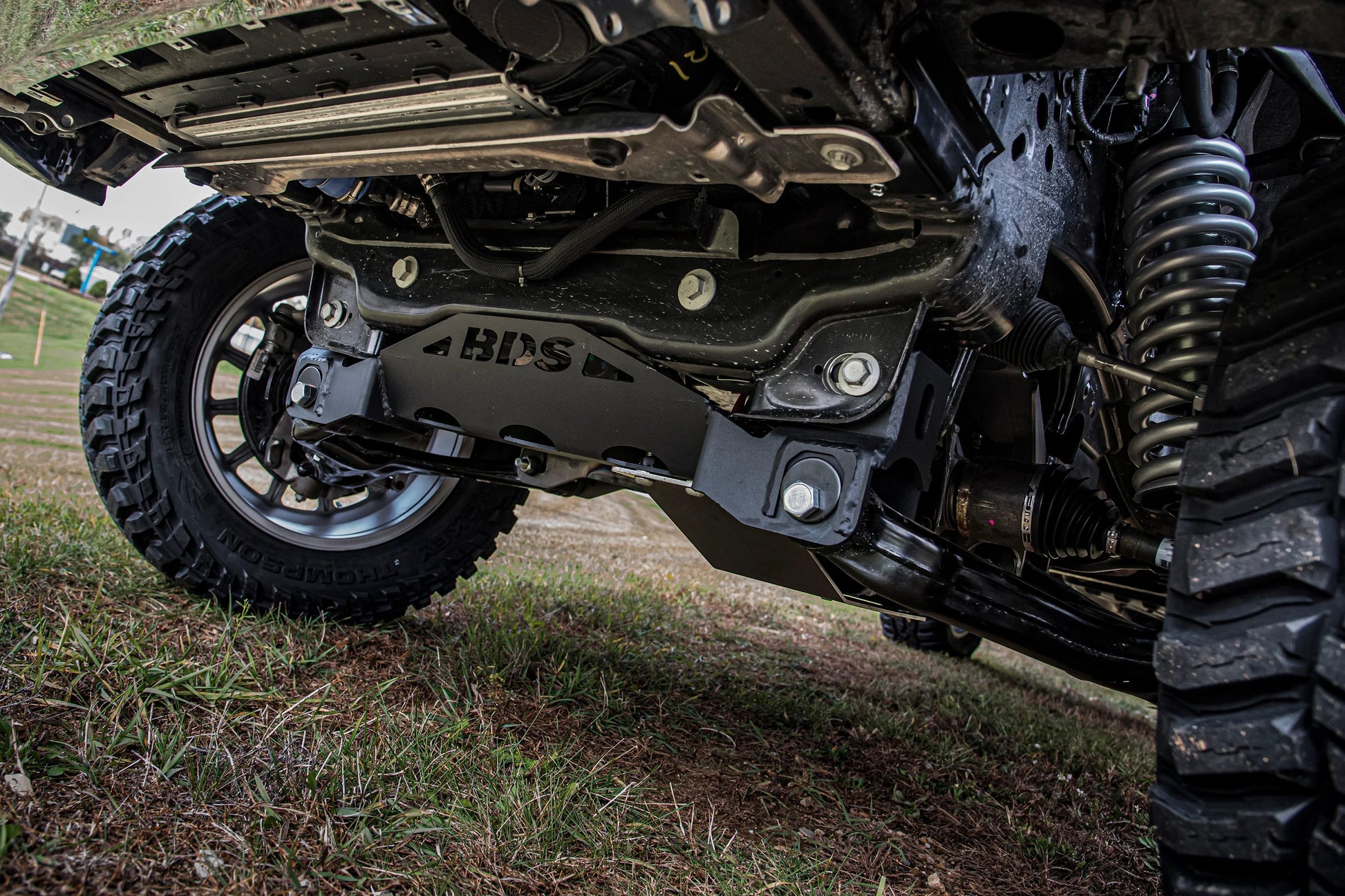

BDS incorporates heavy-duty high-clearance crossmembers constructed from 1/4-inch laser-cut steel to maximize ground clearance while strengthening the suspension system. These crossmembers work with the included skid plate system to create a rigid subframe while adding protection for critical drivetrain components during off-road use.

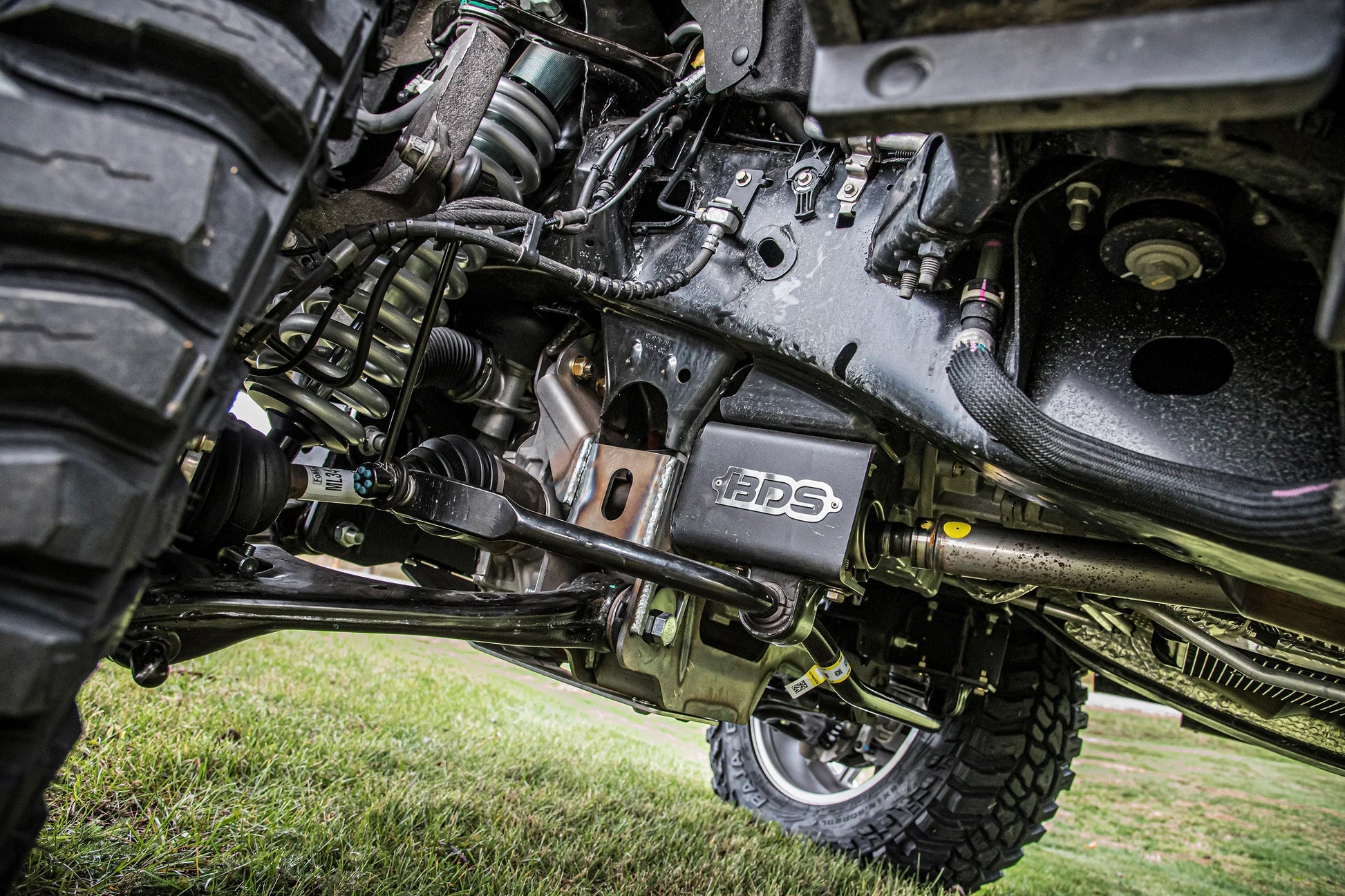

Steering geometry is corrected using CNC-machined ductile iron steering knuckles designed to maintain proper steering angles and compatibility with factory electronic stability control systems. Differential relocation brackets improve CV axle angles while additional components including sway bar relocation brackets, brake line brackets, alignment cam bolts, and installation hardware ensure proper suspension operation at the lifted ride height.

In the rear, the kit utilizes high-strength fabricated lift blocks and extended U-bolts to lift and level the vehicle while maintaining proper suspension geometry. Rear damping is handled by FOX 2.0 Performance Series IFP shocks, providing improved ride quality and control both on and off the road.

This complete 100% bolt-on suspension system delivers the performance, durability, and aggressive stance expected from BDS Suspension while maintaining excellent ride quality and compatibility with advanced driver assistance systems like Ford BlueCruise.
