BDS 5 Inch Suspension Lift Kit FOX 2.5 HTO Chevy Silverado & GMC Sierra HD (2020-2026) 4WD

Upgrade the stance, performance, and off-road capability of your truck with the BDS 5 Inch Lift Kit with FOX 2.5 Performance Series HTO shocks, designed for Chevy Silverado and GMC Sierra 2500HD and 3500HD 4WD trucks (2020–2026). This premium suspension system improves ground clearance, suspension geometry, and overall ride quality while maintaining the strength and reliability expected from BDS Suspension.

The system features BDS’s high-clearance design with no torsion bar drop brackets, allowing the torsion bars to mount directly to the top of the lower control arm. This design improves ground clearance and maintains proper suspension strength compared to traditional drop bracket systems.

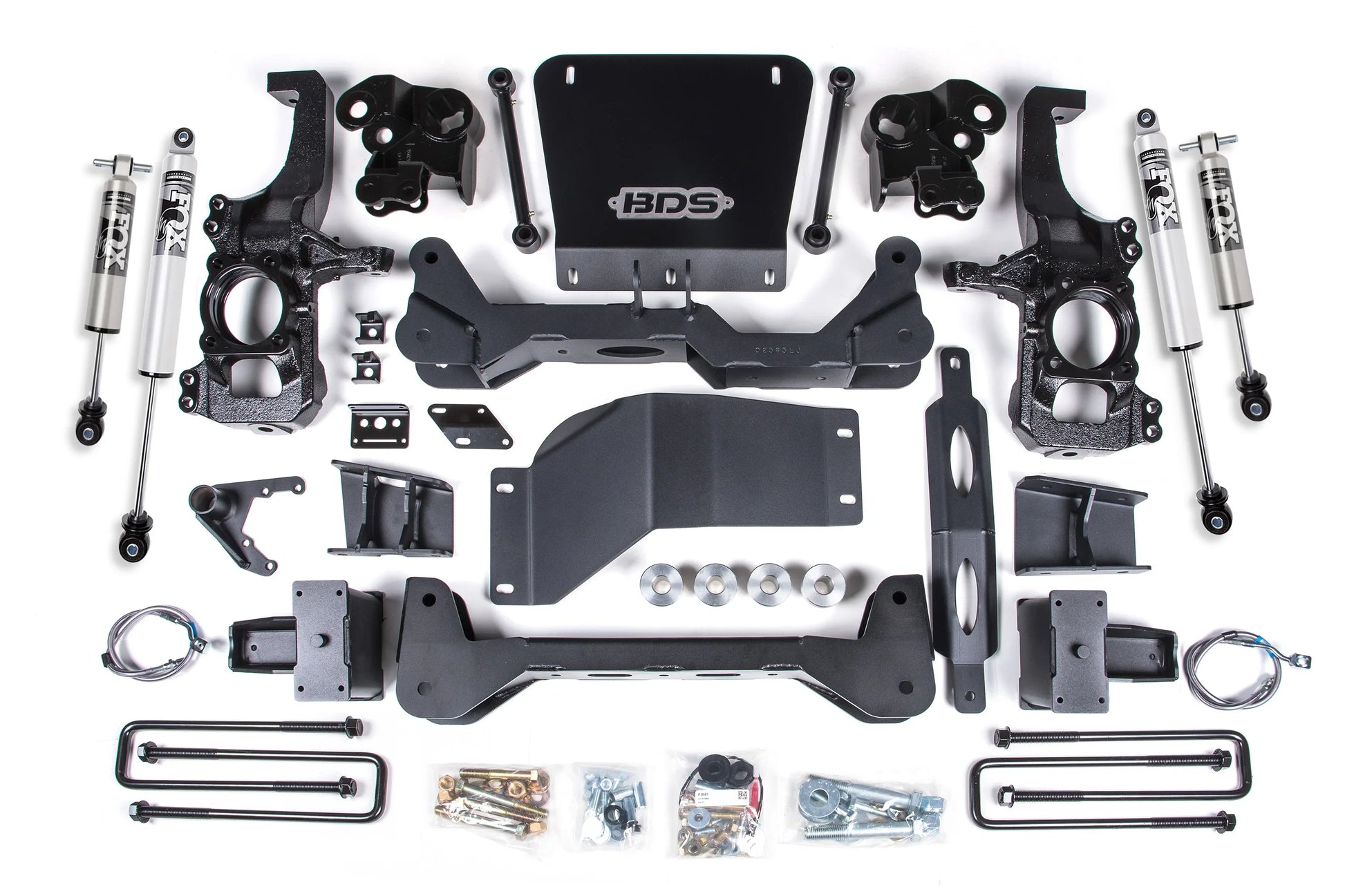

Up front, the kit includes high-arched 1/4-inch thick laser-cut steel crossmembers, differential relocation brackets, and heavy-duty skid plates to protect vital components while improving front driveline angles. Steering geometry is corrected using CNC-machined ductile iron steering knuckles, ensuring proper steering function and stability at the lifted ride height.

In the rear, the system utilizes heavy-duty lift blocks and new U-bolts to raise and level the vehicle while maintaining factory ride quality and load capacity. Brake line and ABS relocation brackets are included to ensure proper line routing after lifting.

This system is paired with FOX 2.5 Performance Series HTO shocks, engineered with position-sensitive damping technology to improve ride comfort and suspension control. The large 2.5-inch aluminum shock body with internal floating piston (IFP) increases oil capacity and heat dissipation while maintaining consistent damping performance in demanding conditions.

The Hydraulic Top Out (HTO) technology reduces harsh top-out impacts and improves ride comfort by slowing shock shaft speed during suspension extension. This makes the system ideal for lifted trucks running larger tires and heavier wheel setups.

This BDS suspension lift kit allows clearance for up to 37-inch tires with proper wheel specifications, making it a great upgrade for Silverado and Sierra HD owners looking for improved off-road capability, ride quality, and aggressive styling.
