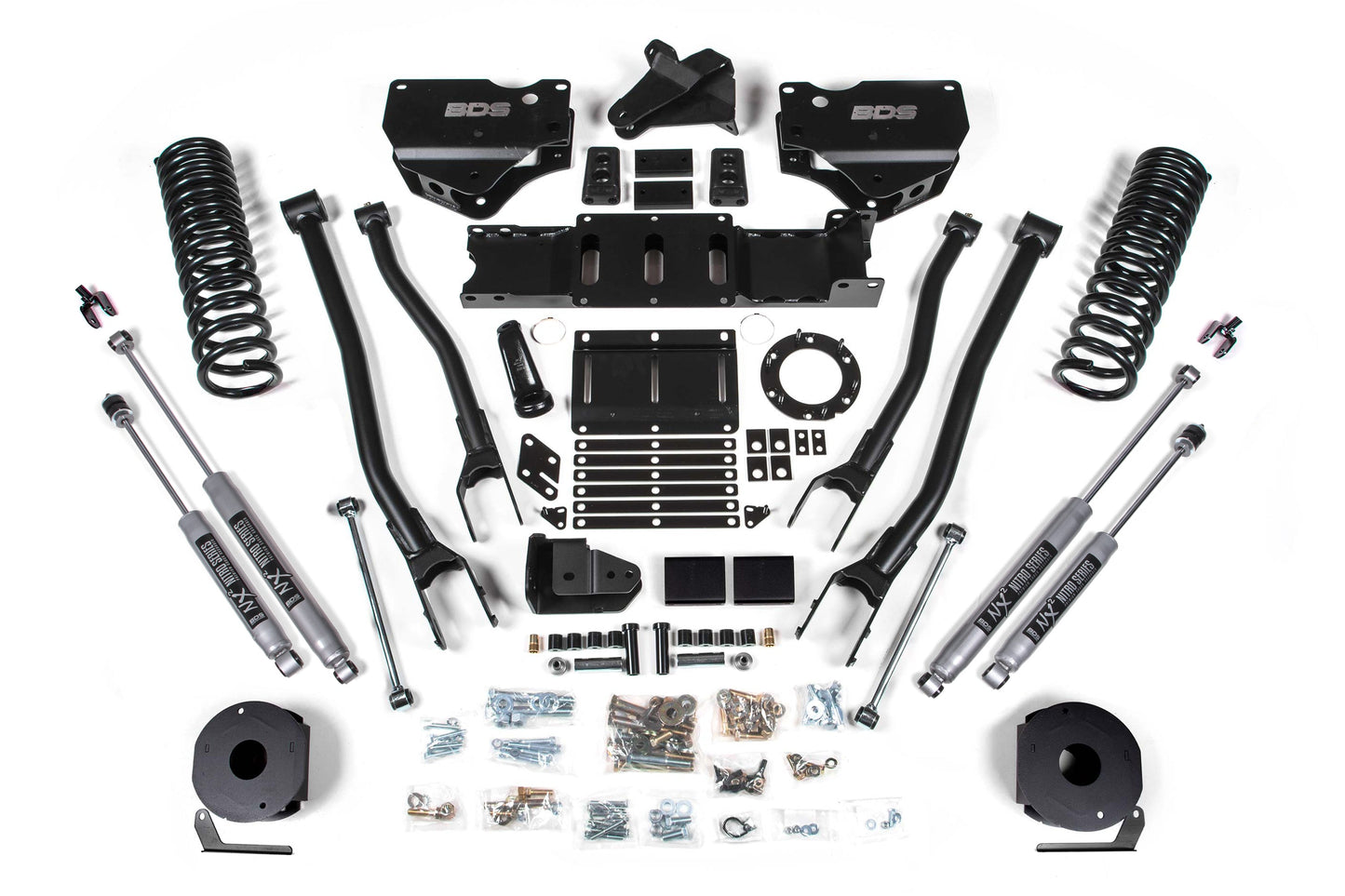

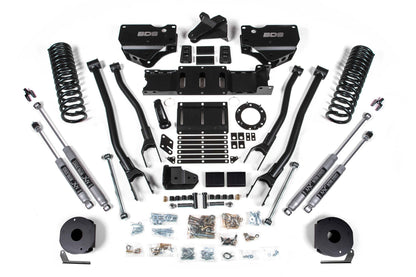

BDS 6 Inch 4-Link Lift Kit Ram 2500 Diesel w/ Rear Air Ride 4WD (2019–2024)
BDS 6 Inch 4-Link Lift Kit Ram 2500 Diesel w/ Rear Air Ride 4WD (2019–2024)
Upgrade the capability and stance of your 2019–2024 Ram 2500 diesel 4WD equipped with factory rear air ride using the BDS 6 Inch 4-Link Lift Kit. Engineered for durability, improved suspension geometry, and off-road performance, this system delivers increased ground clearance while maintaining ride quality and proper driveline alignment.
The front suspension replaces the factory radius arm design with a heavy-duty 4-link conversion system, improving suspension articulation, axle positioning, and long-term durability. This conversion utilizes high-strength upper and lower control arms with precision-engineered ¼-inch steel mounting brackets, helping maintain proper caster angles throughout suspension travel.
To achieve the lift height, the kit includes diesel-specific Pro-Ride progressive rate coil springs, engineered to deliver consistent lift while maintaining a smooth and predictable ride across varying terrain conditions. These springs are constructed from high tensile steel to ensure long-term reliability and performance.
Steering geometry is corrected using a forged drop pitman arm and heavy-duty track bar relocation bracket, ensuring proper steering alignment while keeping the front axle centered at the new ride height.
Because of the increased suspension height, the kit includes a transfer case indexing ring and heavy-duty transmission crossmember to correct front driveline angles while allowing continued use of the factory front driveshaft.
In the rear, this system is specifically engineered for Ram 2500 trucks equipped with factory rear air ride, utilizing heavy-duty air suspension spacers, rear suspension brackets, and extended hardware to maintain proper air suspension function and ride height calibration.

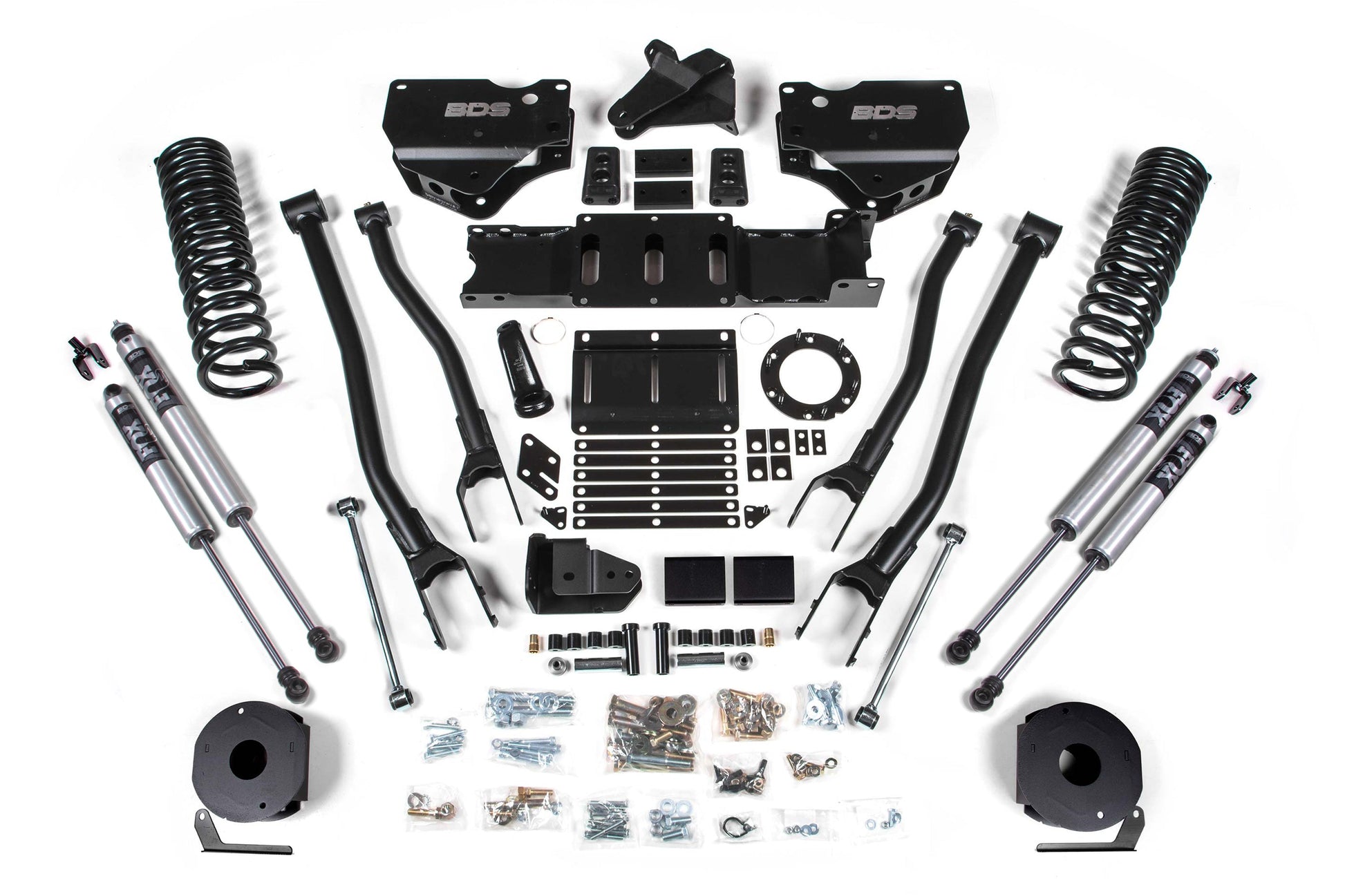

The suspension system is completed with NX2 Nitro Series shocks or optional FOX Performance Series shocks, delivering improved damping control and ride comfort both on and off the road.
This complete bolt-on suspension system increases ground clearance while maintaining correct suspension geometry and allows clearance for up to 37-inch tires, giving your Ram 2500 a more aggressive stance and improved off-road capability.
