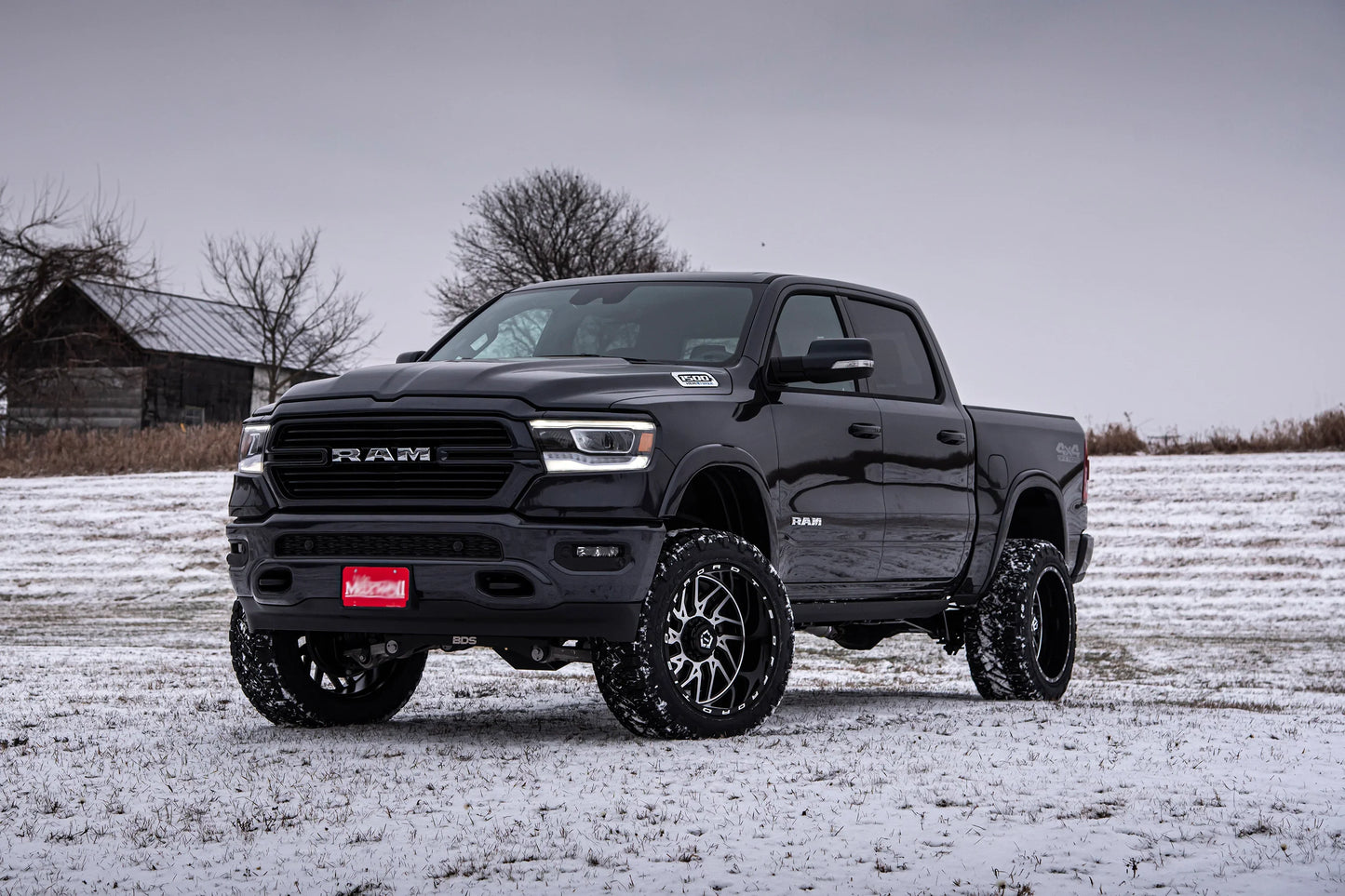

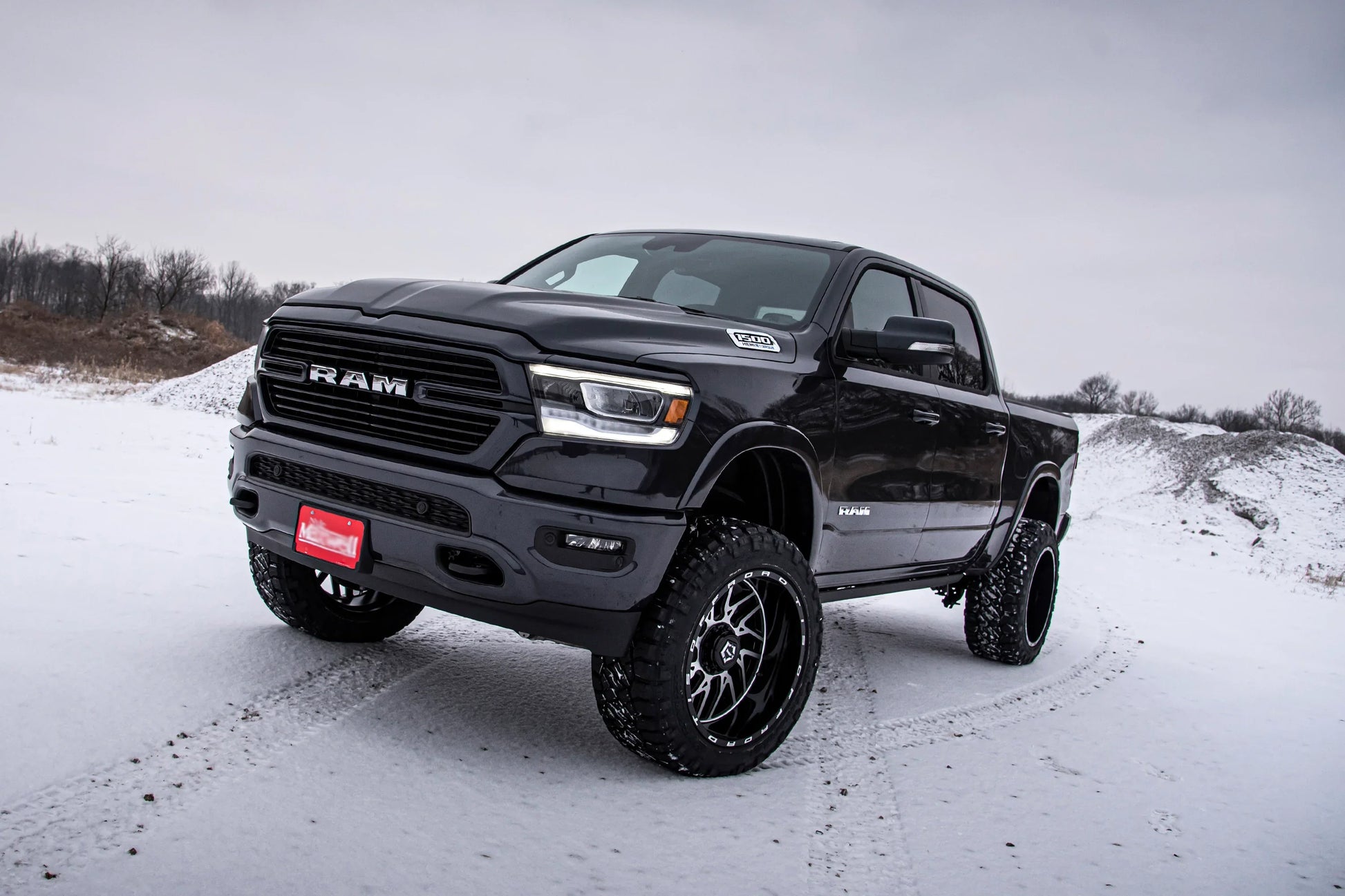

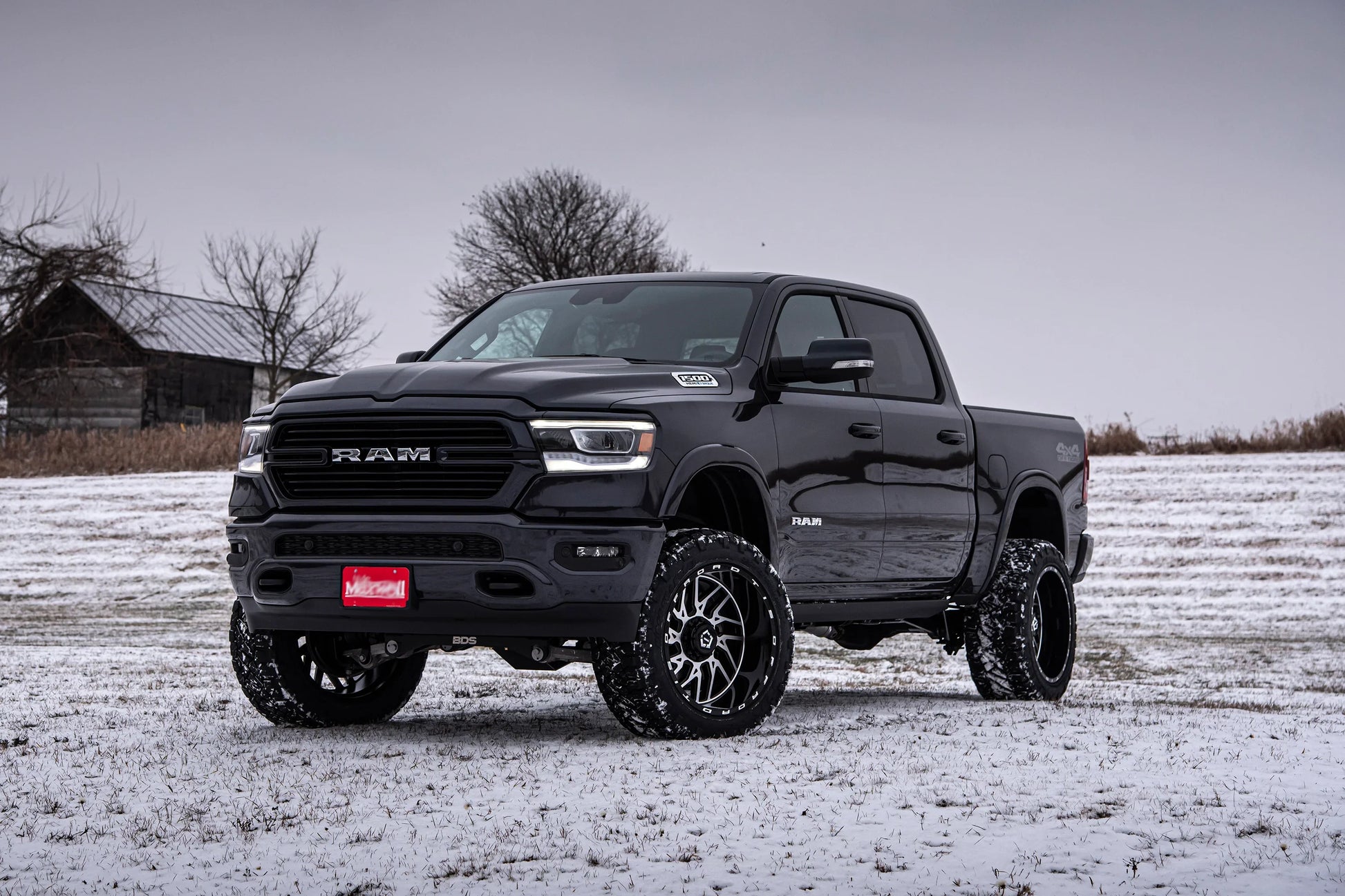

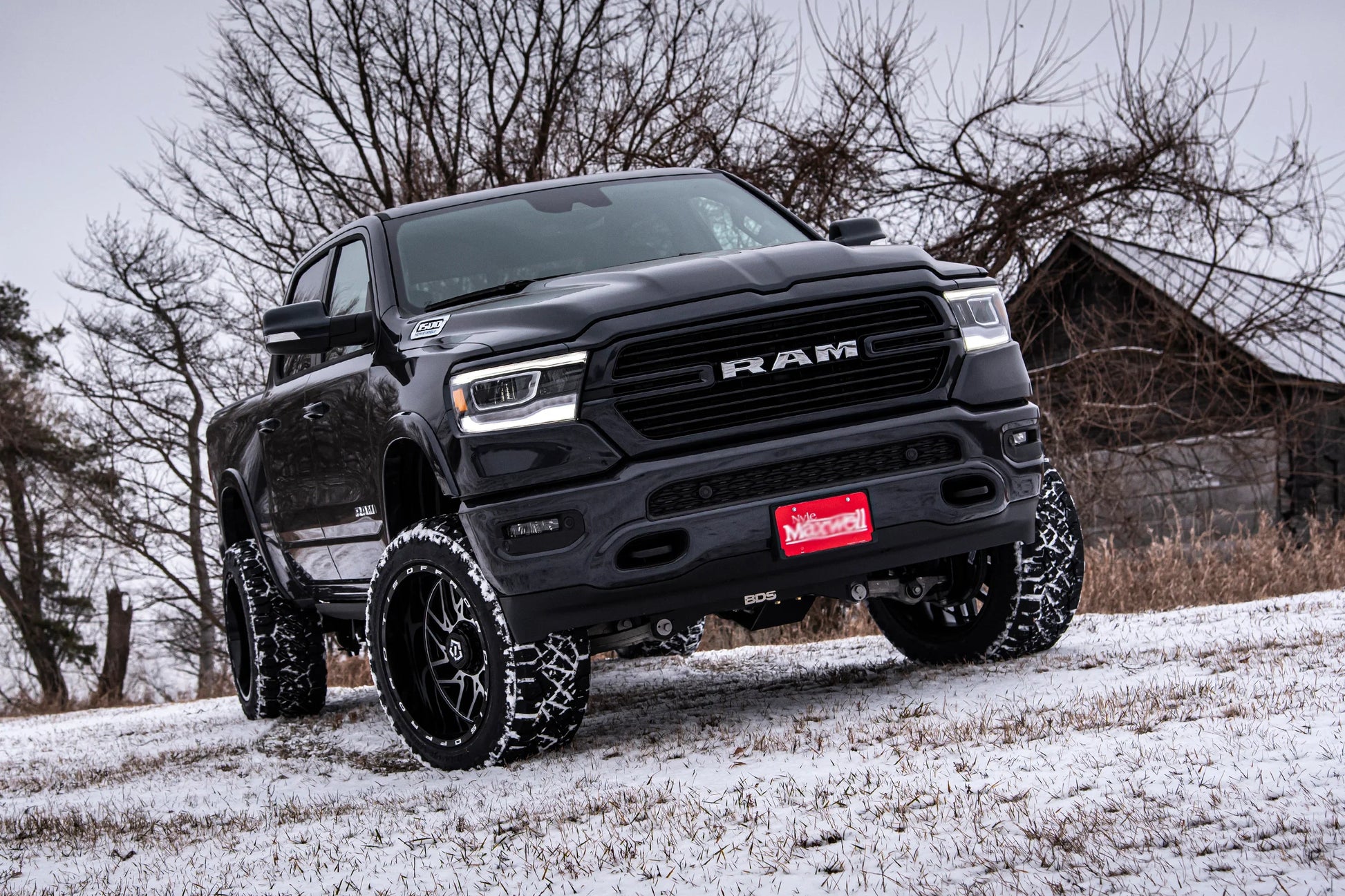

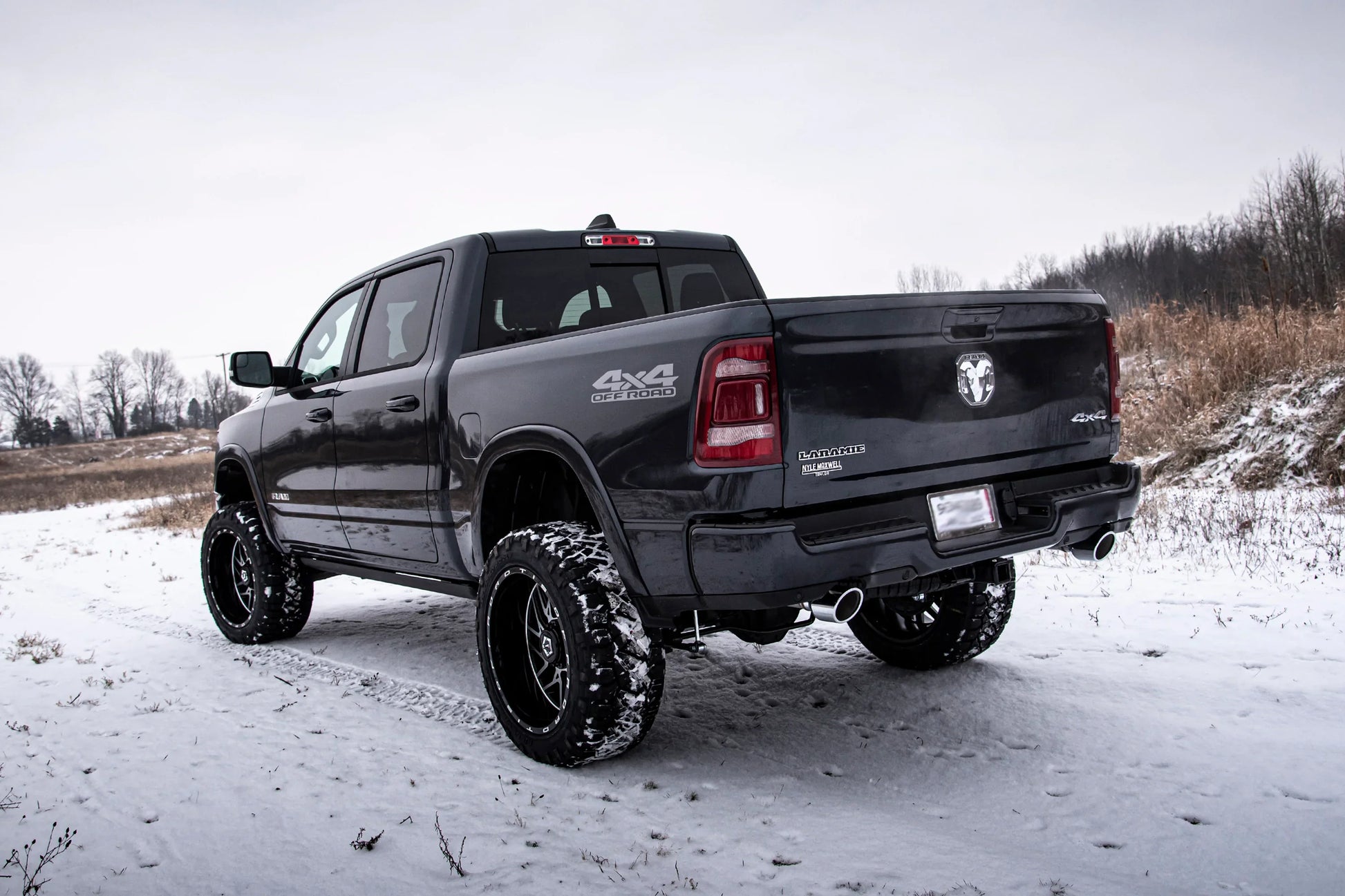

BDS 6 Inch Lift Kit Ram 1500 4WD (2019–2024)

Upgrade the stance, ground clearance, and off-road capability of your 2019–2024 Ram 1500 4WD truck with the BDS 6 Inch Lift Kit. Engineered for strength, performance, and ride quality, this complete suspension system delivers increased lift while maintaining proper suspension geometry and on-road drivability.

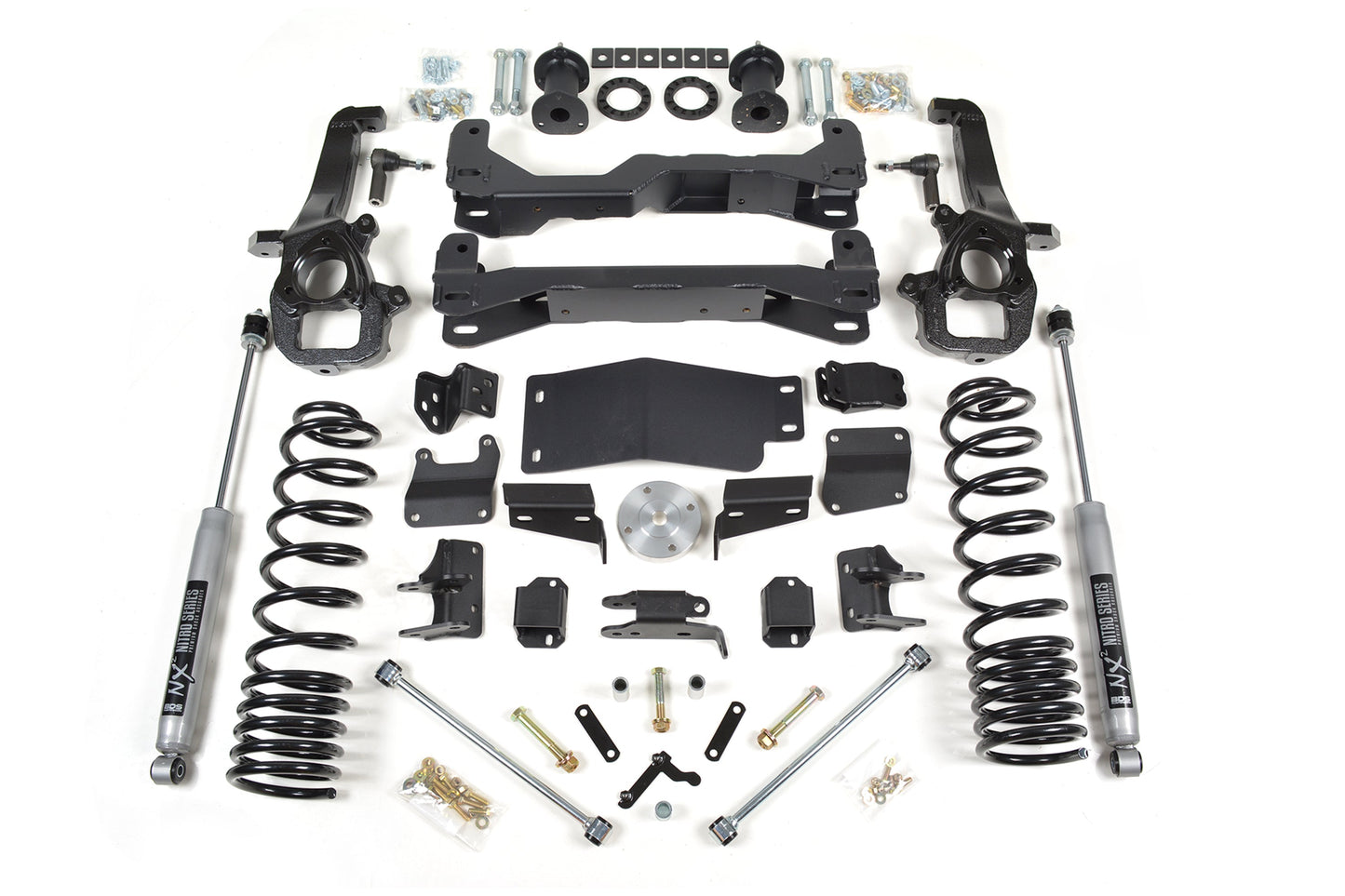

The front suspension system utilizes top-mounted strut spacers, high-clearance crossmembers, differential relocation brackets, and heavy-duty skid plates designed to improve strength and off-road protection. Steering geometry is corrected using CNC-machined ductile iron steering knuckles and replacement tie rod ends, ensuring proper alignment and maintaining compatibility with the factory ESC system.

Heavy-duty ¼-inch thick laser-cut crossmembers provide exceptional strength while maximizing ground clearance. Combined with the integrated skid plate system, these components create a rigid subframe that protects vital drivetrain components during demanding off-road use.

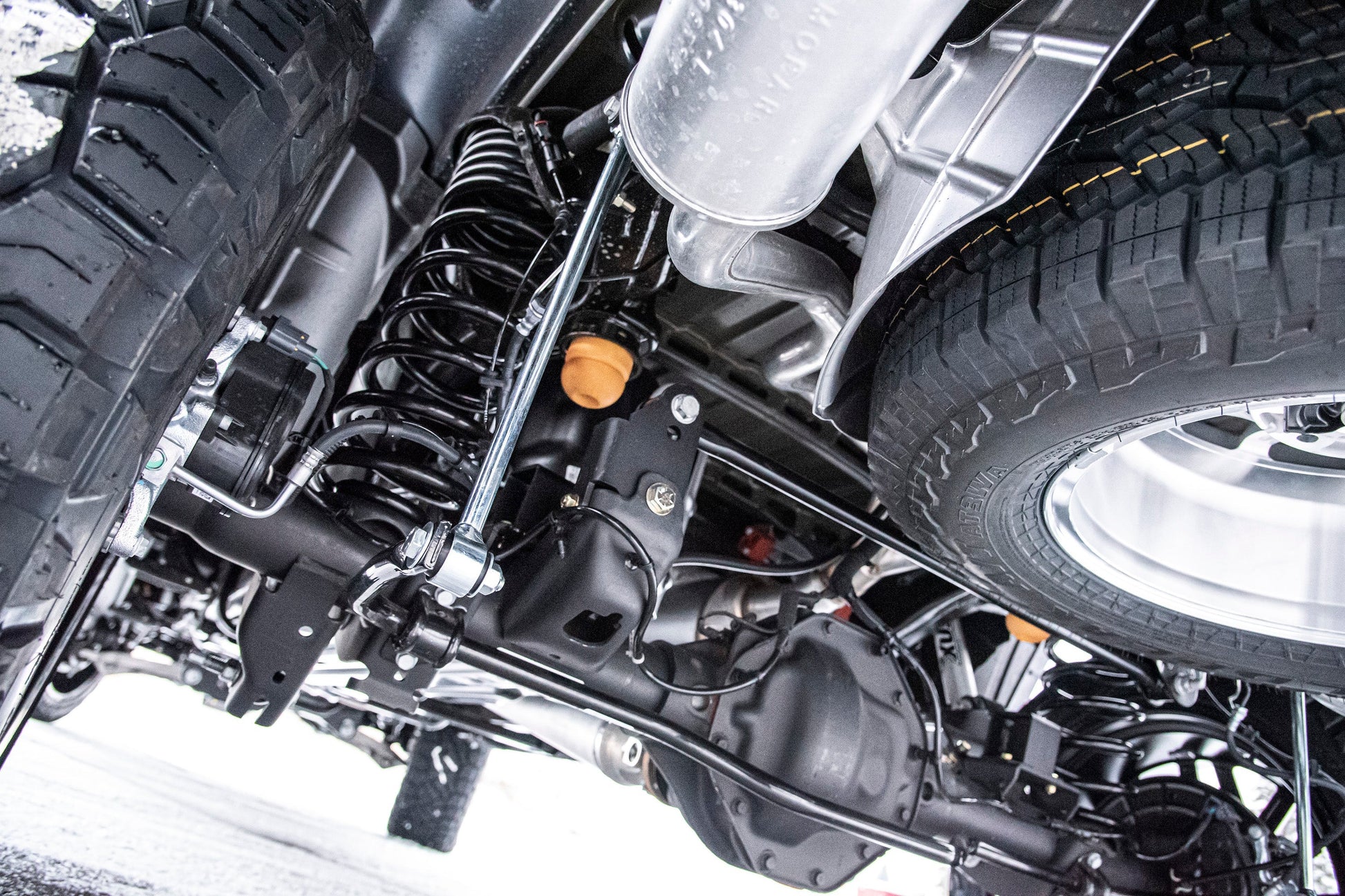

In the rear, the system uses progressive-rate Pro-Ride coil springs, rear upper control arm relocation brackets, track bar relocation brackets, bump stop extensions, and sway bar links to maintain proper suspension geometry and ride quality at the lifted height.

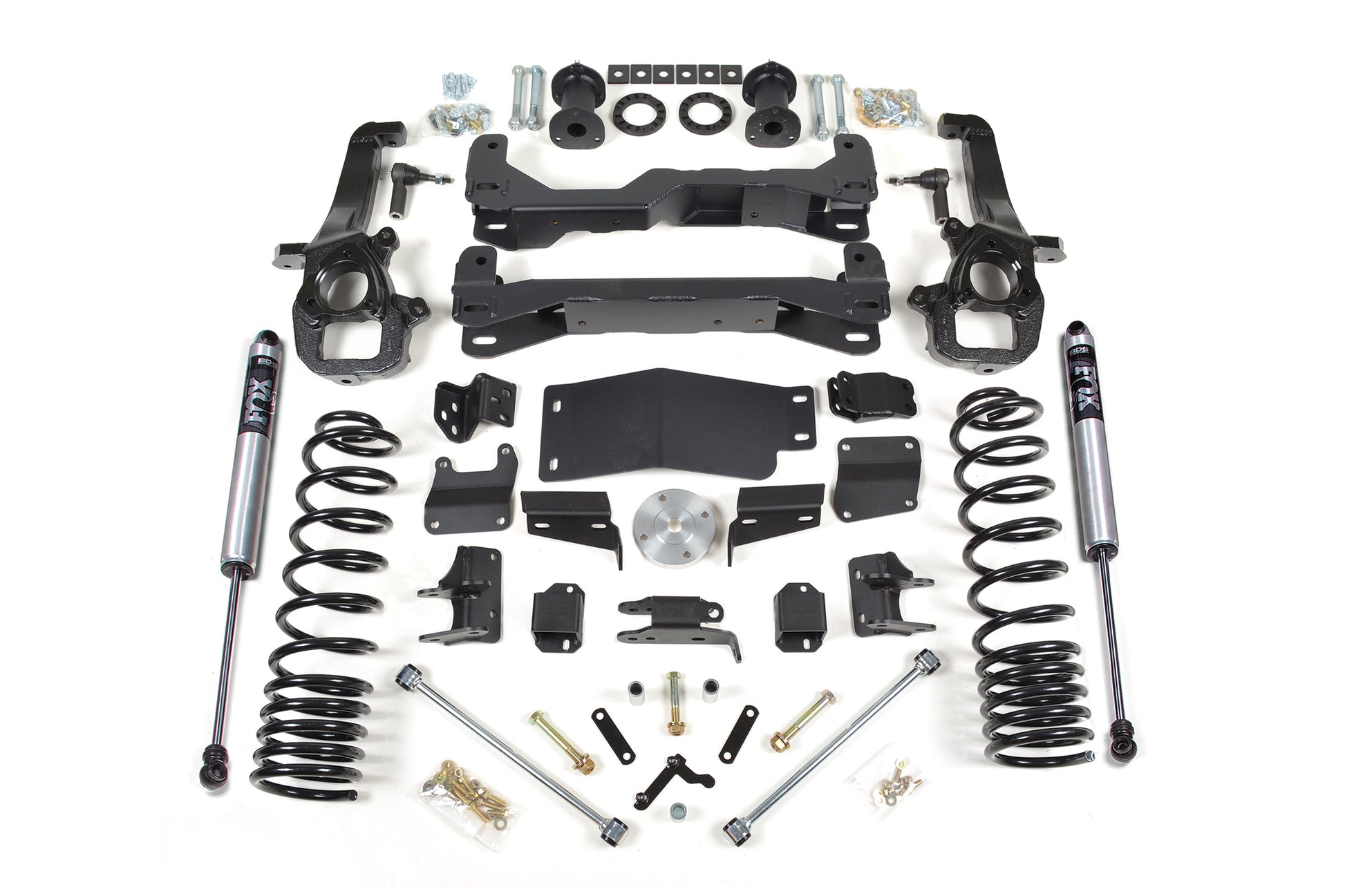

The suspension system is paired with NX2 Nitro Series gas shocks or optional FOX 2.0 Performance Series shocks, providing improved damping control, ride comfort, and off-road performance.

Designed as a complete bolt-on suspension system, this BDS lift kit delivers increased durability, improved suspension performance, and clearance for up to 37-inch tires, giving your Ram 1500 the aggressive lifted stance and capability it deserves.
