BDS 6 Inch Radius Arm Lift Kit Ram 3500 Diesel w/ Rear Air Ride 4WD (2019–2024)
BDS 6 Inch Radius Arm Lift Kit Ram 3500 Diesel w/ Rear Air Ride 4WD (2019–2024)

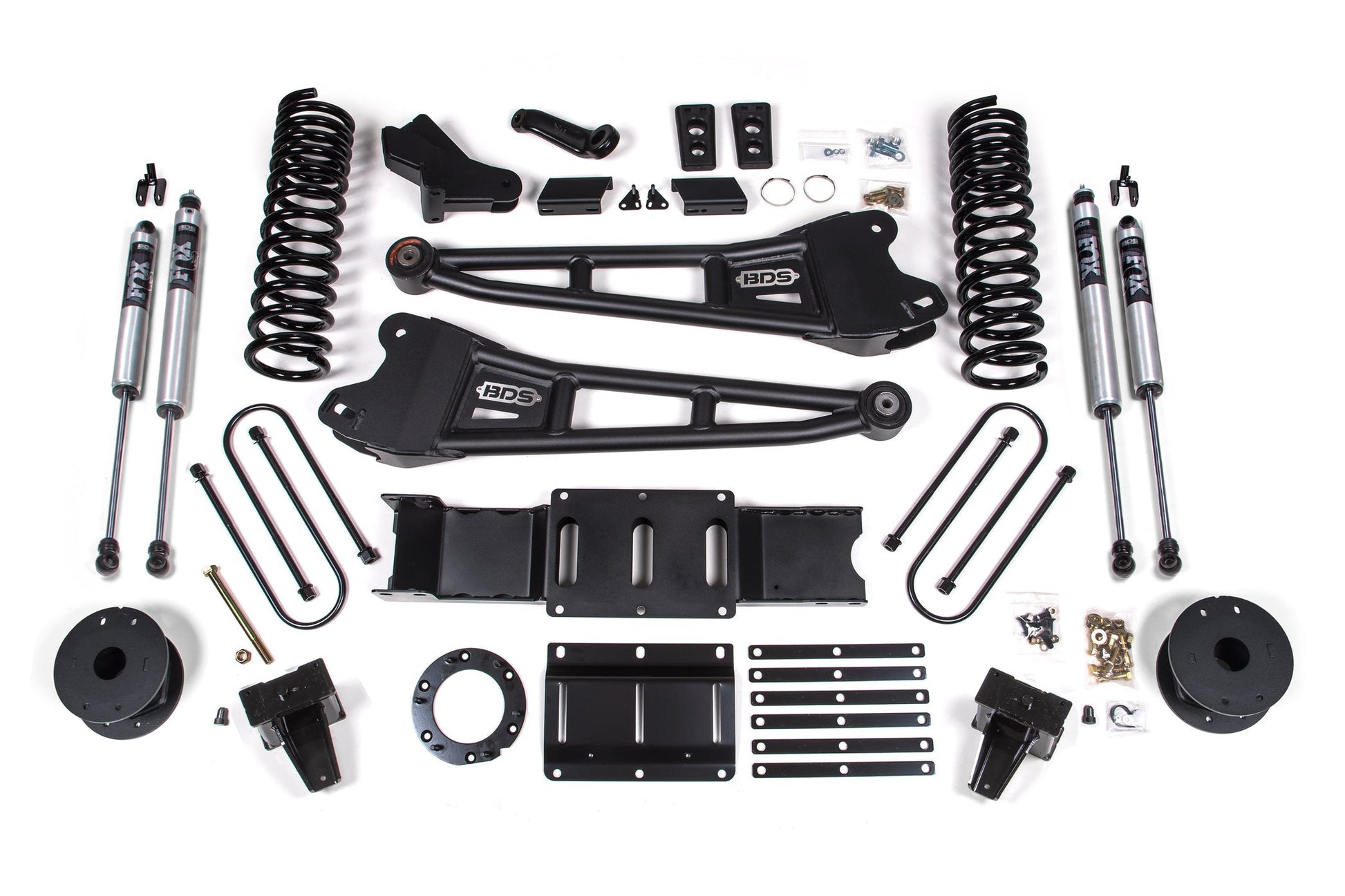

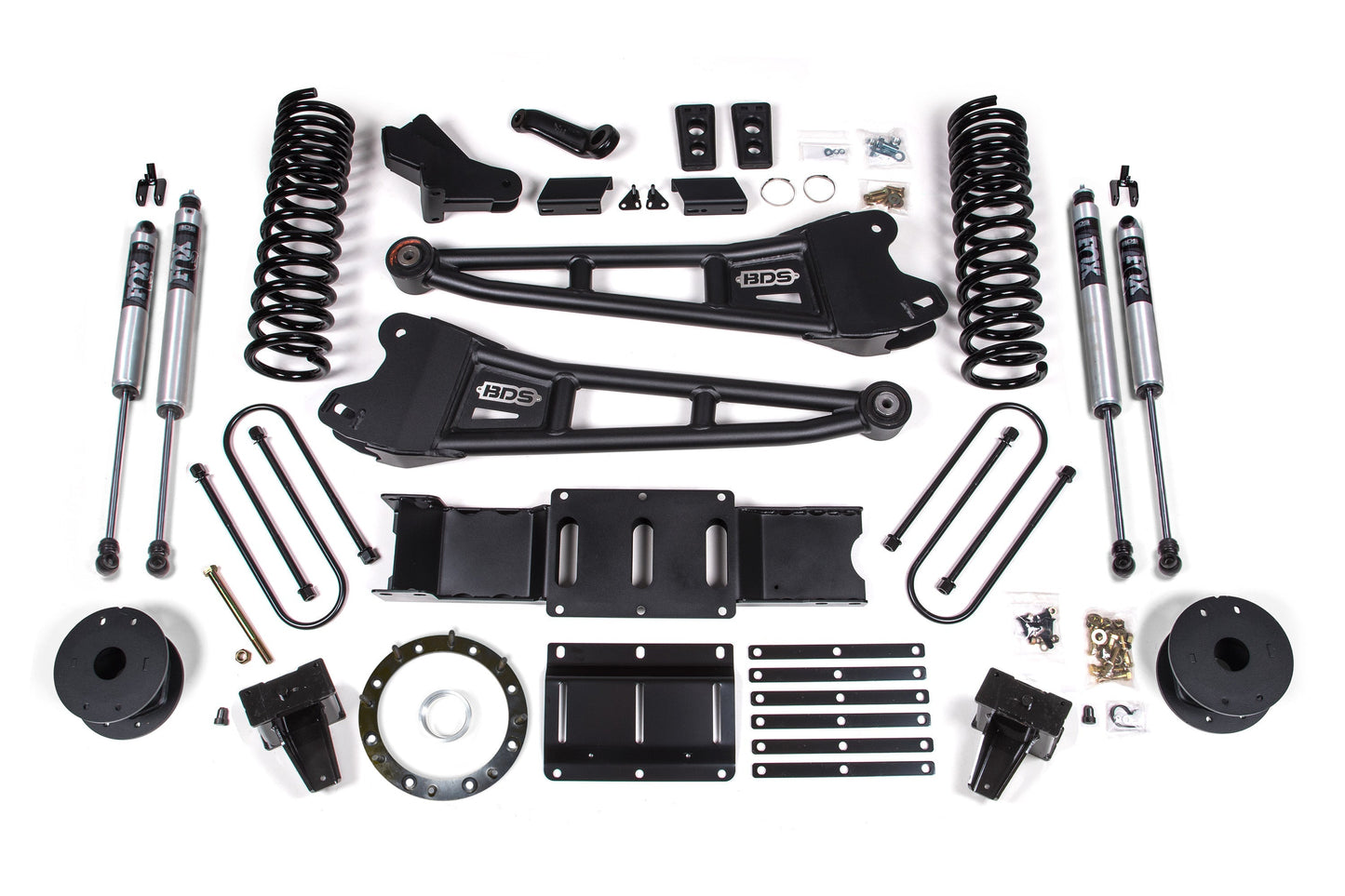

Raise the stance and performance of your 2019–2024 Ram 3500 diesel 4WD equipped with factory rear air ride with the BDS 6 Inch Radius Arm Lift Kit. Designed for strength, ride quality, and improved off-road capability, this suspension system increases ground clearance while maintaining proper suspension geometry and driveline alignment.
The front suspension system includes diesel-specific Pro-Ride progressive rate coil springs engineered to provide the correct lift height while maintaining a smooth and predictable ride across a wide range of terrain. These springs are constructed from high-tensile steel and designed with properly matched wire diameter to ensure durability without premature coil bind.
To replace the factory stamped steel components, the kit includes heavy-duty tubular radius arms that improve suspension strength and handling while allowing caster adjustment for proper alignment at lifted ride heights. These arms mount in the factory locations and utilize OE-style rubber bushings for quiet, maintenance-free operation.
Steering geometry is corrected using a forged drop pitman arm and heavy-duty track bar relocation bracket, ensuring proper steering linkage alignment while keeping the front axle centered throughout suspension travel.
Because of the increased ride height, the system includes a transfer case indexing ring and heavy-duty transmission crossmember to correct front driveline angles while allowing continued use of the factory front driveshaft.
In the rear, the system is specifically engineered for Ram 3500 trucks equipped with factory auto-level rear air suspension, utilizing heavy-duty air bag spacers, lift blocks, and extended hardware to maintain proper suspension travel and ride height calibration.

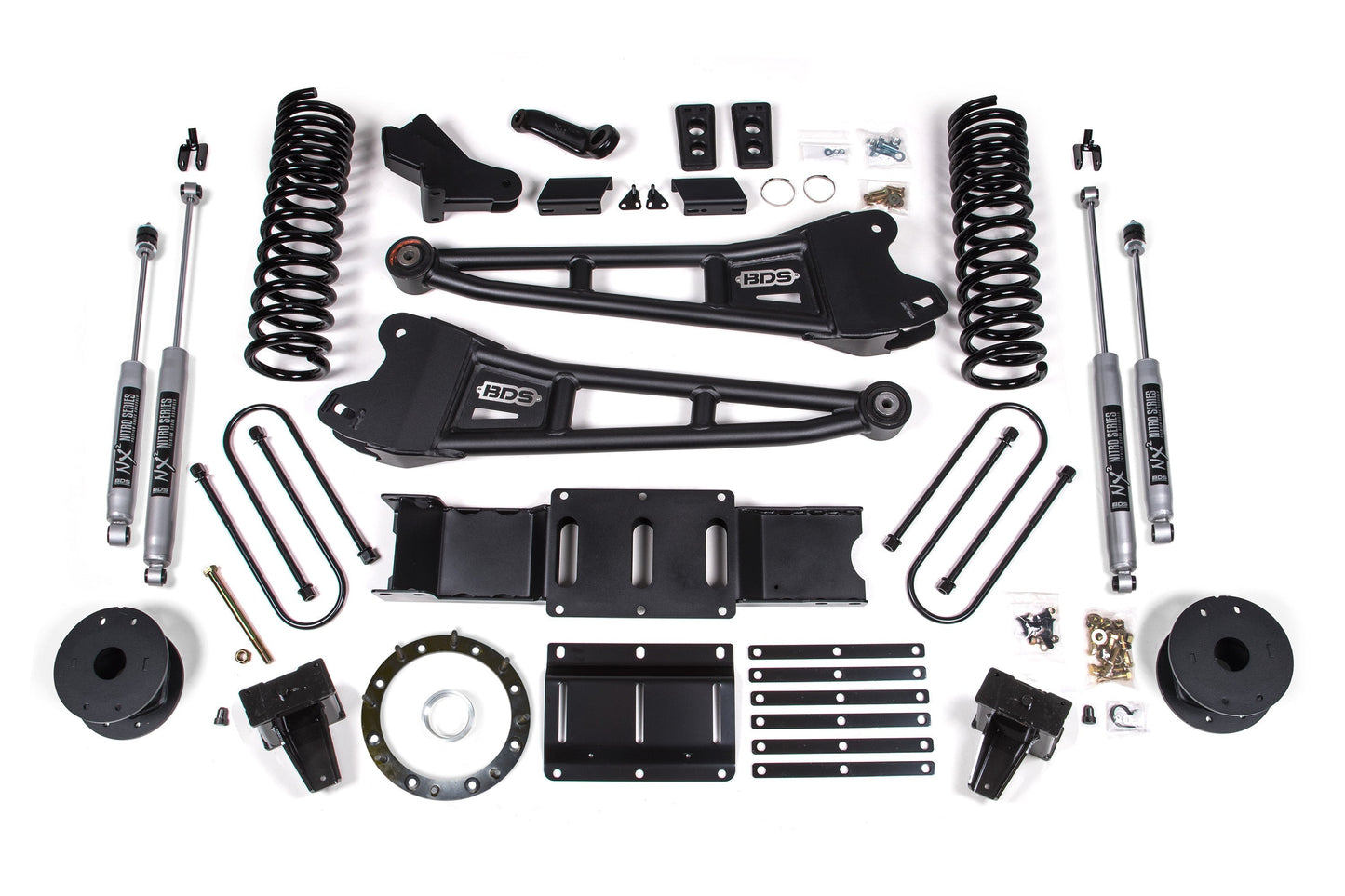

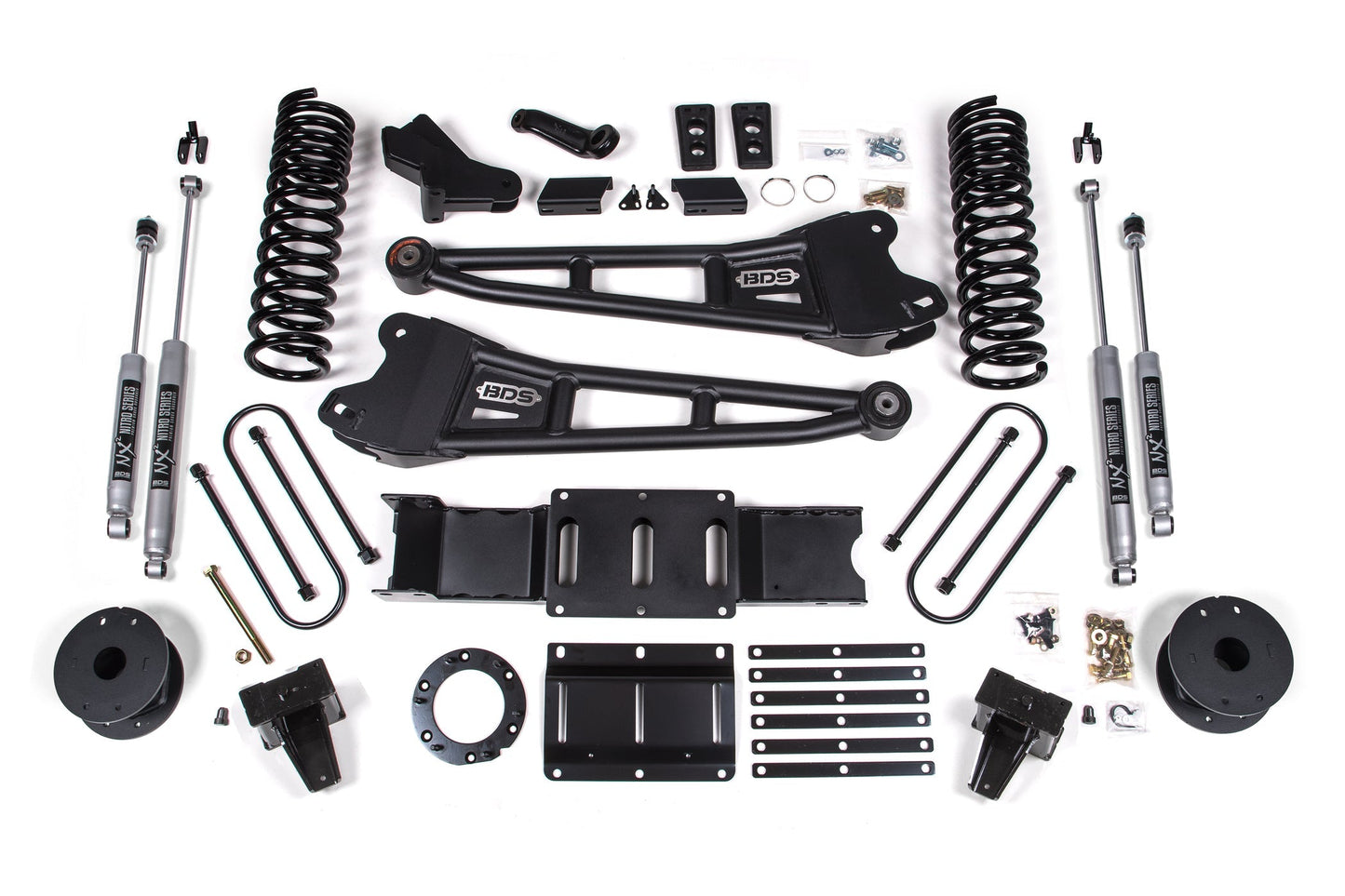

The suspension is completed with NX2 Nitro Series shocks or optional FOX Performance Series shocks, providing improved damping performance and ride control both on and off road.
This complete bolt-on suspension system allows clearance for up to 37-inch tires, giving your Ram 3500 a more aggressive stance while maintaining excellent drivability and capability.
