BDS 7 Inch Radius Arm Lift Kit FOX 2.5 Performance Elite Coilover Conversion for Ford F350 Super Duty DRW Diesel 4WD (2023–2026)
BDS 7 Inch Radius Arm Lift Kit FOX 2.5 Performance Elite Coilover Conversion for Ford F350 Super Duty DRW Diesel 4WD (2023–2026)

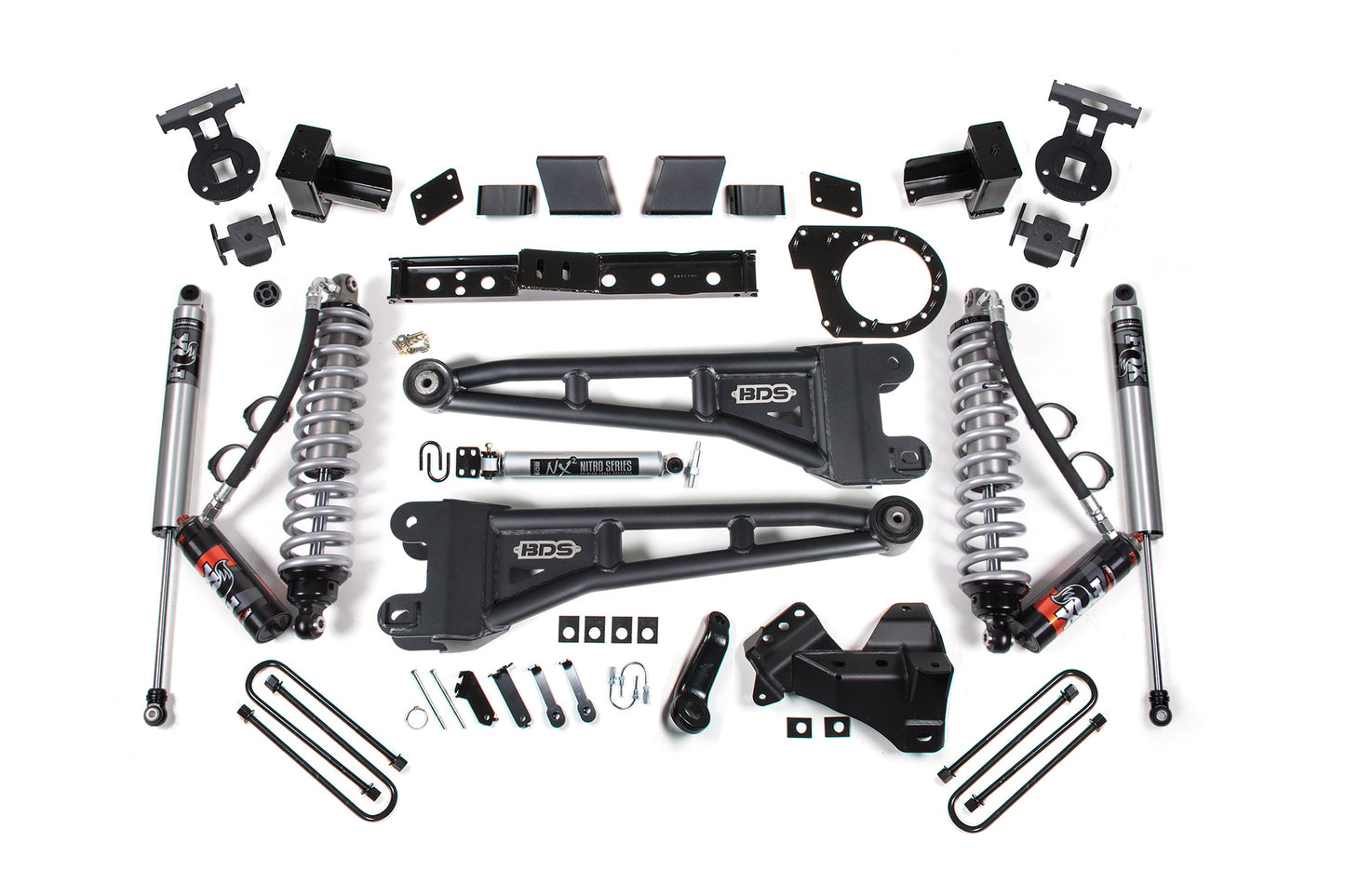

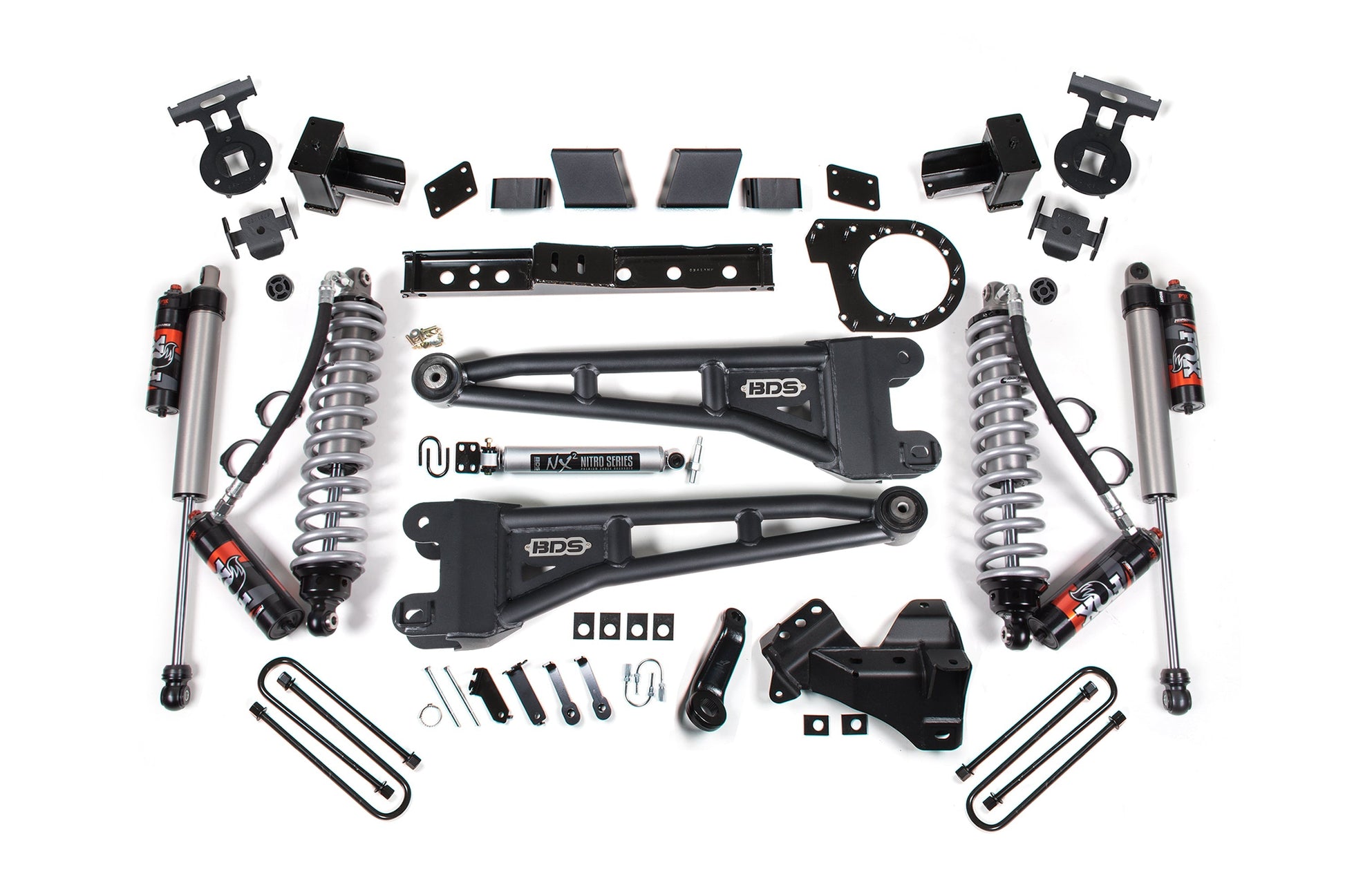

Take your 2023–2026 Ford F350 Super Duty DRW diesel 4WD to the next level with the BDS 7 Inch Radius Arm Lift Kit featuring FOX 2.5 Performance Elite Coilover Conversion. Built for drivers who demand maximum performance and durability, this premium suspension system dramatically improves ride quality, off-road capability, and overall stance while allowing clearance for aggressive tire setups.
The centerpiece of this system is the FOX 2.5 Performance Elite coilover conversion, delivering race-inspired suspension performance with increased damping capacity and superior control. These shocks feature remote reservoirs and Dual Speed Compression (DSC) adjusters, allowing drivers to fine-tune suspension performance for changing terrain, loads, and driving conditions.
Up front, the kit includes heavy-duty tubular radius arms that replace the factory stamped steel arms to correct caster alignment while improving strength and articulation. Combined with diesel-specific Pro-Ride coil springs, the system delivers smooth ride quality across both highway driving and rugged off-road terrain.
To maintain proper steering geometry at the lifted height, the system incorporates a track bar relocation bracket and forged drop pitman arm, ensuring stable steering response and reduced bump steer. Additional components such as sway bar relocation brackets, brake line brackets, and mounting hardware ensure proper suspension operation and reliability.
Because of the increased lift height, the system includes a transfer case indexing ring to maintain proper front driveshaft operating angles and drivetrain performance.
In the rear, the system uses high-strength fabricated lift blocks with extended U-bolts to level the vehicle while maintaining towing capability and factory load capacity. The suspension system is completed with FOX 2.5 Performance Elite remote reservoir rear shocks, delivering exceptional ride control and off-road damping performance.
With clearance for up to 38-inch tires, this BDS lift kit provides a commanding stance, increased ground clearance, and the performance needed for serious off-road adventures or heavy-duty work.
