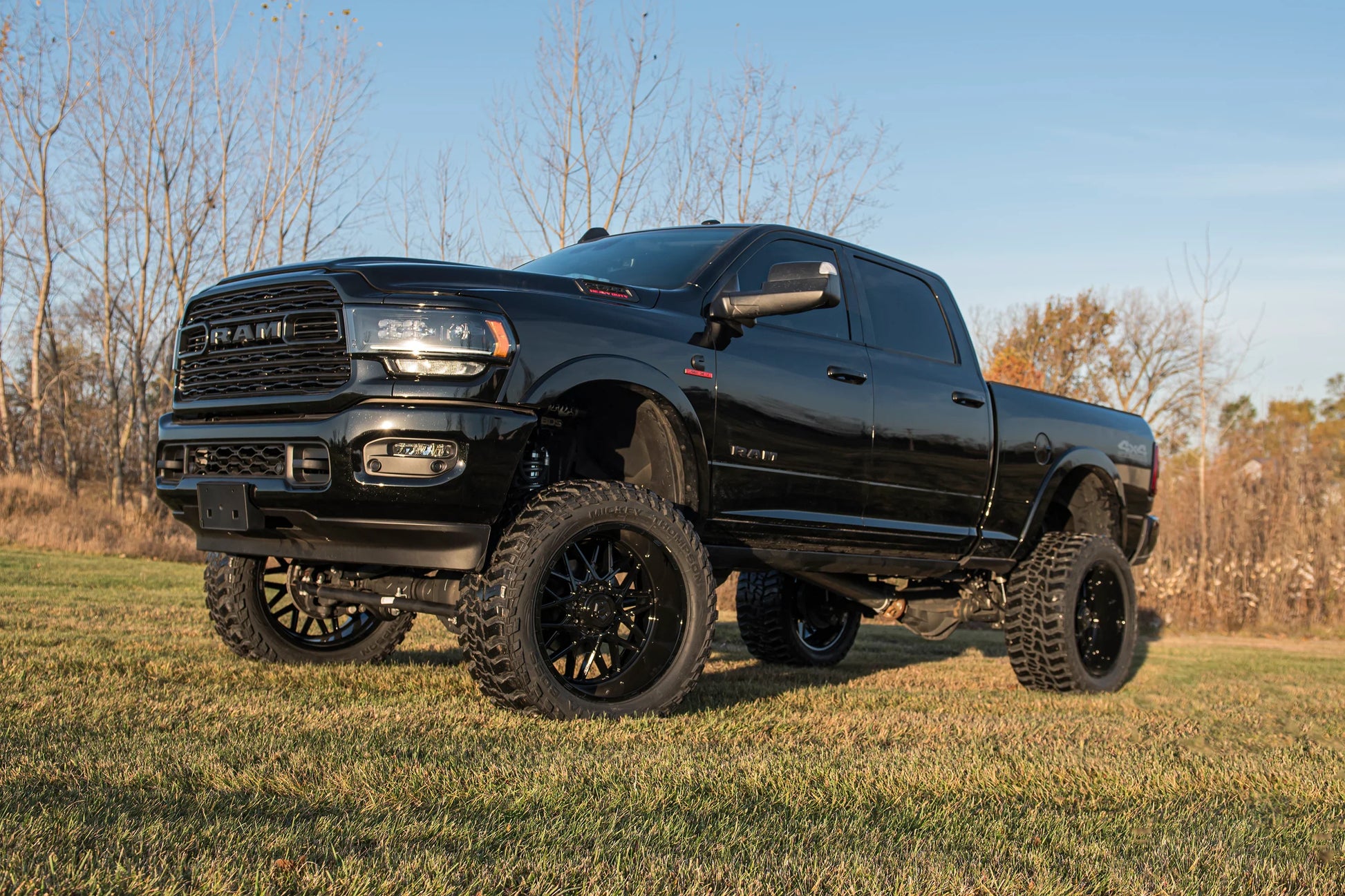

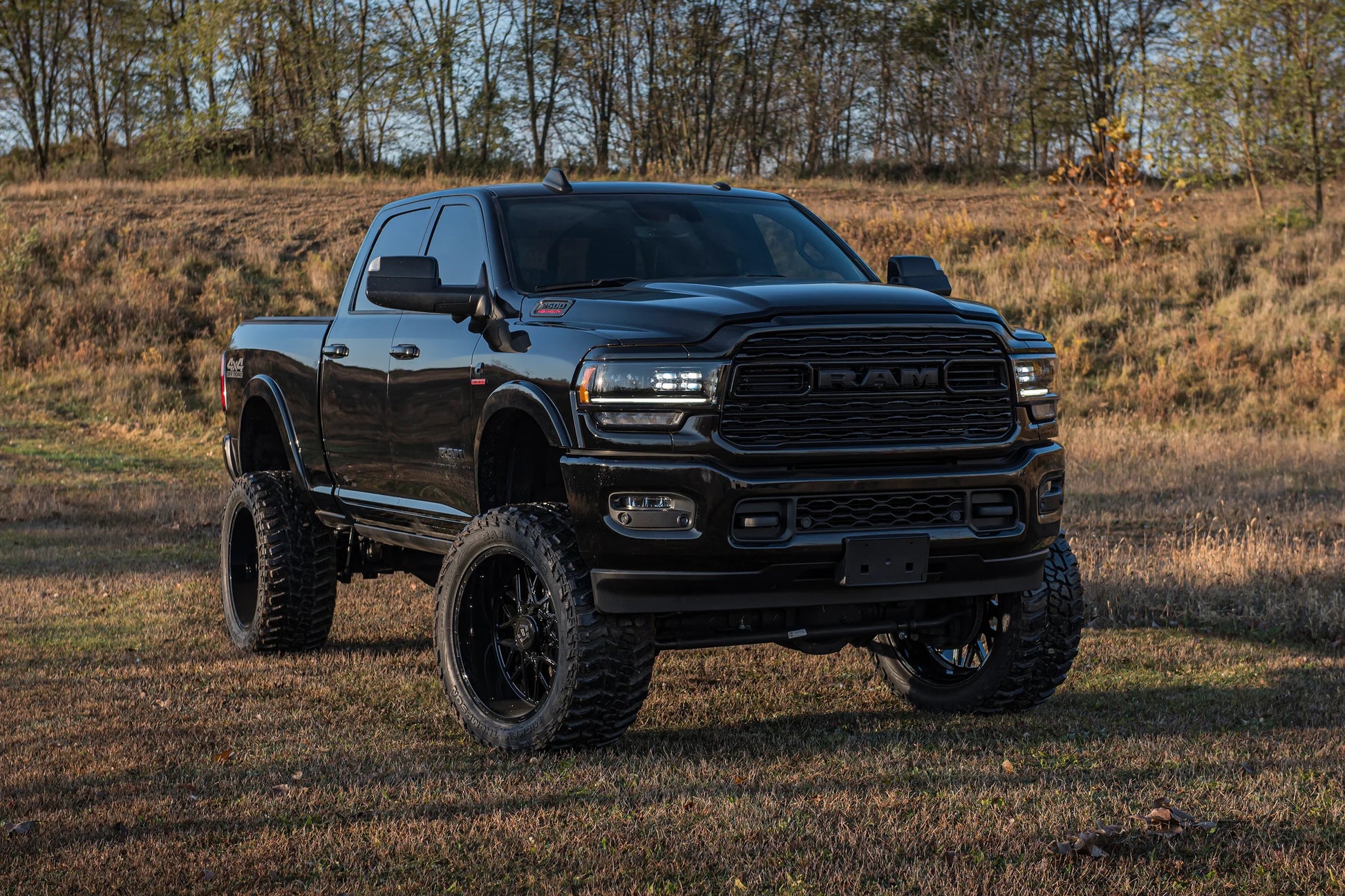

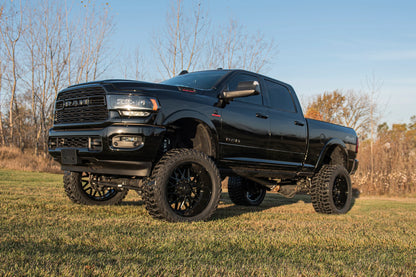

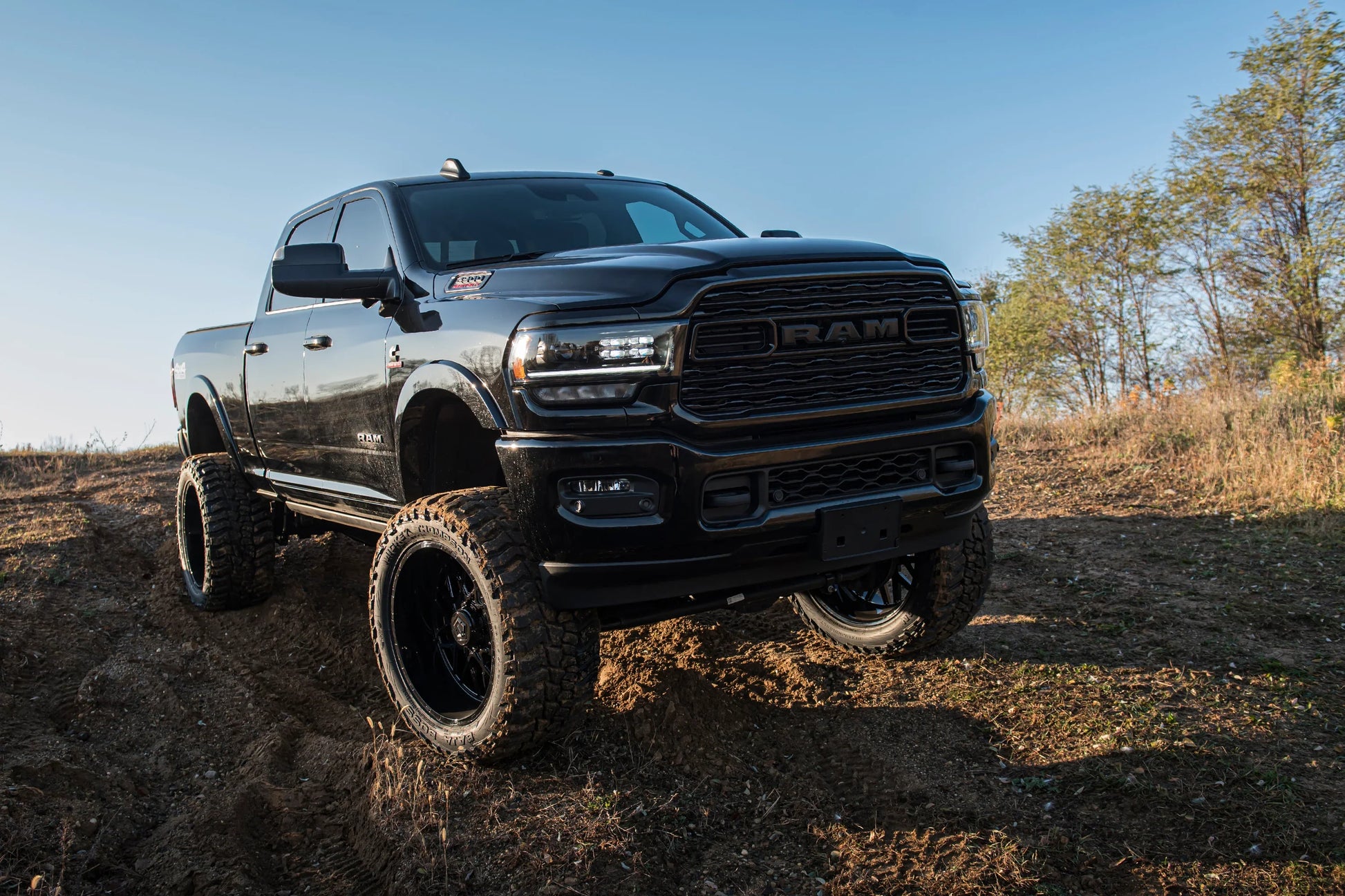

BDS 8 Inch 4-Link Lift Kit for Ram 2500 Diesel 4WD (2019-2024)

Upgrade your heavy-duty truck with the BDS 8 Inch 4-Link Lift Kit designed for Ram 2500 diesel 4WD trucks (2019-2024). Engineered to improve stance, suspension performance, and off-road capability, this premium suspension system provides the clearance needed to run larger tires while maintaining excellent ride quality and durability.

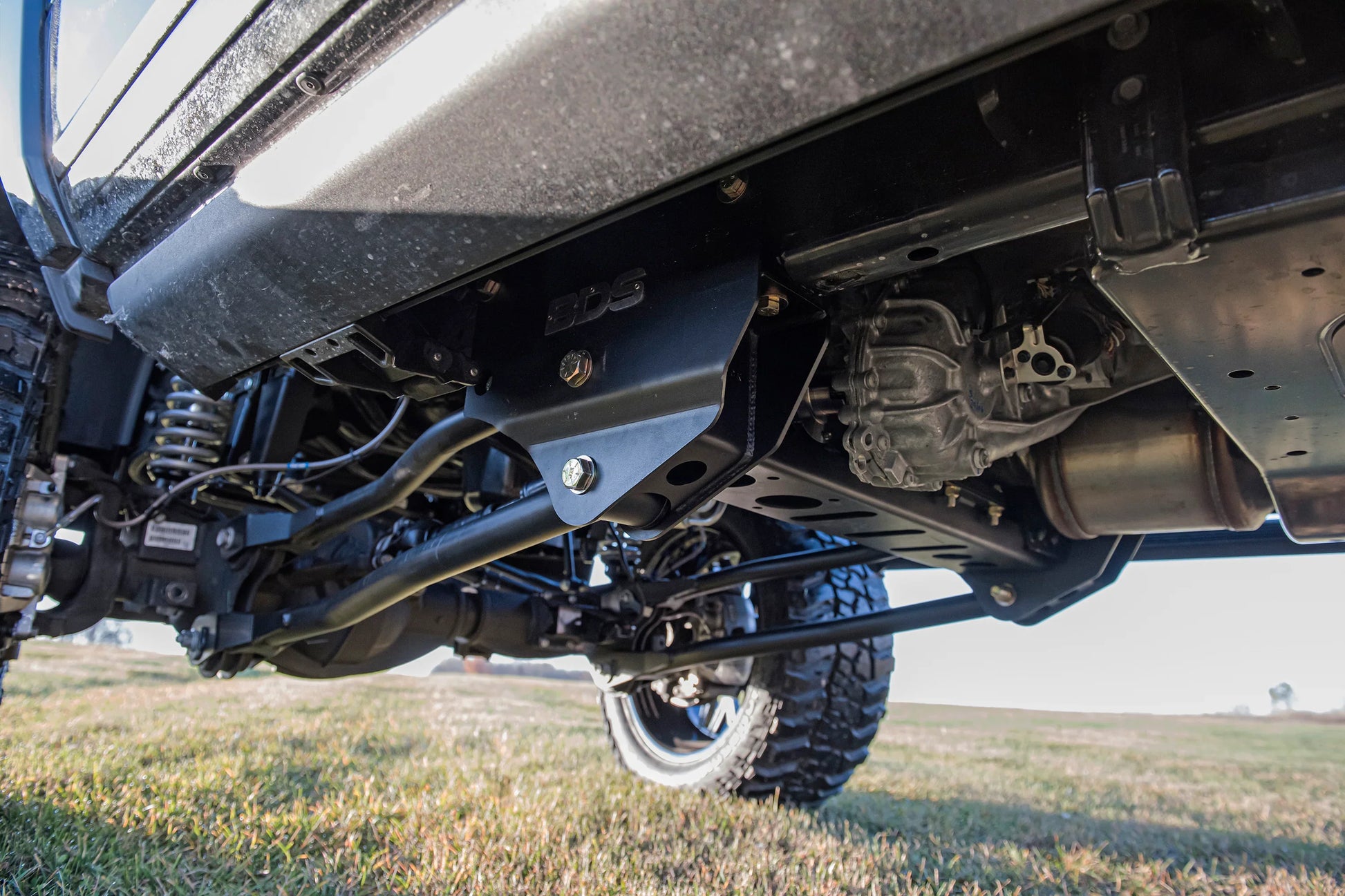

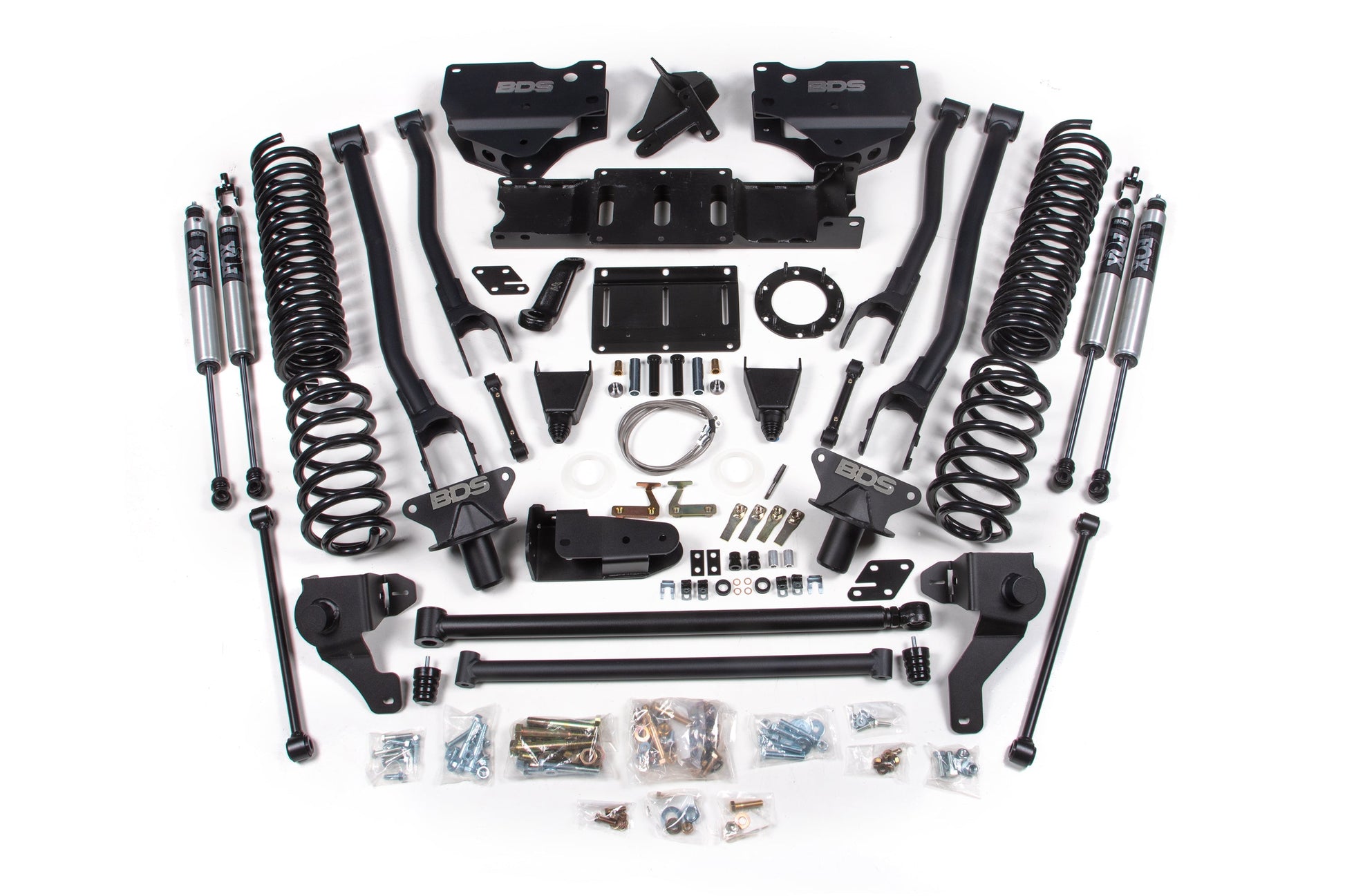

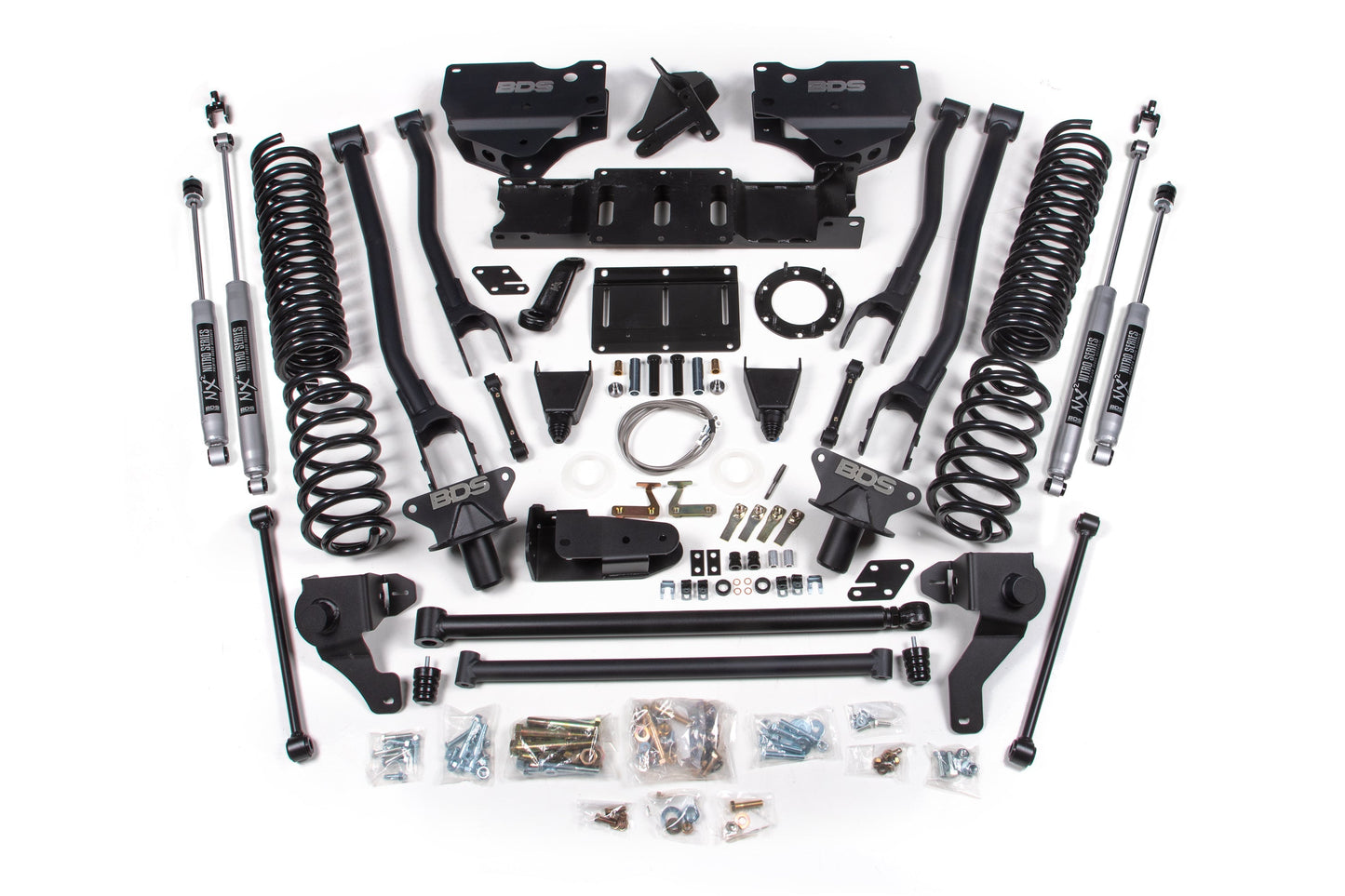

The system replaces the factory radius arm suspension with a heavy-duty 4-link control arm conversion, improving suspension geometry, handling stability, and overall strength. High-strength mounting brackets and control arms help maintain proper caster throughout suspension travel while increasing durability in demanding driving conditions.

Diesel-specific Pro-Ride progressive rate coil springs deliver the proper lift height while maintaining smooth ride quality on and off the road. Steering geometry is corrected using a forged drop pitman arm and heavy-duty track bar bracket to maintain predictable steering response after lifting.

To maintain proper driveline angles at this lift height, the kit includes a transfer case indexing ring and upgraded transmission crossmember. In the rear, the system relocates the coil spring mounting position to improve suspension stability and eliminate coil bowing while maintaining load-carrying capability and ride comfort.

A rear track bar relocation system and adjustable track bar ensure the axle remains centered under the vehicle. Extended sway bar links and high-performance NX2 Nitro or FOX 2.0 Performance shocks complete the system, delivering improved ride control both on-road and off-road.

This BDS lift kit allows clearance for up to 40-inch tires with the proper wheel and tire setup, making it an ideal suspension upgrade for Ram 2500 owners looking for aggressive styling and improved off-road capability.
