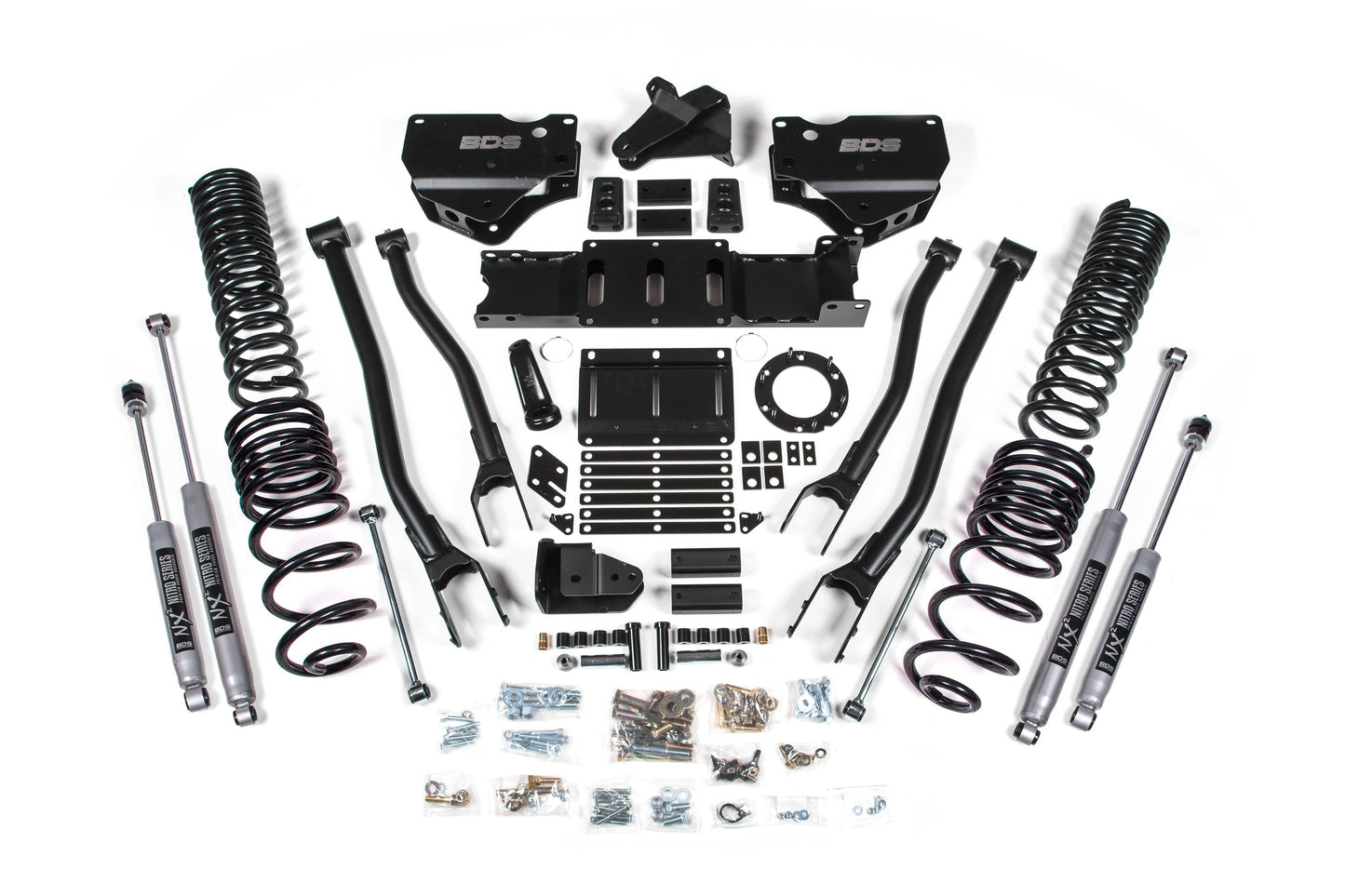

BDS Suspension 4 Inch 4-Link Lift Kit Ram 2500 4WD Gas (2019-2026)

Upgrade the stance, capability, and suspension performance of your truck with the BDS Suspension 4 Inch 4-Link Lift Kit for Ram 2500 4WD gas trucks (2019–2026). Designed for strength, improved suspension geometry, and long-term reliability, this lift system delivers the clearance needed for larger tires while maintaining excellent ride quality on and off the road.

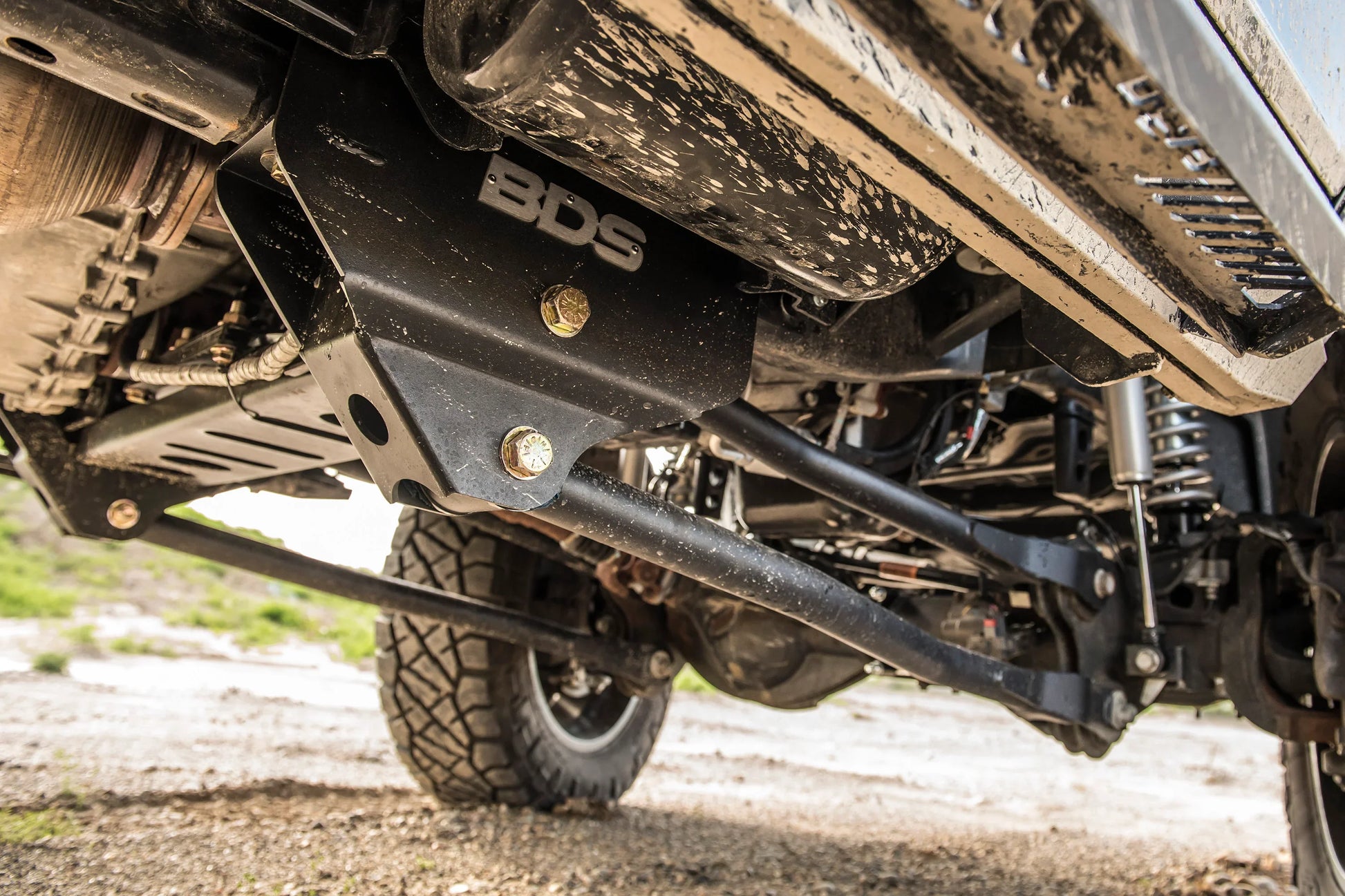

At the front, the system features gas-specific Pro-Ride coil springs and a heavy-duty 4-link conversion, replacing the factory radius arms with stronger upper and lower control arms designed to improve axle positioning and suspension geometry throughout wheel travel. This upgrade provides better handling characteristics, improved caster control, and greater durability for demanding off-road use.

To maintain proper steering geometry at the lifted ride height, the kit includes a forged drop pitman arm and track bar relocation bracket to keep steering angles in phase and recenter the front axle. The system also includes brake line brackets, bump stops, and sway bar corrections to ensure proper suspension operation.

Because of the increased lift height, a transfer case indexing ring and transmission crossmember are included to correct front driveline angles and allow the use of the factory driveshaft.

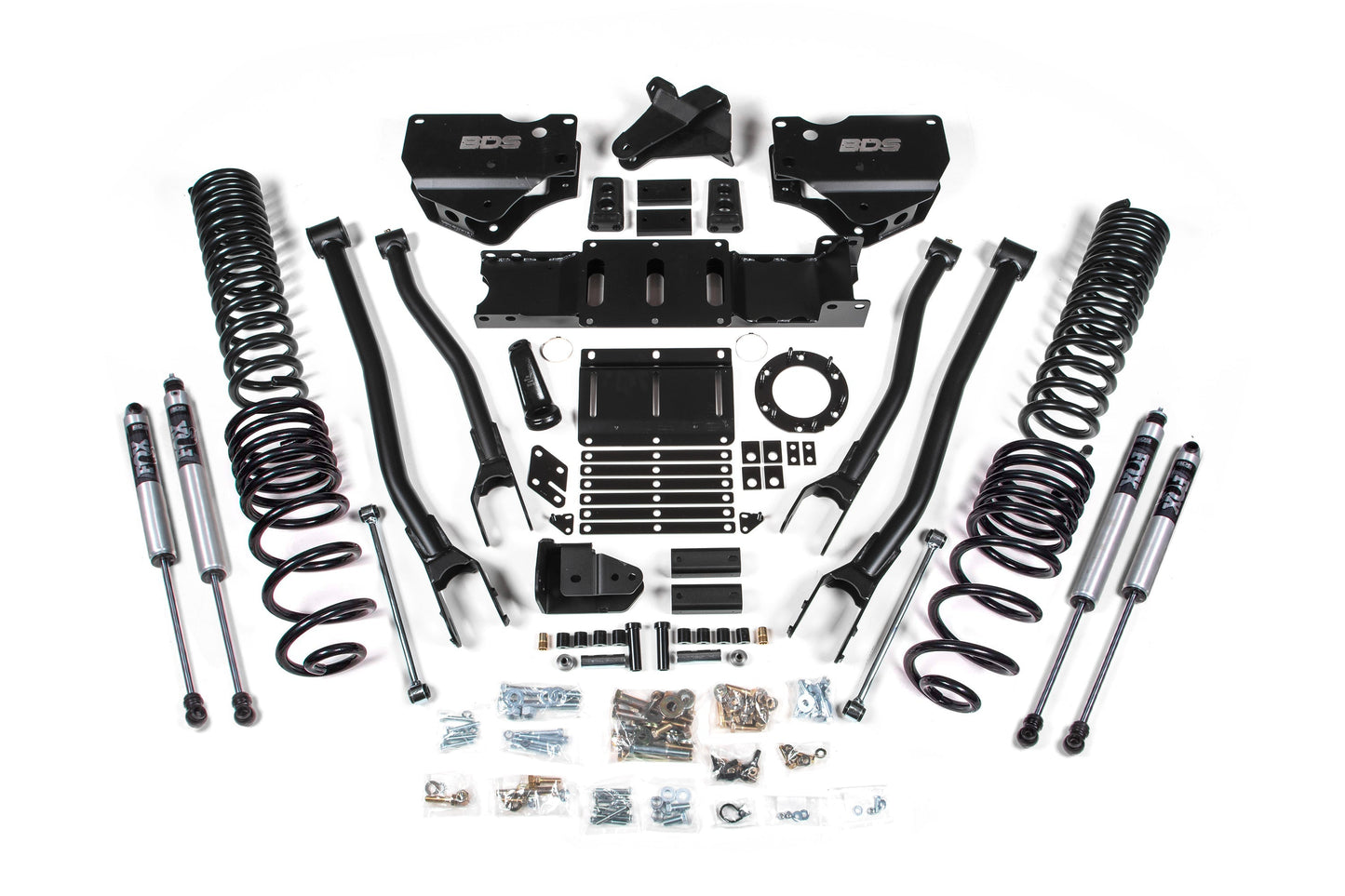

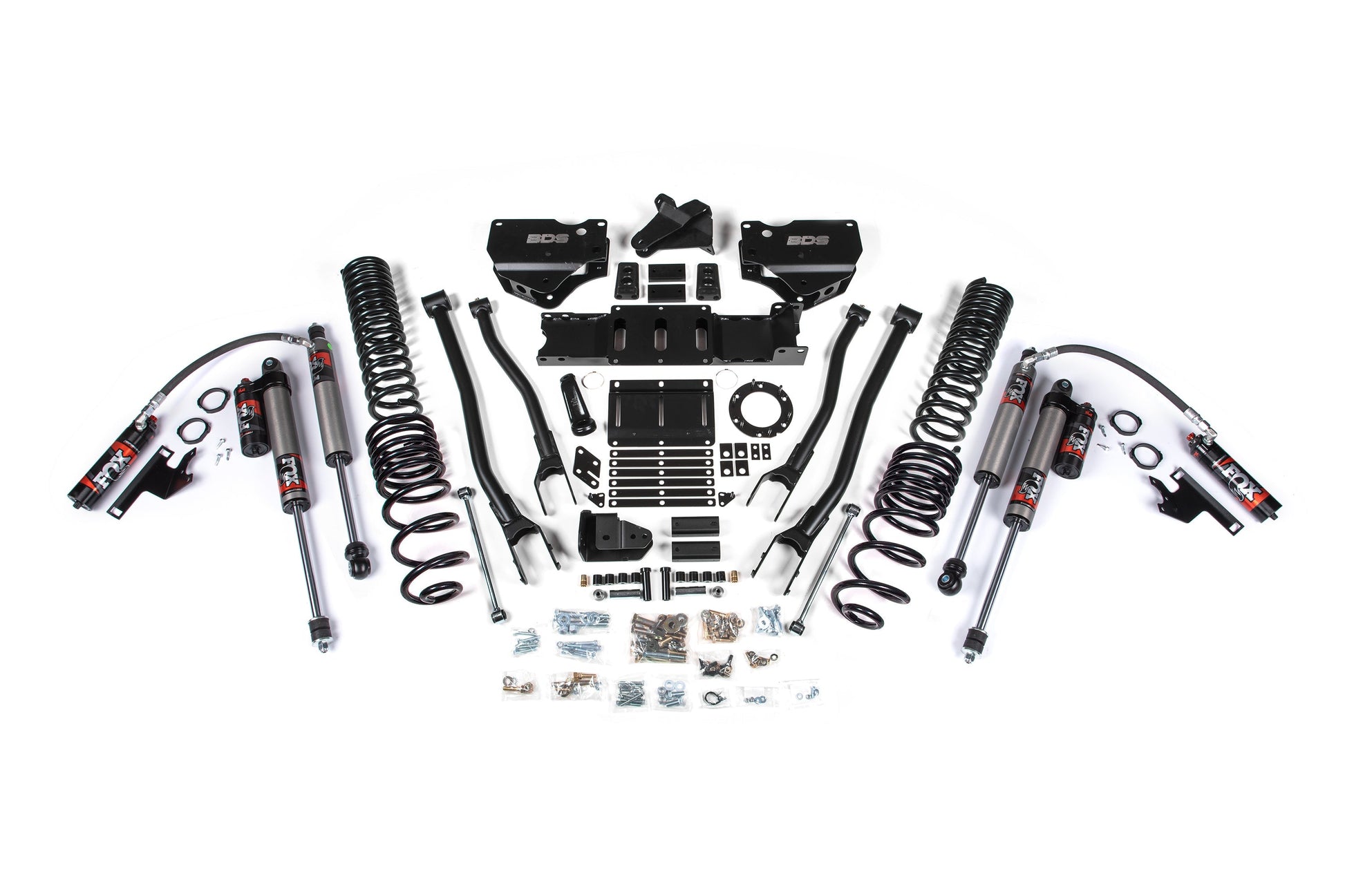

In the rear, the suspension utilizes progressive-rate Pro-Ride coil springs, track bar relocation brackets, bump stop extensions, and sway bar links to maintain proper axle alignment and ride quality. The system is paired with NX2 Nitro Series shocks or optional FOX Performance shocks to deliver improved damping performance and control on rough terrain or highway driving.

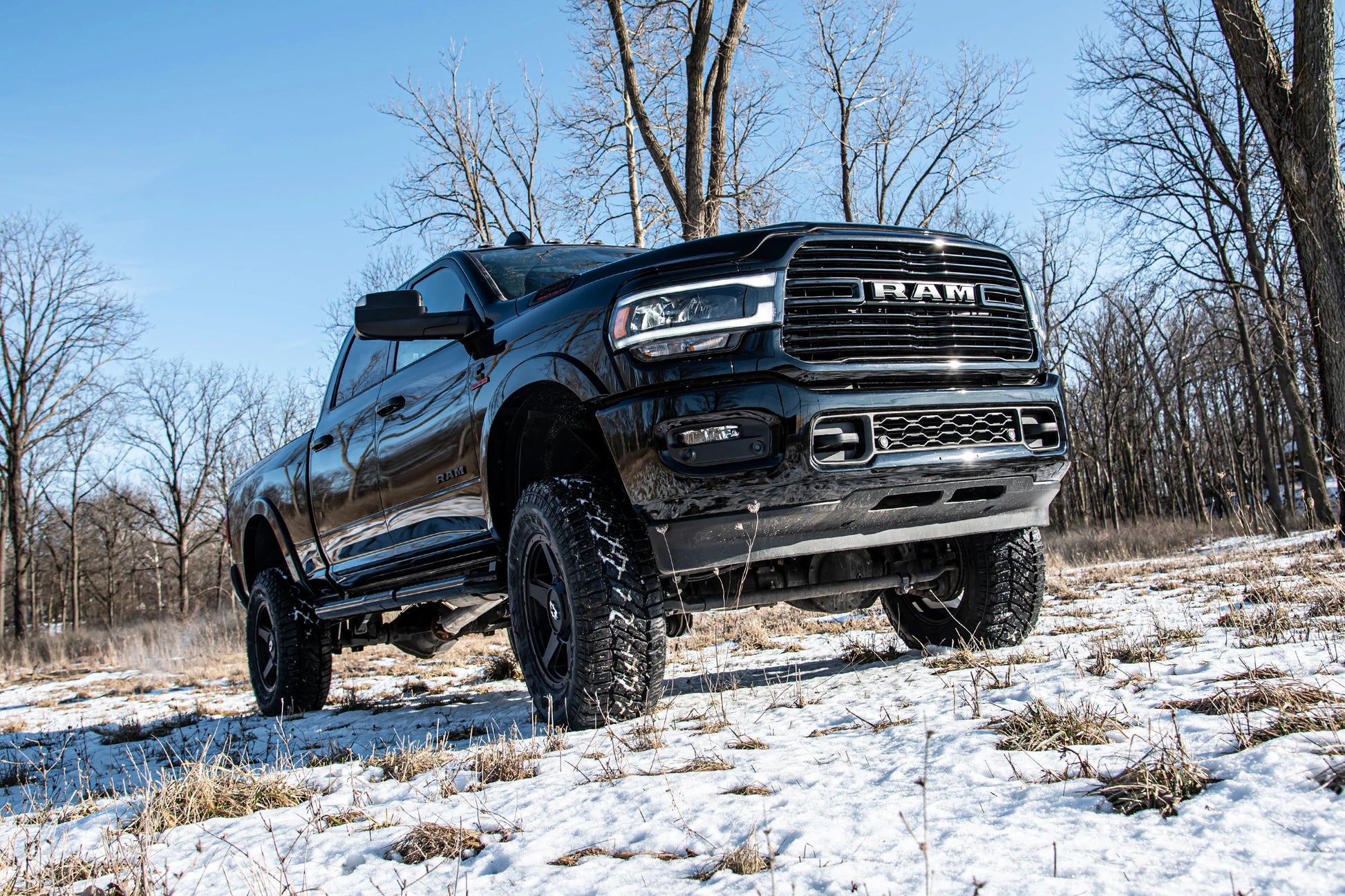

This complete bolt-on suspension system provides clearance for up to 37-inch tires, giving your Ram 2500 a more aggressive stance and significantly improved off-road capability.
