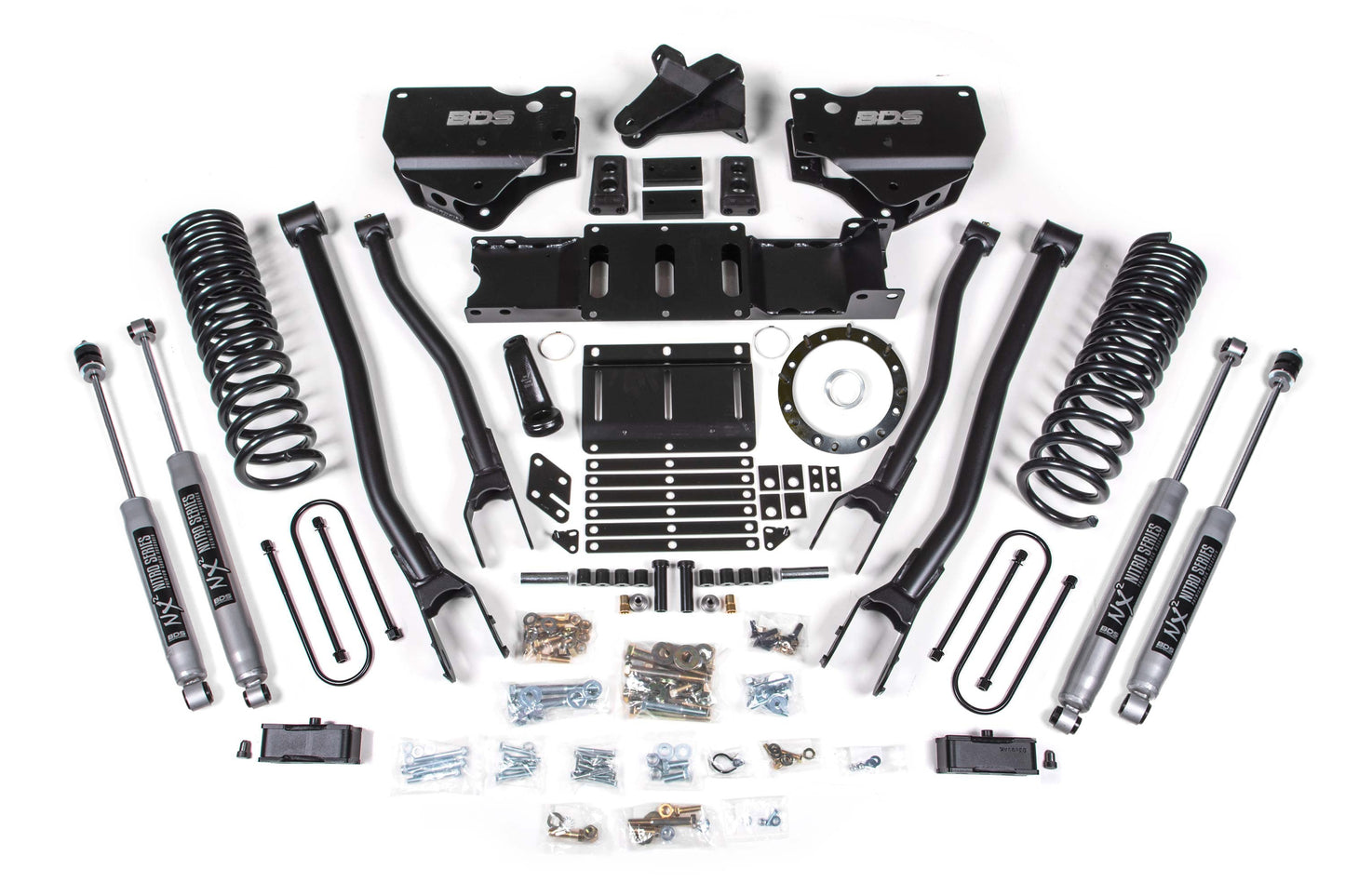

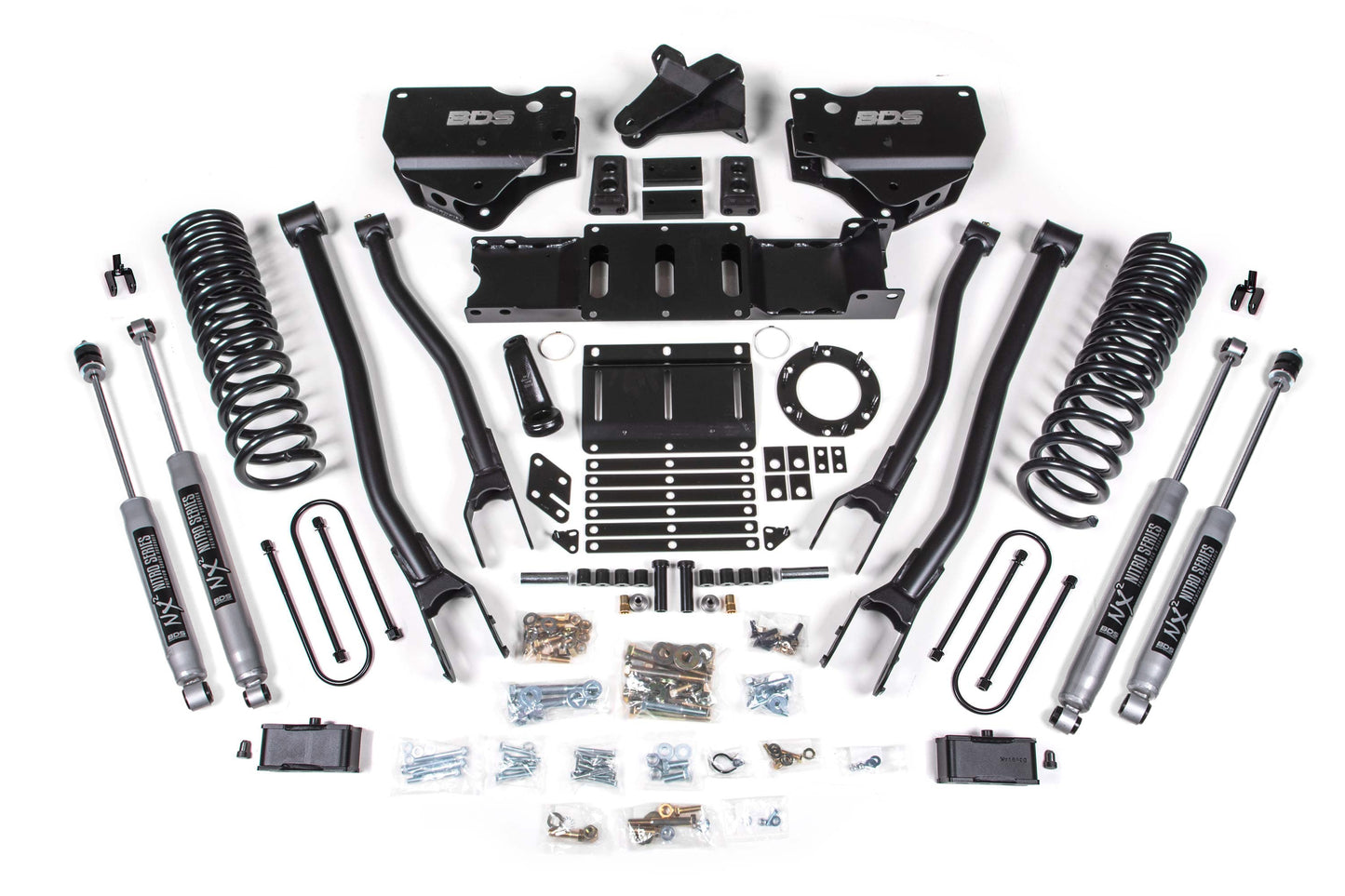

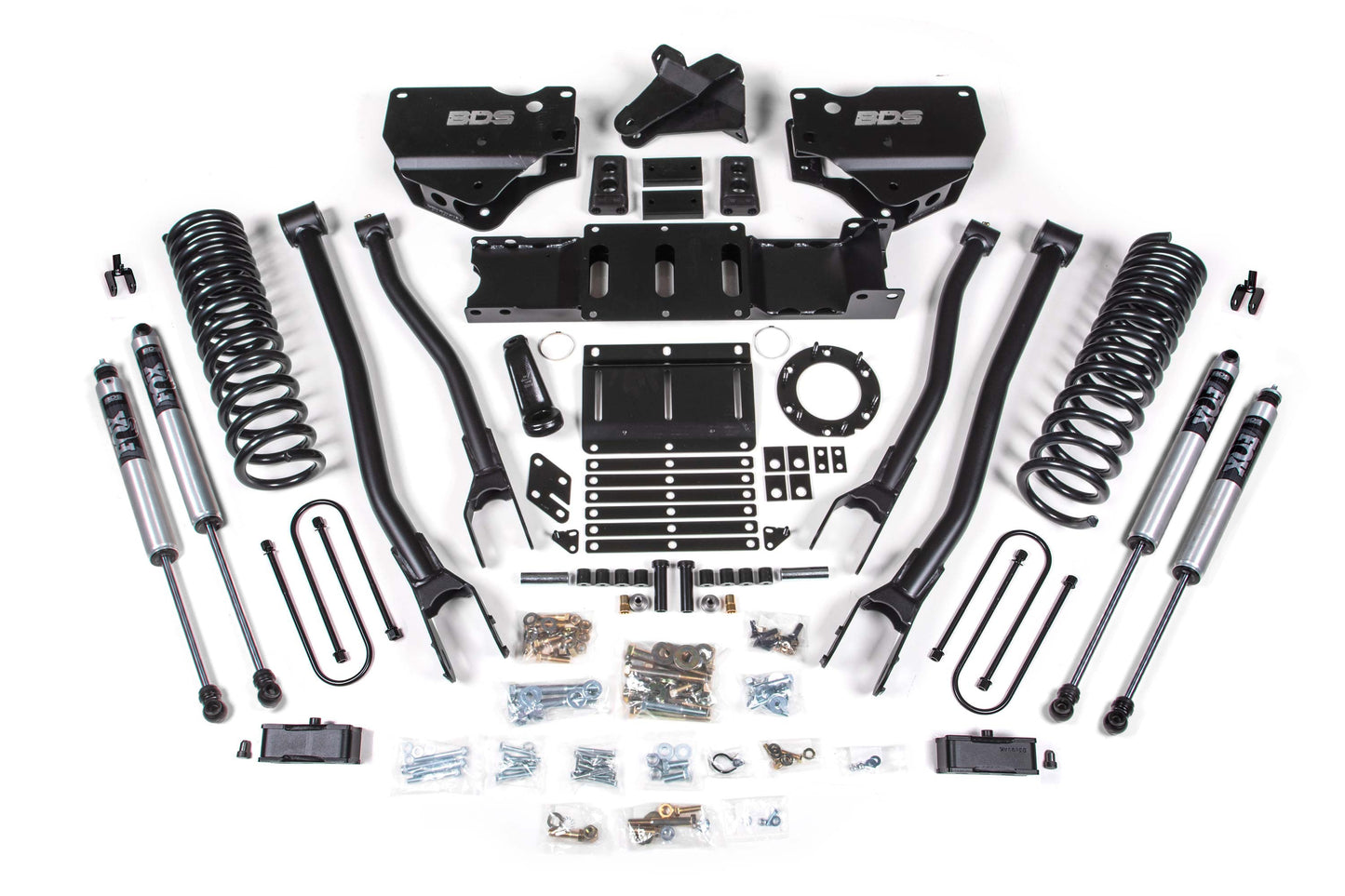

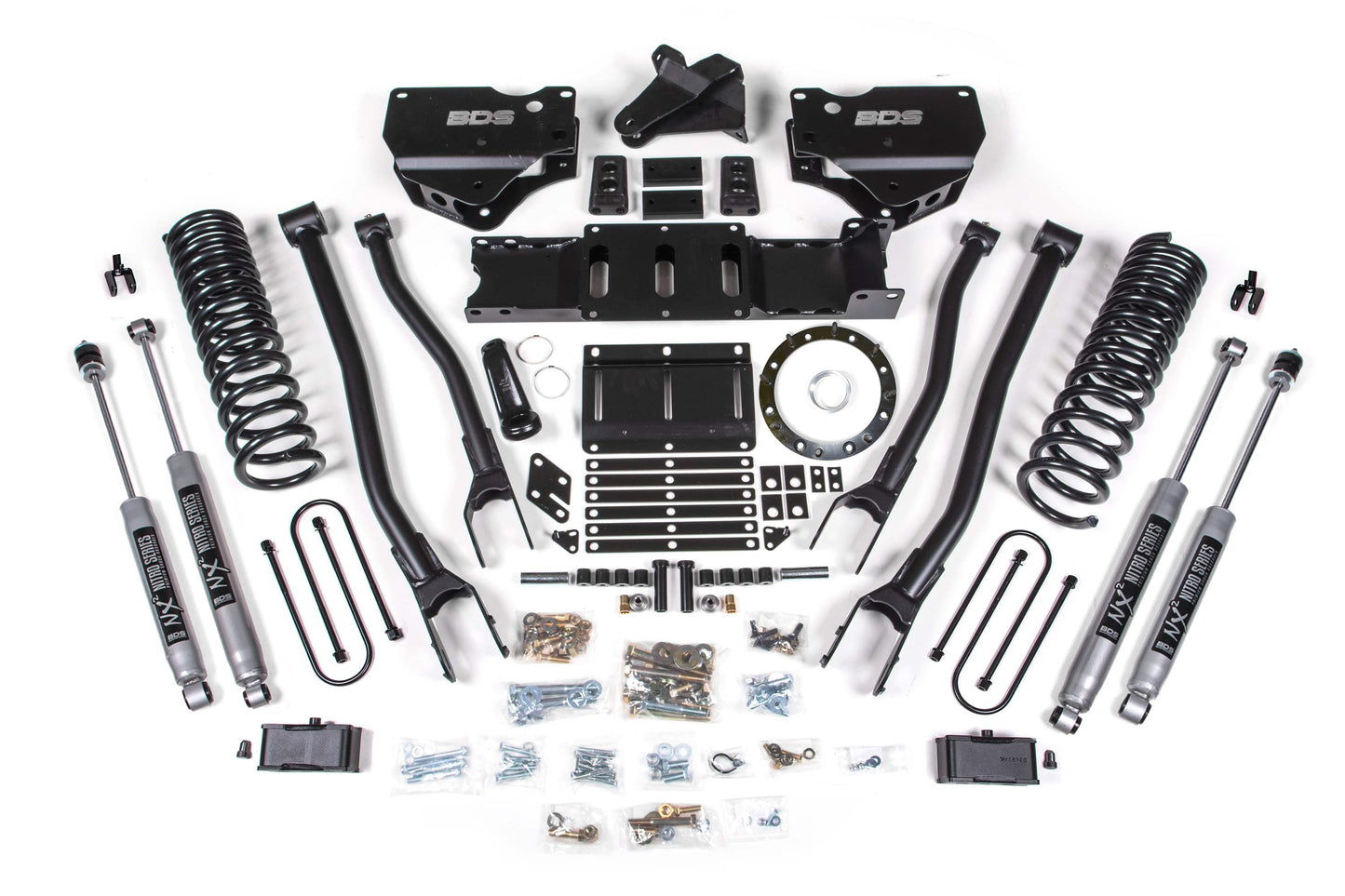

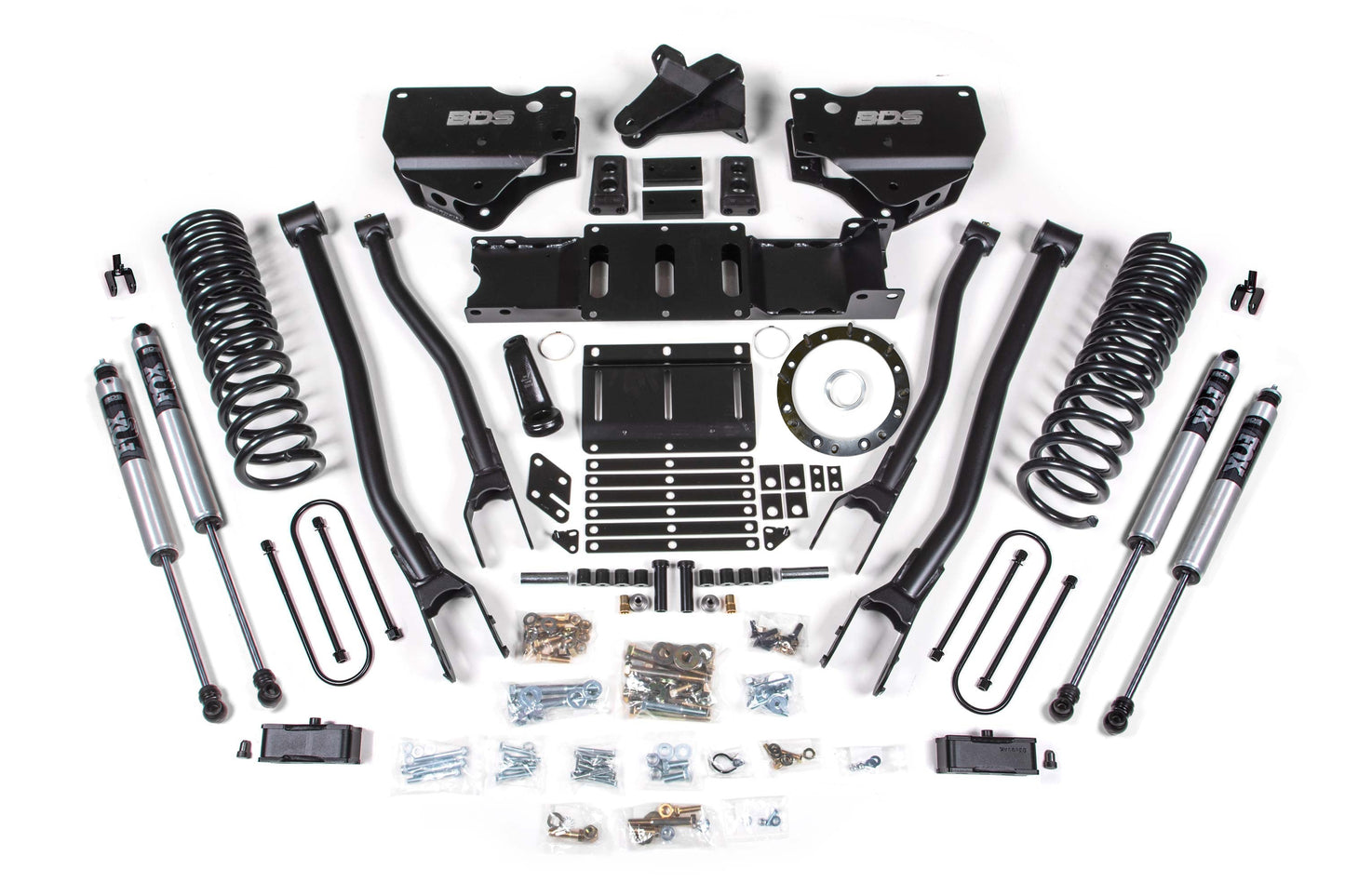

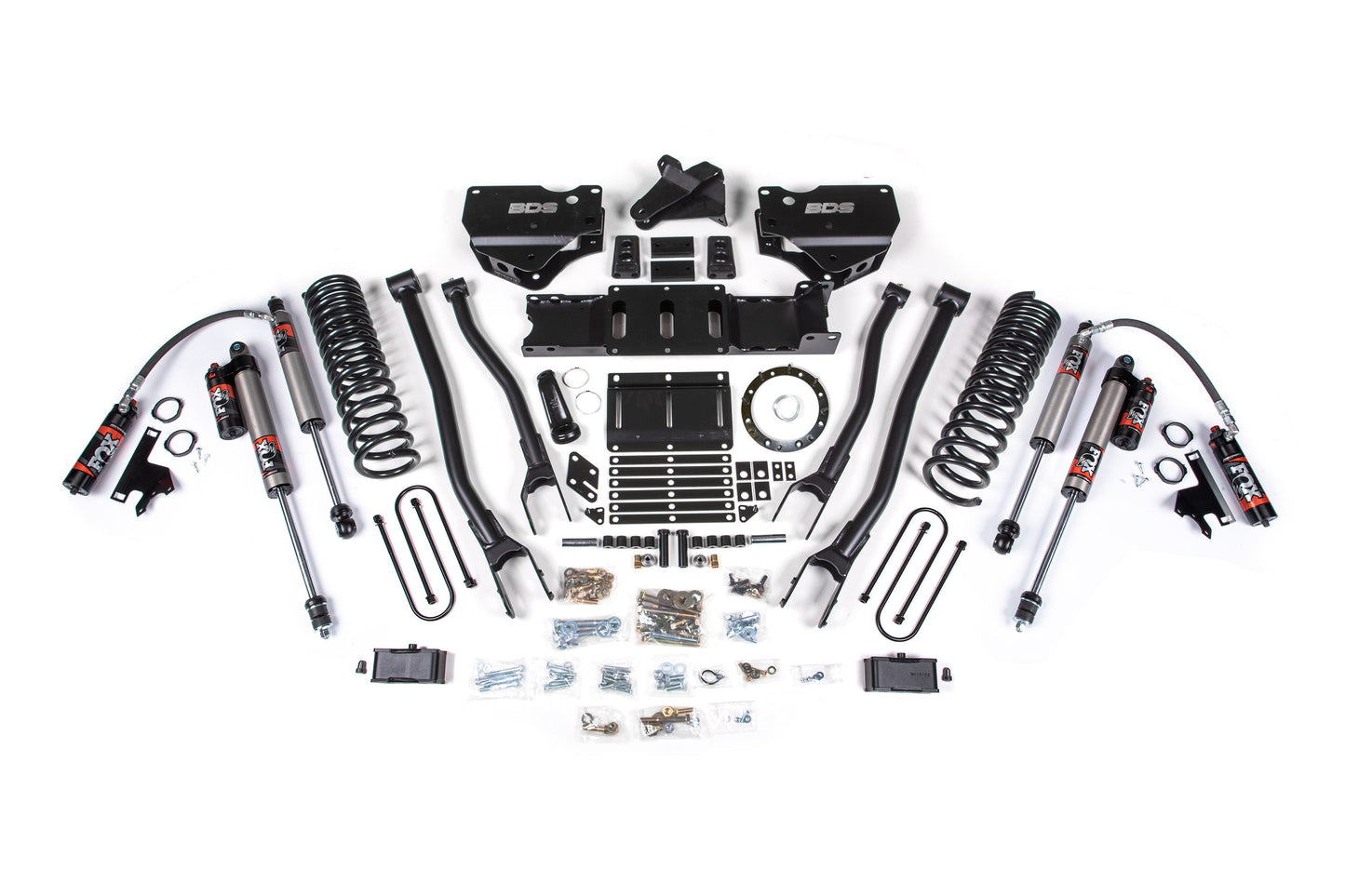

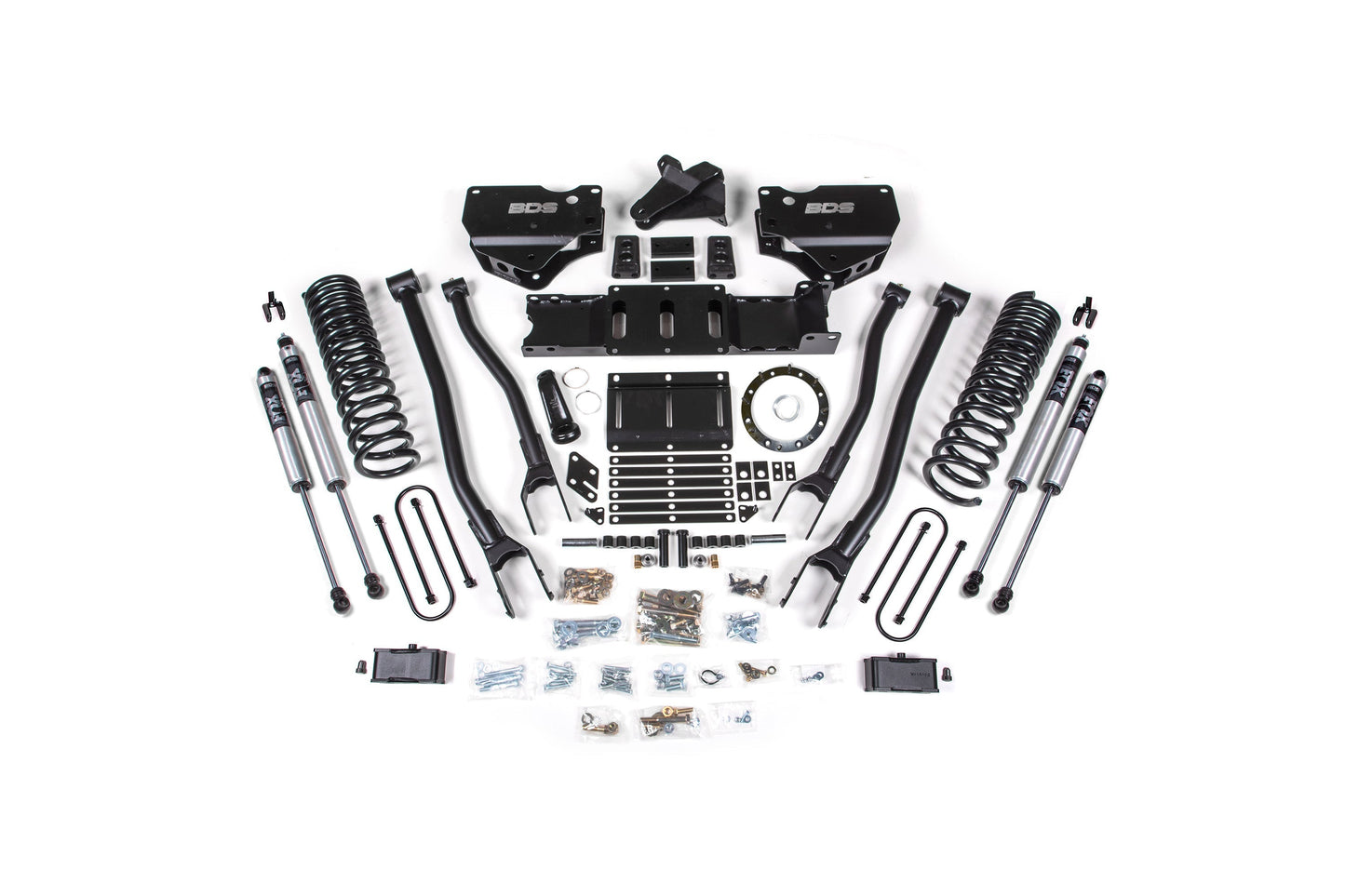

BDS Suspension 4 Inch Lift Kit Ram 3500 4WD Diesel (2019-2024)

Upgrade the capability, stance, and suspension performance of your truck with the BDS Suspension 4 Inch Lift Kit for Ram 3500 4WD diesel models (2019-2024). Designed for improved strength and off-road performance, this premium suspension system includes a heavy-duty 4-link conversion that enhances suspension geometry, handling stability, and overall durability.

Up front, this lift kit features diesel-specific Pro-Ride dual-rate coil springs designed to deliver the proper lift height while maintaining smooth ride quality and predictable suspension performance. The system replaces the factory radius arms with a heavy-duty 4-link conversion, using high-strength steel brackets and control arms to improve axle positioning while reducing caster change throughout suspension travel.

To correct steering geometry after lifting, the system includes a forged drop pitman arm and track bar relocation bracket to maintain proper steering angles and keep the axle centered during suspension movement. Additional components such as sway bar relocation brackets and brake line brackets ensure proper suspension operation after installation.

In the rear, this kit utilizes high-strength fabricated lift blocks and longer u-bolts designed to maintain proper pinion angle while achieving the desired lift height. The system is paired with NX2 Nitro Series shocks, delivering improved ride comfort, durability, and off-road control.

To maintain proper driveline alignment after lifting, the kit includes an 8-bolt transfer case indexing ring and heavy-duty transmission crossmember, allowing continued use of the factory driveshaft while correcting driveline angles.

With clearance for up to 37-inch tires, this BDS Suspension lift kit provides Ram 3500 owners with improved off-road capability, stronger suspension components, and a more aggressive lifted stance.
