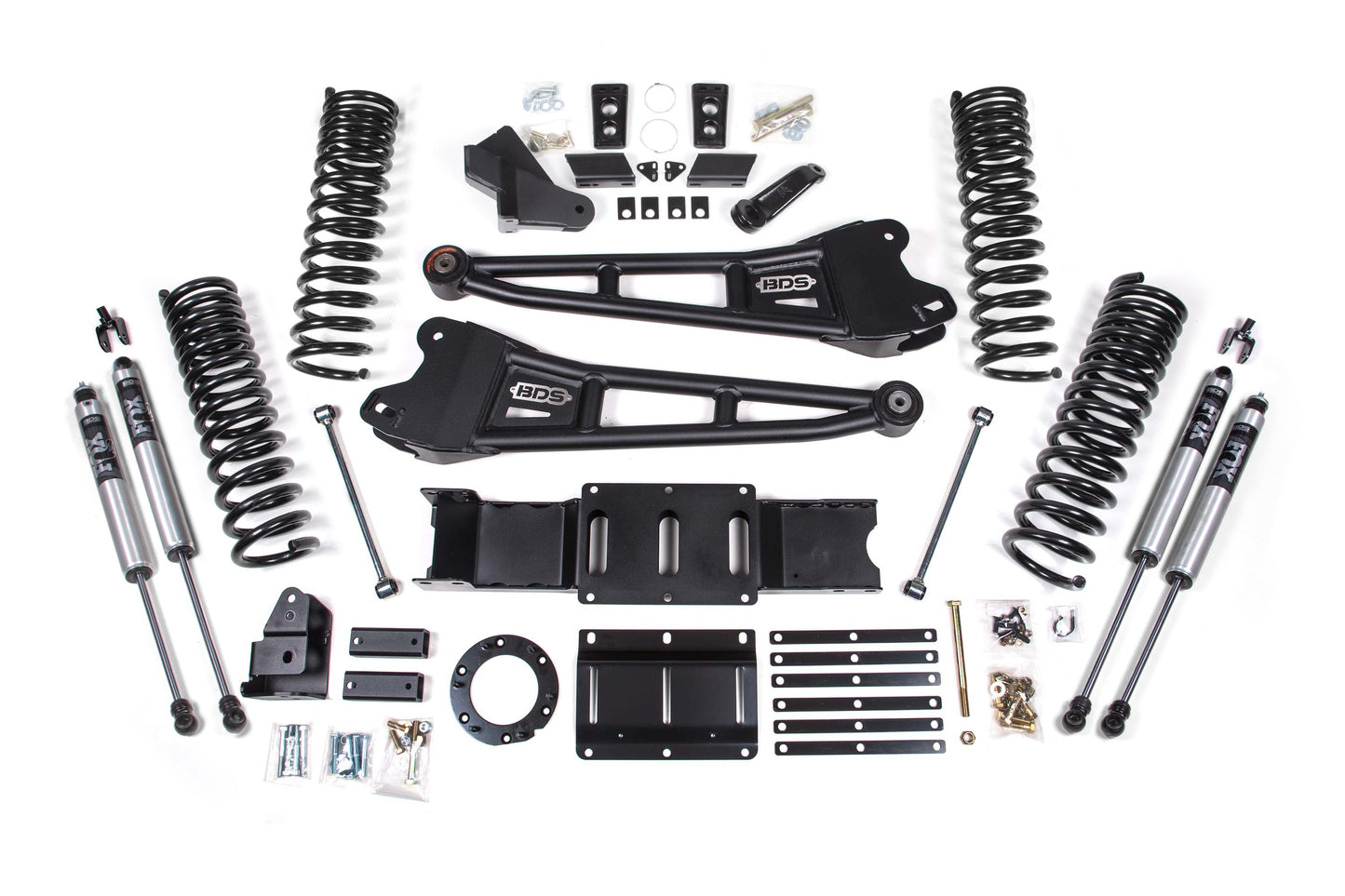

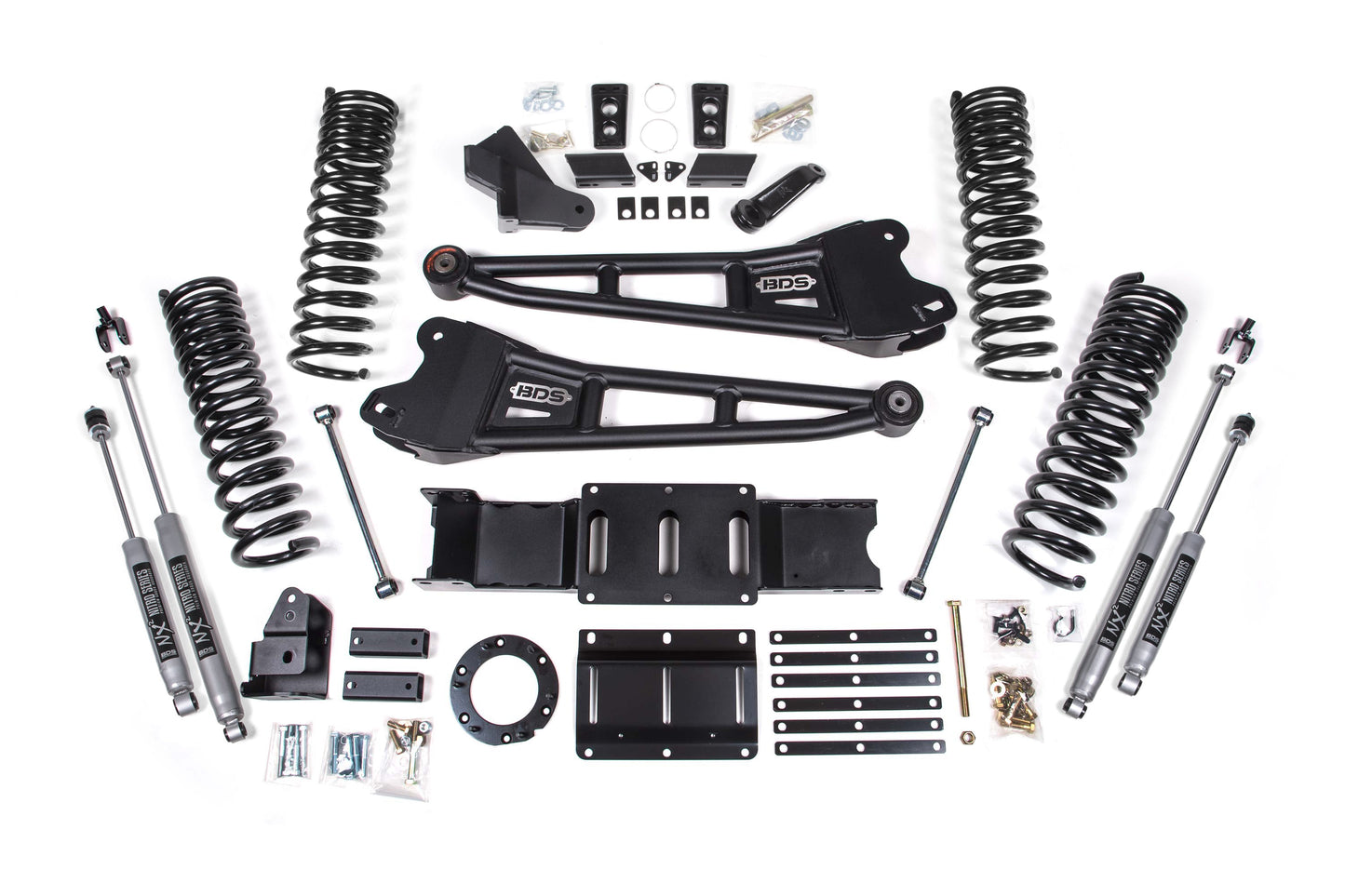

BDS Suspension 6 Inch Radius Arm Suspension Lift Kit Ram 2500 4WD Diesel (2019–2024)

Upgrade the capability, stance, and off-road performance of your 2019–2024 Ram 2500 4WD diesel truck with the BDS Suspension 6 Inch Radius Arm Lift Kit. Designed for serious off-road performance and daily driving reliability, this suspension system increases ground clearance and allows clearance for up to 37-inch tires while maintaining excellent ride quality and steering control.

The front suspension system features diesel-specific Pro-Ride progressive rate coil springs paired with heavy-duty tubular replacement radius arms. These high-strength radius arms improve durability while allowing caster adjustment to maintain proper suspension geometry after lifting the truck. To further correct steering angles and maintain stable handling, the system includes a forged drop pitman arm and track bar relocation bracket, ensuring the front axle remains properly centered throughout suspension travel.

Because of the increased lift height, the kit includes a transfer case indexing ring and heavy-duty transmission crossmember to correct driveline angles and retain use of the factory front driveshaft. In the rear, progressive rate Pro-Ride coil springs, bump stop extensions, sway bar links, and a track bar relocation bracket are used to maintain proper axle positioning and ride quality.

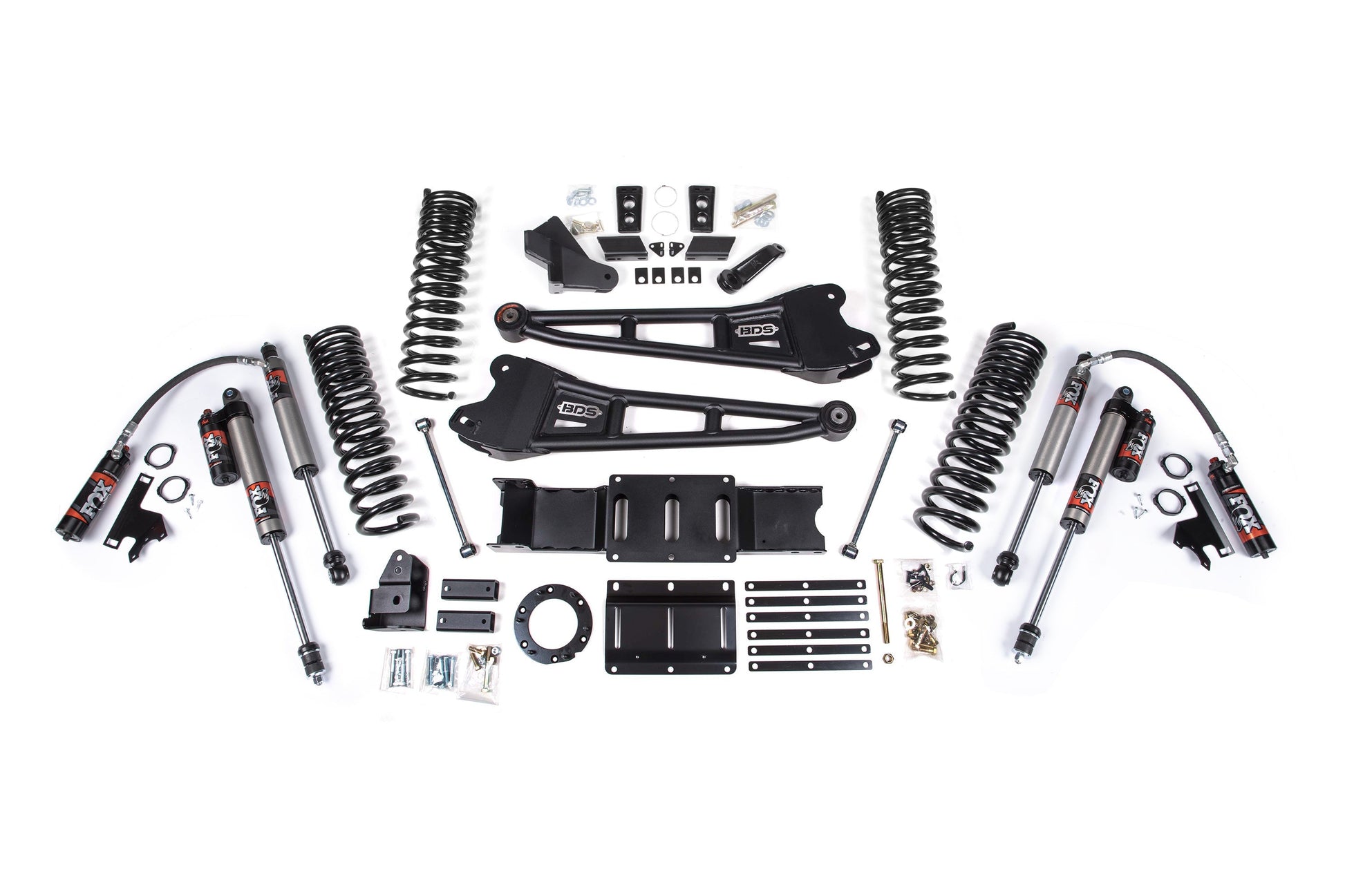

The system is paired with BDS NX2 Nitro shocks featuring nitrogen-charged twin-tube construction and velocity-sensitive valving for improved damping performance and control. Optional FOX Performance Series shocks are also available for drivers seeking enhanced off-road capability.

Engineered as a complete bolt-on suspension system, this BDS lift kit provides the strength, durability, and performance required for lifted diesel trucks used both on-road and off-road.
