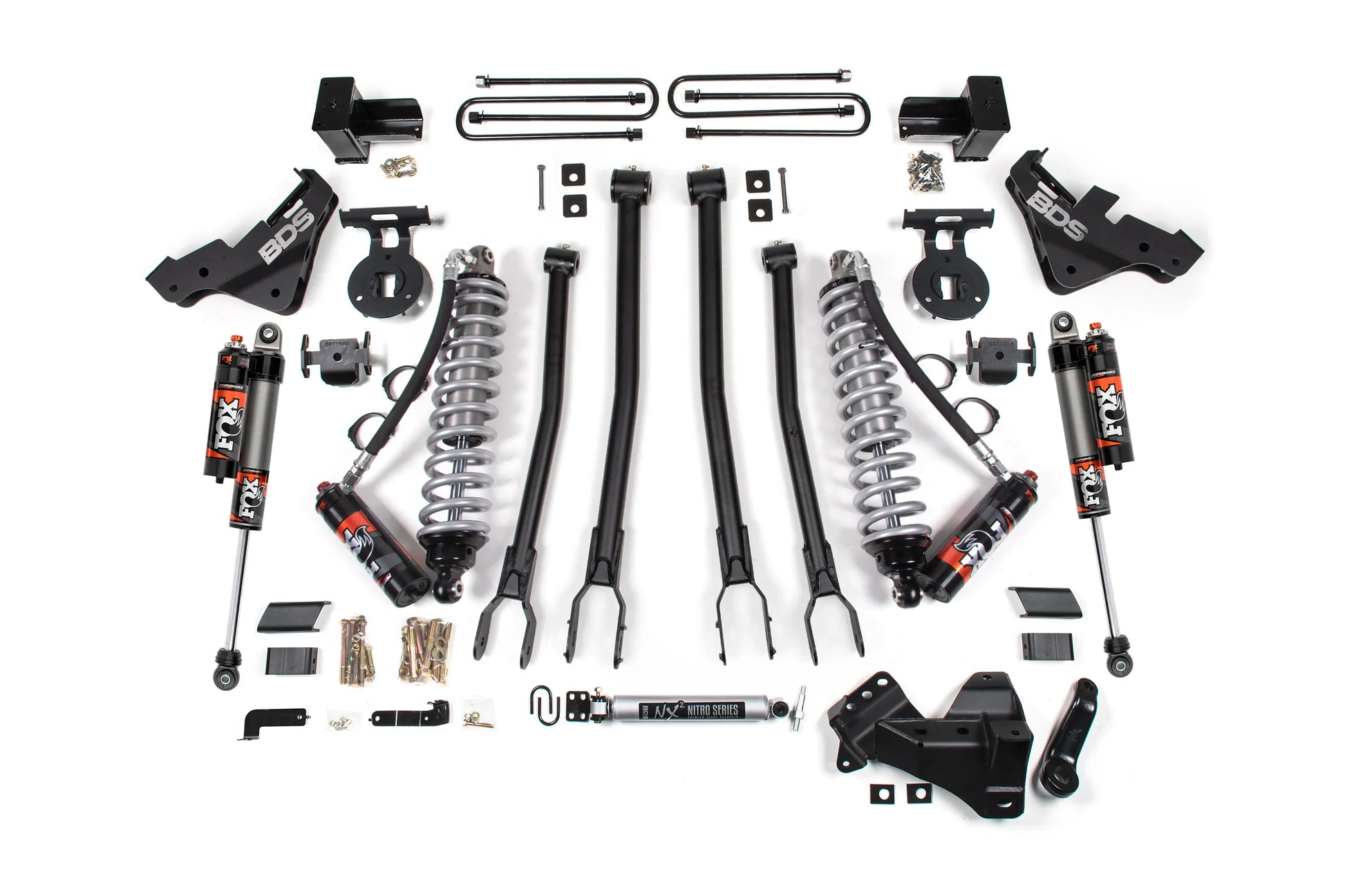

BDS Suspension FOX Performance Elite 5 Inch 4-Link Coilover Lift Kit Ford F350 Super Duty DRW 4WD Diesel (2023-2026)

Take your heavy-duty truck to the next level with the BDS Suspension 5 Inch 4-Link Coilover Lift Kit featuring FOX 2.5 Performance Elite shocks for the Ford F350 Super Duty DRW 4WD Diesel (2023–2026). Designed specifically for dual rear wheel Super Duty trucks, this premium suspension system delivers improved suspension geometry, enhanced ride control, and serious off-road capability while allowing clearance for up to 37-inch tires.

At the front of the suspension, BDS replaces the factory radius arms with a heavy-duty 4-link conversion system designed to improve handling, stability, and caster control throughout suspension travel. High-strength upper and lower control arms mount to precision-engineered steel brackets to properly position the axle and maintain correct suspension geometry.

The system is equipped with FOX 2.5 Performance Elite coilover shocks with DSC dual-speed compression adjusters. These race-inspired coilovers feature remote reservoirs that increase fluid capacity and cooling efficiency while allowing precise tuning of both high-speed and low-speed compression damping. This provides superior performance for both highway driving and demanding off-road conditions.

To maintain proper steering geometry at the lifted ride height, the system includes a forged drop pitman arm and track bar relocation bracket. These components keep the front axle centered and ensure correct steering angles throughout suspension travel.

Because of the increased lift height, the kit includes a transfer case indexing ring and high-clearance transmission crossmember to properly correct front driveline operating angles and allow continued use of the factory driveshaft.

In the rear, the system uses fabricated steel lift blocks, extended U-bolts, brake line brackets, and FOX 2.5 Performance Elite remote reservoir shocks to provide a balanced stance and consistent suspension performance.

Built with the durability and engineering BDS Suspension is known for, this lift kit delivers improved suspension articulation, high-performance damping control, and the aggressive lifted stance Ford Super Duty dually owners demand.
