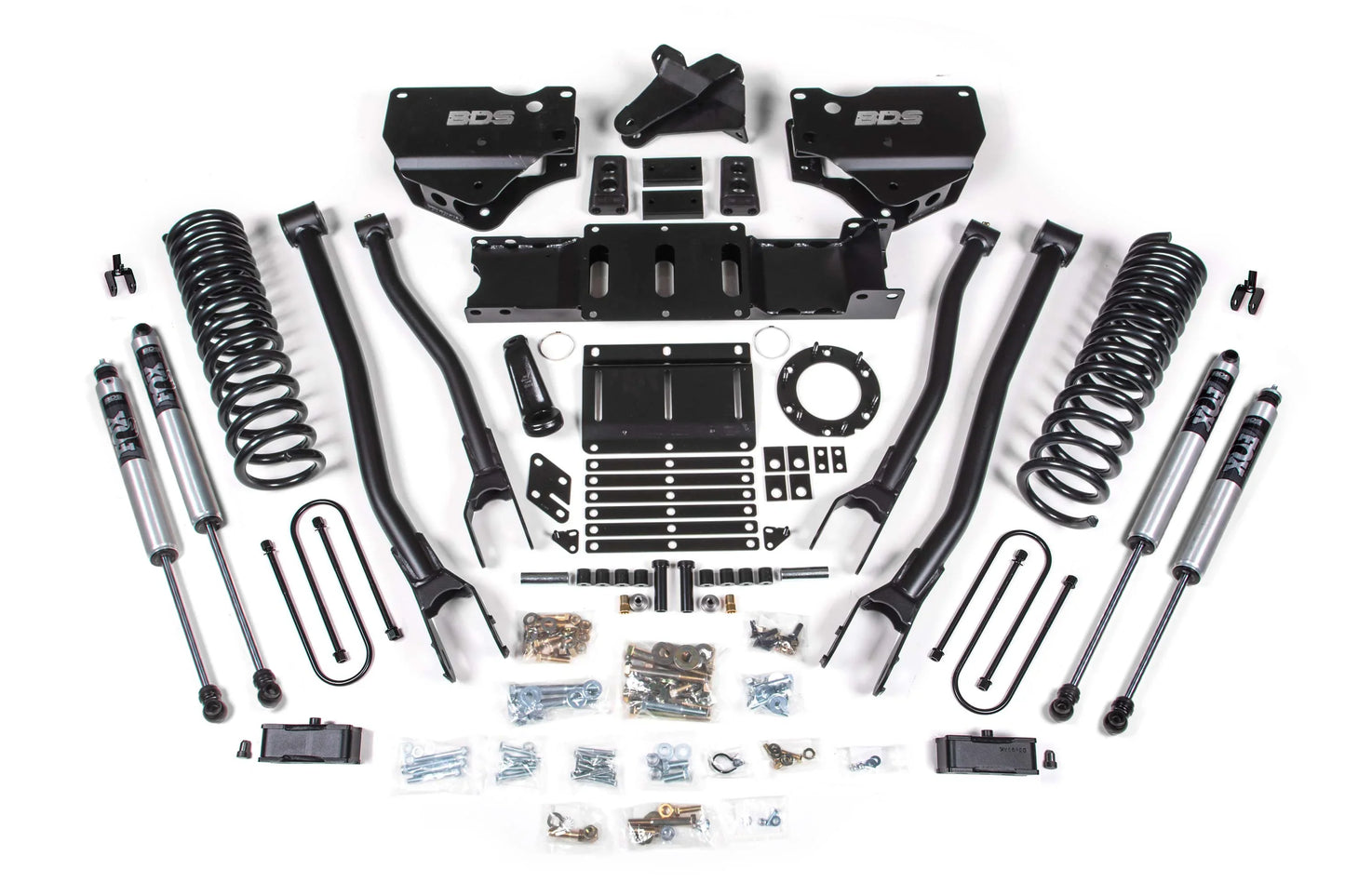

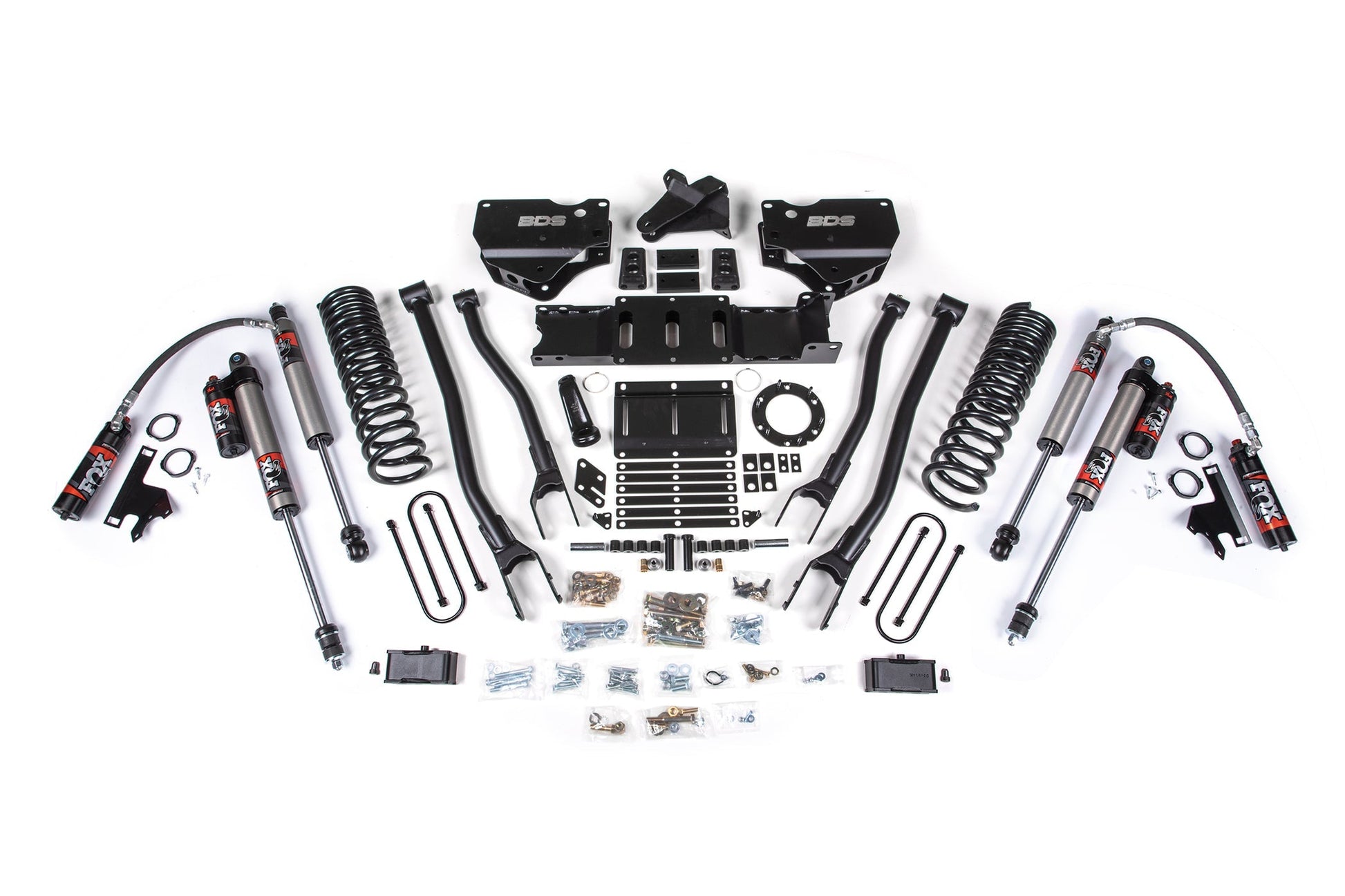

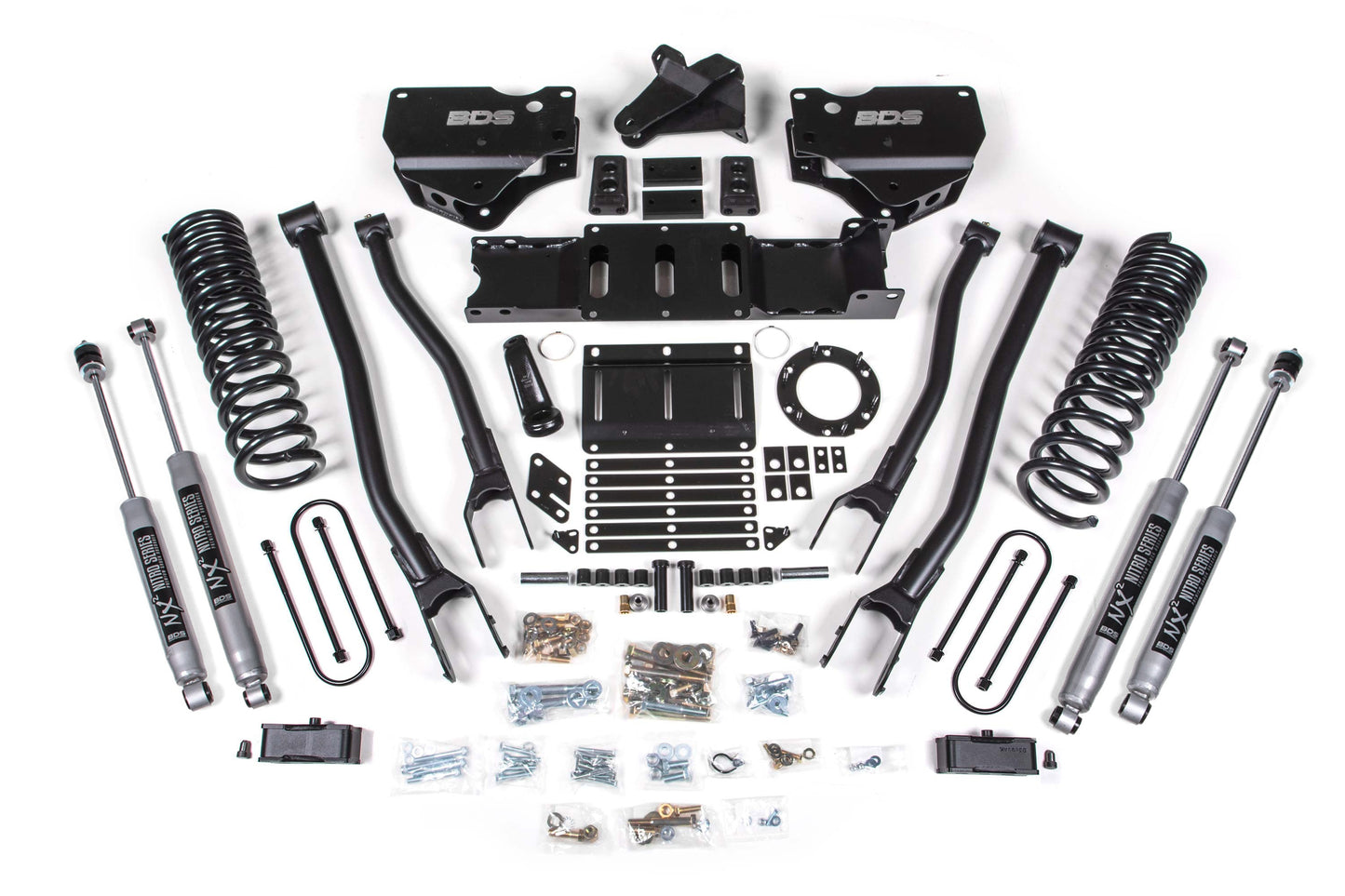

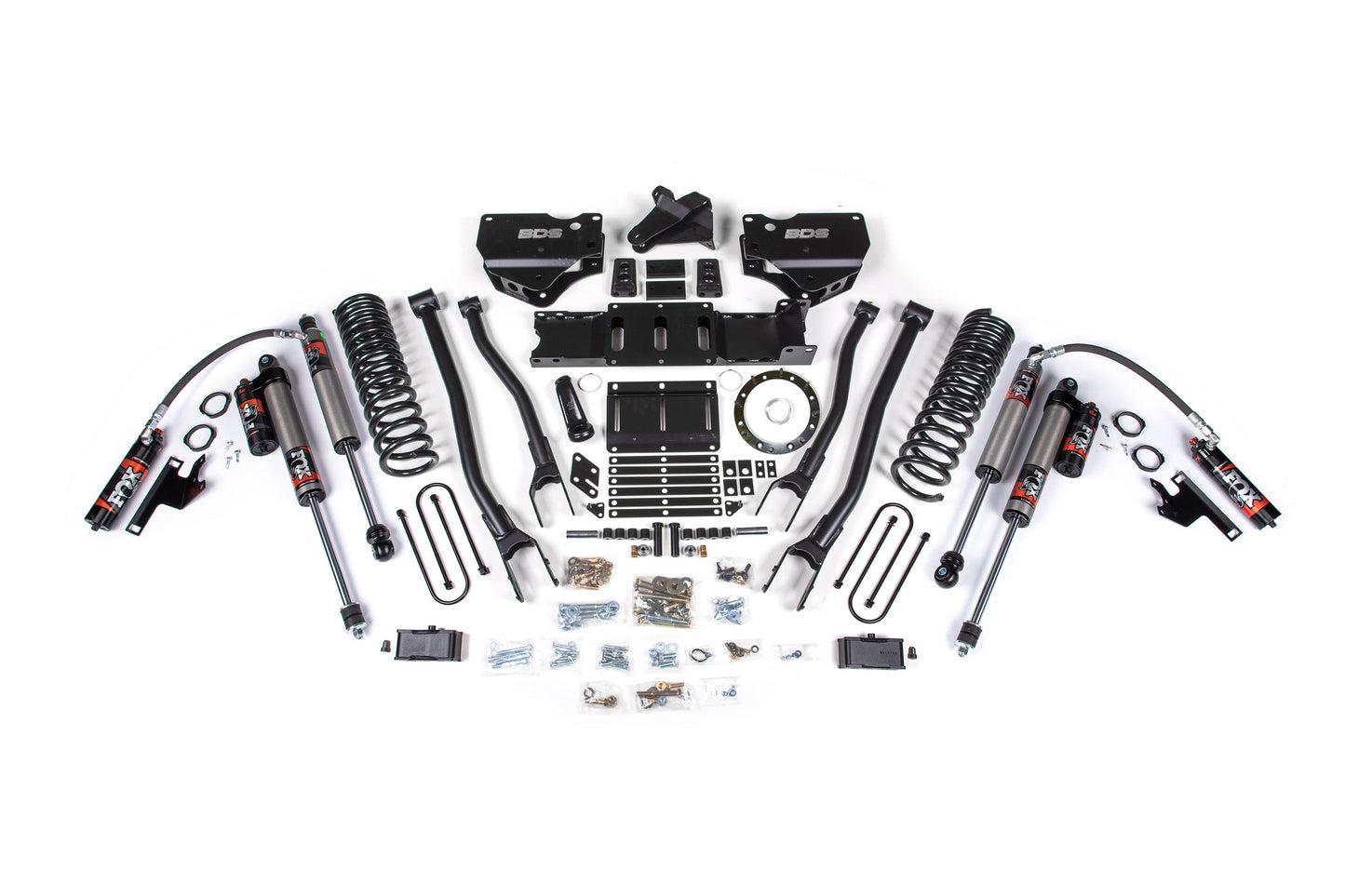

BDS Suspension NX2 Series 4 Inch 4-Link Lift Kit Ram 3500 4WD Gas (2019-2023)

Upgrade the stance, suspension geometry, and overall capability of your heavy-duty truck with the BDS Suspension NX2 Series 4-Inch 4-Link Lift Kit for the 2019–2023 Ram 3500 4WD Gas. Designed specifically for gas-powered Ram trucks, this system improves ride quality, steering correction, and off-road performance while providing clearance for up to 35-inch tires.

At the core of this system is the BDS 4-link conversion, replacing the factory stamped radius arms with a stronger and more stable suspension design. Heavy-duty upper and lower control arms mount to precision-engineered high-strength brackets to improve axle positioning while maintaining proper caster throughout suspension travel. This results in better handling, improved durability, and more predictable suspension movement both on and off road.

Gas-specific Pro-Ride dual-rate coil springs provide the correct lift height while maintaining a smooth ride across varying terrain. Steering geometry is corrected with a forged drop pitman arm and track bar relocation bracket, helping maintain proper steering alignment and keeping the front axle centered under the vehicle.

To properly address driveline angles created by the lift height, BDS includes a heavy-duty transmission crossmember and a 6-bolt transfer case indexing ring. This allows the factory front driveshaft to remain in use while ensuring correct driveline geometry.

In the rear, the system utilizes a lift block setup with longer U-bolts designed for Ram 3500 trucks equipped with factory rear overload leaf springs. Completing the kit are BDS NX2 Nitro Series gas shocks, engineered to improve ride control, stability, and overall suspension performance.

Built with the durability and engineering BDS Suspension is known for, this lift kit delivers improved handling, stronger suspension geometry, and the aggressive lifted stance Ram truck owners expect.
